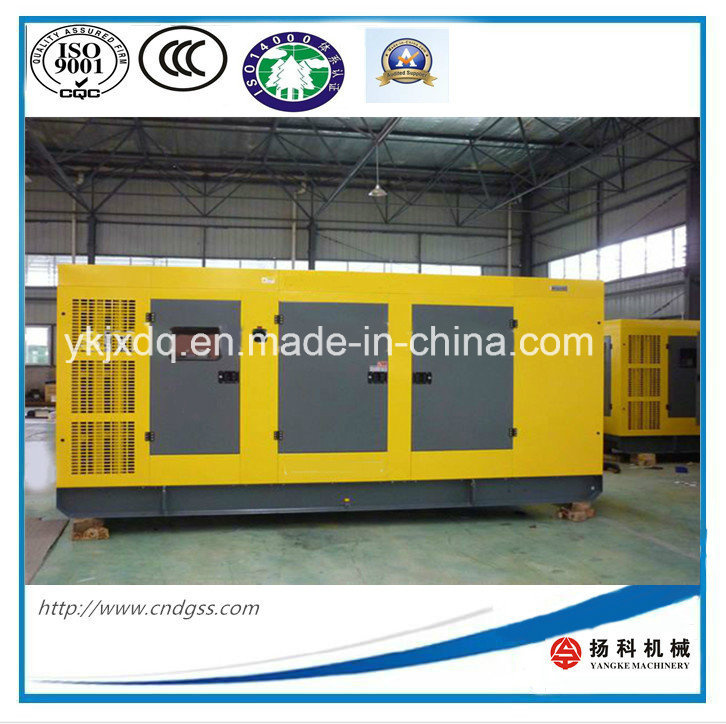

Weichai Engine 150kw/187.5kVA Soundproof Diesel Generator

1. Original WEICHAI  engine
2. Best Price
3. One year Guaranty
4. Low fuel consumption
5. High quality ,work in every kind conditions
6. New and excellent cooling system with condensation


Our Advantages
1. High pressure pipes for diesel input-outlet
2. Stronger heavy duty rubber anti-vibration mountings
3. All base fuel tank Baking paint
4. All canopy powder coating (Powder type - 3 years durable, longer service life and less color fading)
5. Maintenance free battery and high quality battery charger
6. High standard wiring and brands (Chint/Delixi) relays, indicators, fuse breaker, meters etc.
7. Non-return Valve equipped
8. Turbo charger protection, moving parts protected and other CE standards (depends on required)
9. ONE Hour Testing for all genset (0%-25%-50%-75%-100%-110% loading)
10. Make sure the Fastest Delivery Time
11. Reliable Quality and Aftersale Services as committed
12. Excellent Quality Control and Pre-shipment Inspection
(All base frame, fuel tank, canopy, ATS cabinets etc are produced in Tangpower factory zone to avoid any  out-off-controlled quality problems.

Engine feature
→Diesel, heavy-duty, four stroke, water cooled and direct injection fuel system
→24V D.C starter and charger alternator
→Industrial capacity exhaust silencer supplied loose with flexible section
     and mating connections
→ Set mounted tropical duty radiator
→Engine driven cooling fan with protection guard
 →Steel wire braided fuel lines, vent and rain fittings
→Set mounted acid battery installed with leads and terminals

Alternator feature
Brushless self excited, single bearing, 4 poles
Class H insulation
IP23 protection standard
Self-exciting and self-regulating
Automatic voltage regulator (AVR)

Control system
manual / auto start and protection module
Equipped with ComAp AMF20 controller
New integrated controllers in manual and remote start application, featuring full gen-set monitoring and protection. It is equipped with a powerful graphic display, Icons, symbols and bar graphs for intuitive operation together with high functionality set new standards in gen-set control. Special low temperature version is also available, allowing the display to work up to -30°C.

Accessories
1) Standard accessories
Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, Non-return valve(imported from ITALY),Shock Pad,exhaust silencer, battery and connecting wires, Standard tools kit, operation manual and document.
2) Optional accessories
Engine coolant and oil heater,  cooling for heat exchanger, communication interface, battery charger by main supply, ATS and paralleling system, soundproof canopy

he main parameters of the set
The model of the unit:	QSWF-150GF
Power:	150KW
Rated voltage:	400V
Rated current:	270A
Rated frequency:	50Hz
The factor of rated power	COS=0.8lagging
The regulating rate of steady voltage:	≤1%
The regulating rate of instantaneous voltage:	-15%~ +20%
The time of steady voltage:	≤1.5sec
The waving rate of voltage:	≤1.0%
The regulating rate of steady frequency:	≤3%
The regulating rate of instantaneous frequency:	≤±10%
The time of steady frequency:	3sec
The waving rate of frequency:	≤1%
Displacement (L):	3.613
The waste of fuel with full load:	≤254.3g/kwh
Lube-oil consumption (L):	20
The main parameters of the diesel engine
Brand:	Weichai
Model:	R6113ZLD
Type:	four strokes, waste gas turbine boost,direct spurting type
Cylinder:	6 cylinders
Cooling way:	water cooling
Rotating speed:	1500r/min
The regulation of rotating speed:	mechanical speed regulator
Starting way:	DC24V\ starting with electricity
The main parameters of the generator
Brand:	Kaijieli(China-French joint venture Leory Somer technology)copy Stamford type
Model :	TWGII274FC
Type:	Brushless ,Self-excite, AVR automatic voltage regulating
The connecting way of the phase:	three phases four lines
Insulation degree:	H degree
Enclosure degree:	IP22

Packaging & Delivery

Packaging Detail:	generator standard exporting package
Delivery Detail:	within 5-25working days after the deposit


Company Information

Yangke Machinery Electric is a high-tech generator manufacturer which contains R&D, production and marketing together.

Our company not only establishes humanized modern enterprise with perfect quality management system and certification authority, but also equipped with international advanced facilities of R&D, manufacture and test. The concept of our company is to develop the best product, to provide the best service. We will spare no effect to serve our customer with products of high quality and after-sales service in a variety of ways.


With the help of the technical strength, our company has formed a structure of product series. The current main products are: QS series 8-3000KVA brushless alternators, which can be coupled with both domestic and foreign brands of diesel engines.


We only offer products using major engine brands such as Cummins, Doosan, MTU Diesel/Mitsubishi etc. At YANGKE, we also customize the standard models to meet your unique requirements. Our Generators are also top of the line and come with base mounted fuel tanks, battery, battery rack and cables, vibration isolators between engine/diesel generator and base frame, a circuit breaker to protect the generator from overload and a two-wire auto start ready controls for automatic transfer switch operation. (Note: Automatic Transfer Switch Required for True Auto Operation).
Our products are sold to Southeast Asia, central Asia, the Middle East, Africa and South America.


 Sales promises:
YANGKE power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested.
Warranty is according to our standard conditions :
a. 15months,counted on the day YANGKE sold to the first buyer;
b. one year after installation;
c.1000running hours(accumulated),subject to the earlier one.
Service and parts are available from YANGKE POWER or distributors in your location.
