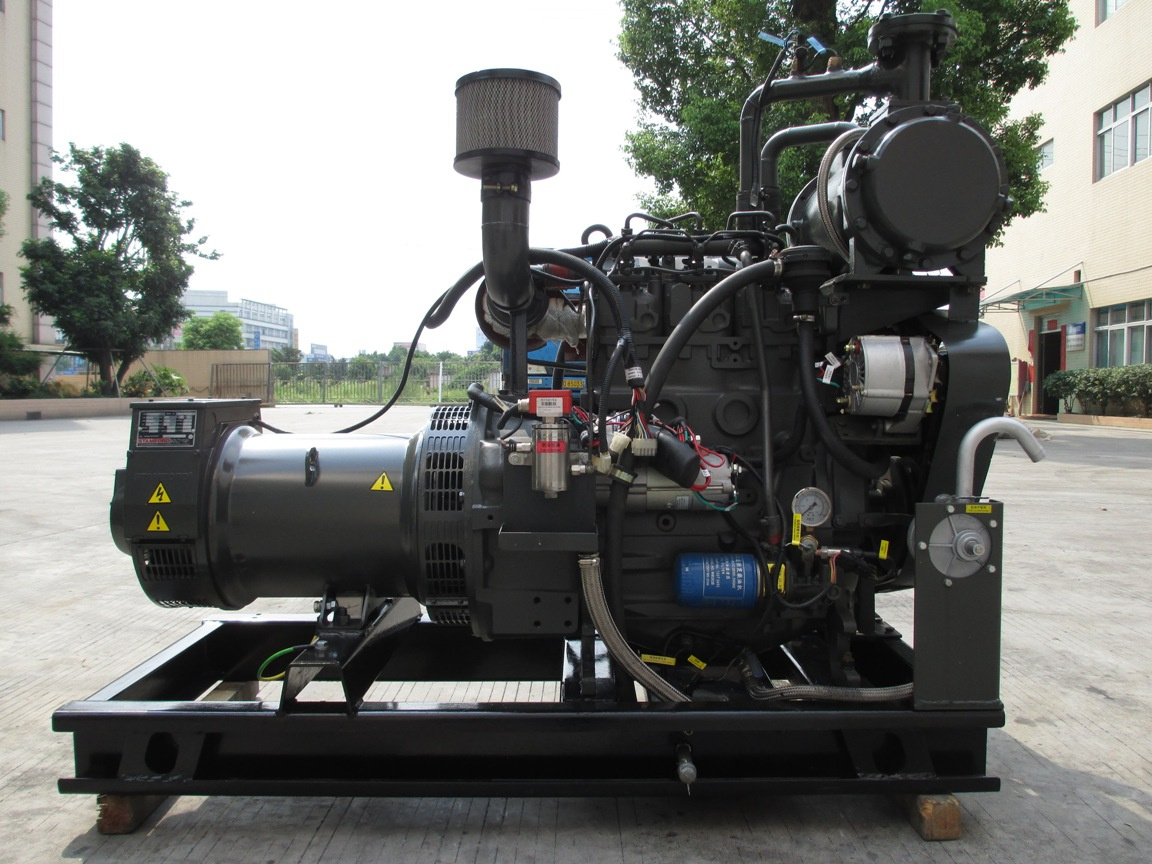

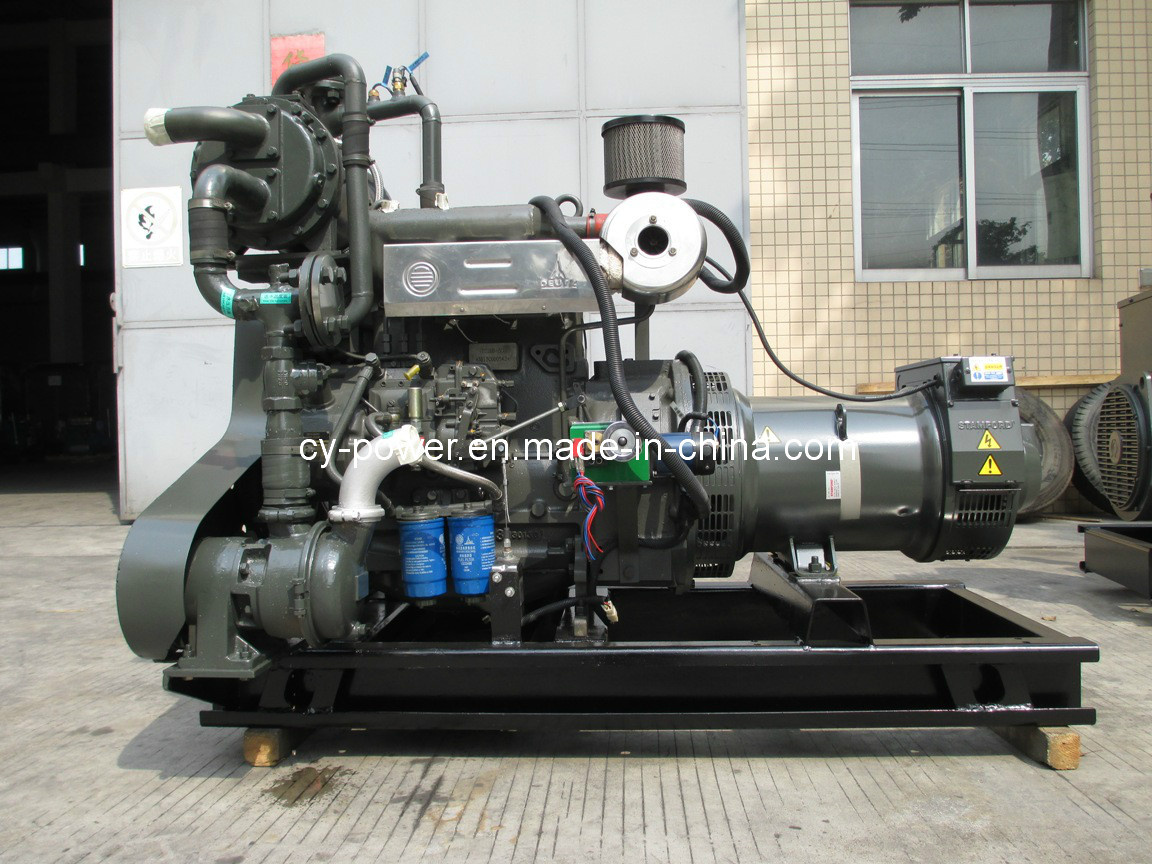

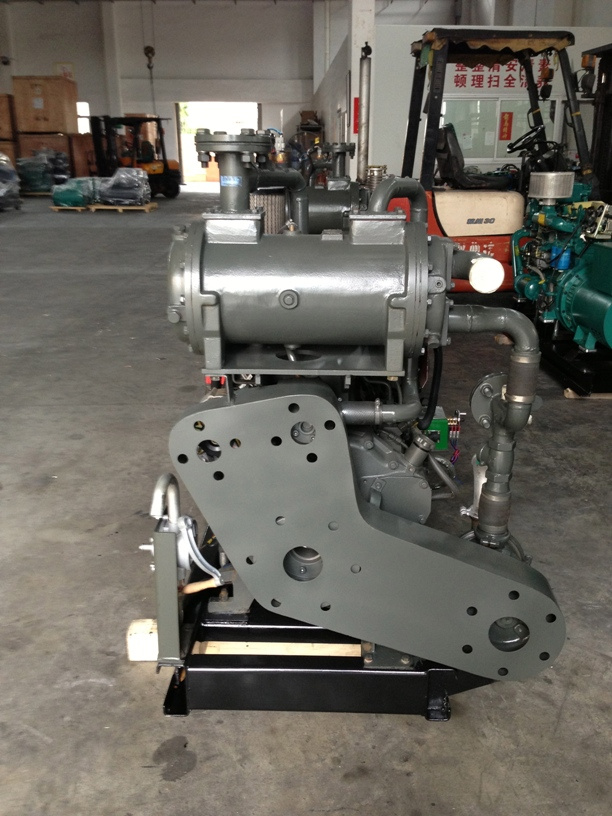

Marine Generator
Model: CCFJ30J
Brand: CY Power
Rated power: 30 KW / 37.5 kVA
Rated speed: 1500 r/min
Connecting method: 3 phase & 4 wire
Rated voltage: 415V
Rated current: 52.17A
Power factor: 0.8LAG
Dimension (L× B× H): 1350 * 620 * 1231 mm
Net weight: 810 KG
Diesel engine
Model: TD226B-3CD (4 stroke, Turbocharged, Cooling by Heat Exchanger)
Brand: WEICHAI Deutz
Rated power: 40 KW
Rated speed: 1500 r/min
Generator
Model: PM144K
Brand: Stamford
Insulation: Class H
Protection Level: IP23
Model |
Length |
Width |
Height |
CCFJ24 |
1460 |
740 |
1200 |
CCFJ30 |
1460 |
740 |
1200 |
UNIT :mm |
l
Genset Model |
Engine Model |
Rated Power
(kW) |
Fuel Consumption at Rated Power (L/hr) |
Genset Rated & Standby Output (k W / kVA) |
Genset Frequency (Hz) |
Genset Rated Voltage (V) & Current (A) |
Genset
Net Weight (KG) |
CCFJ24 |
D226B-3CD |
30 |
6.2 |
24/30 & 26/33 |
50 |
400& 43 |
720 |
CCFJ30 |
TD226B-3CD |
40 |
7.7 |
30/37 & 33/41 |
50 |
400& 54 |
740 |
