Home Generator Products 12-90kw Marine Generator, Nanchang Diesel Engine with Stamford Alternator

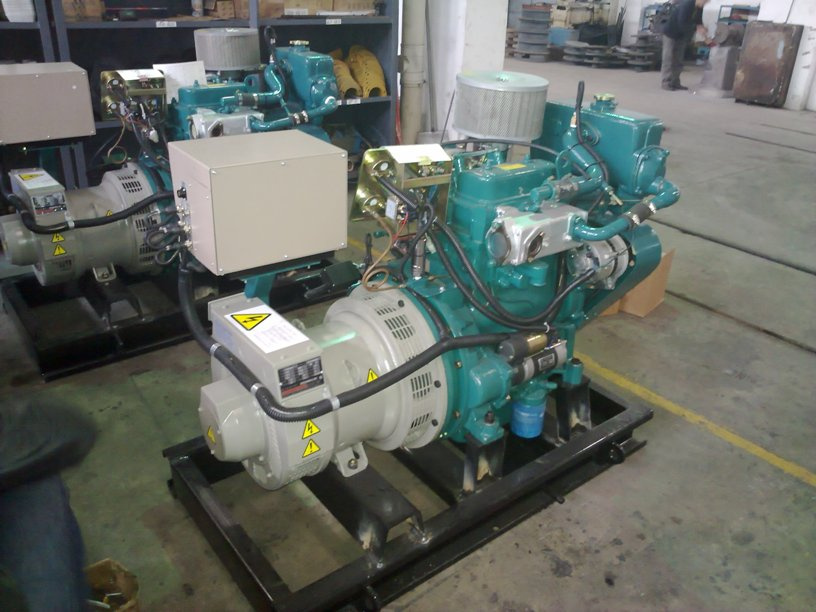

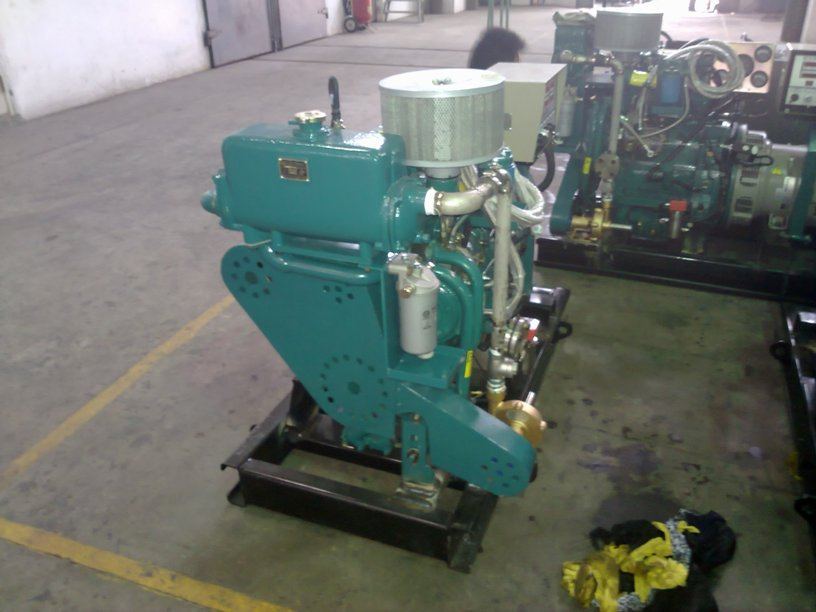

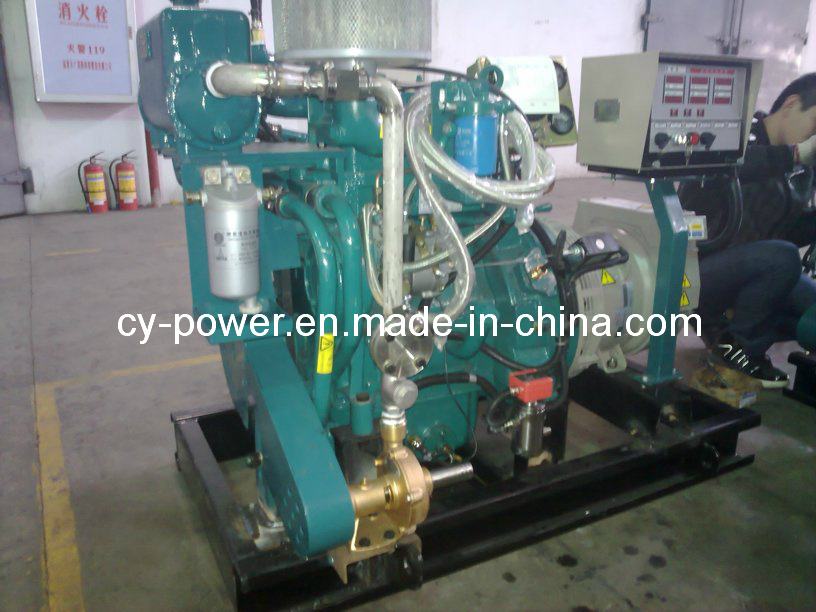

12-90kw Marine Generator, Nanchang Diesel Engine with Stamford Alternator

12-90kw Marine Generator, Nanchang Diesel Engine with Stamford Alternator
Price: US $ 4000/Set
Trade Terms: FOB,CIF,others
Min Order: 1/Set
Pay Type: L/C,T/T
Marine Generator

Model: 12GFC
Brand: CY Power
Rated power: 12 KW / 15kVA
Rated speed: 1500 r/min
Connecting method: 3 phase & 4 wire
Rated voltage: 400V
Rated current: 21.6A
Power factor: 0.8LAG
Dimension (L× B× H): 1200 * 620 * 1100 mm
Net weight: 400 KG


Diesel engine

Model: X2105BCF20A (4 stroke, Natural Air Inlet, Cooling by Heat Exchanger)
Brand: Nan Chang Diesel
Rated power: 15 KW
Rated speed: 1500 r/min


Generator

Model: PM044H
Brand: Stamford
Insulation: Class H
Protection Level: IP23



Genset Model

Engine Model

Rated Power
(kW)

Fuel Consumption at Rated Power (L/hr)

Genset Rated  (kW)

Genset Frequency (Hz)

Genset Rated Voltage (V) & Current (A)

Genset
Net Weight (KG)
CCFJ12 X2105BCF 16.2 3.6 12 50 400 & 21.6 640
CCFJ24 X4105BCF 32.4 7.0 24 50 400 & 43.2 890
CCFJ30 NC4110CF 39 8.9 30 50 400 & 54 950
CCFJ40 X4105BZCF 48 11.9 40 50 400 & 72 1000
CCFJ50 NC6110CF 58.8 14.8 50 50 400 & 90 1250
CCFJ64 NC6110ZCF 83 19.0 64 50 400 & 115.2 1400
CCFJ90 N6110ZLCF 114 26.7 90 50 400 & 162 1520
Prod Model: 12GFC
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fuel Oil: MGO Only
Cooling Method: Water Cooling
Stroke: Four Stroke
Installation Method: Fixed
Type: Basic Diesel Generator
Output Type: AC Three Phase
Landuse Type Of Unit: Marine
Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
