1. Volvo brand diesel engine
2. OEM service from Volvo
3. Easy to operate
4. Low oil consumption

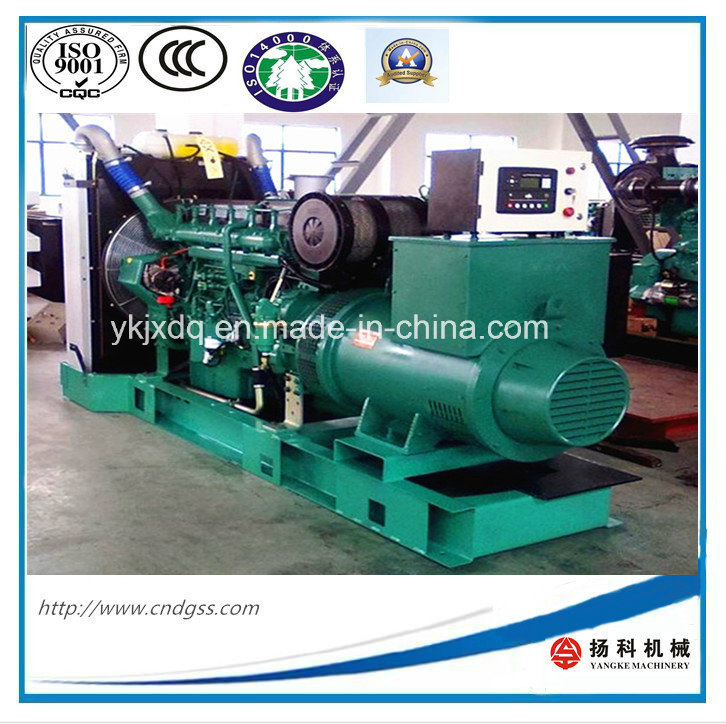

Overall description:
volvo Engine and kaijieli Alternator
Water cooled radiator, the fans driven by belt, with safety shield.
24 V Battery charging Alternator
Alternator:Single bearing Alternator,IP22 Grading Protection, H Insulation degree
Shock absorber
Dry air filter,Fuel filter,Oil filter
Power output circuit breaker
Harsen control panel(LCD display)
12 V battery and battery connection cables
Exhaust pipe,Corrugated shock tube,flange,Muffler set
Maintenance manuals
Lubrication System
The main parameters of the generator set
1. The main parameters of electric diesel generation |
The model of the unit: |
QSV-260GF |
Power: |
260KW/325KVA |
Rated voltage: |
400V/230V |
Rated current: |
468A (adjustable) |
Rated frequency: |
50Hz/60Hz |
The factor of rated power |
COS=0.8(lag) |
The regulating rate of steady voltage: |
≤±0.5% |
The regulating rate of instantaneous voltage: |
≤-10%/ +15% |
The time of steady voltage: |
≤1.5sec |
The waving rate of voltage: |
≤0.5% |
The regulating rate of steady frequency: |
≤3% |
The regulating rate of instantaneous frequency: |
≤±5% |
The time of steady frequency: |
3sec |
The waving rate of frequency: |
≤0.25% |
The waste of fuel with full load: |
202g/kw/h |
size(mm): |
2900*1100*1600 |
weight: |
2450KG |
2.The main parameters of the electric diesel generation engine |
Brand: |
VOLVO |
Model: |
TAD941GE |
Type: |
four strokes, waste gas turbine boost,direct spurting type |
Cooling way: |
water cooling |
With Type: |
Inline type |
Bore *Trip : |
120mm*138mm |
Displacement |
9.36L |
Lubricating oil capacity: |
35L |
Cylinder: |
6cylinders |
Rotating speed: |
1500r/min or 1800r/min |
The regulation of rotating speed: |
E-Speed |
Starting way: |
DC24V starting with electricity |
3.The main parameters of the generator |
Brand: |
YANGZHOU YANGKE:Stamford:Marathon |
Type: |
brushless (AVR automatic voltage regulating) |
The connecting way of the phase: |
three phases four lines |
Insulation degree: |
H degree |
Grading Protection: |
IP21 |
4. Controlling Screen of the electric diesel generation |
The controlling screen is Ordinary integrative type controlling screen, with active power,
three-phase voltage, frequency and three-phase current, kilowatt-hour, power factor,
oil pressure, coolant temperature, speed units, operating hours, battery voltage and
other shows. Diesel is speeding alarm shutdown, and low oil pressure alarm
and shutdown, the high temperature alarm and shutdown, over-voltage generators,
low alarm and shutdown, and frequency too high, too low alarm and shutdown,
short-circuit current and IDMT of over current protection. |
Packaging & Delivery
| Packaging Detail: | generator standard exporting package |
| Delivery Detail: | within 5-25working days after the deposit |
Company Information
Yangke Machinery Electric is a high-tech generator manufacturer which contains R&D, production and marketing together.
Our company not only establishes humanized modern enterprise with perfect quality management system and certification authority, but also equipped with international advanced facilities of R&D, manufacture and test. The concept of our company is to develop the best product, to provide the best service. We will spare no effect to serve our customer with products of high quality and after-sales service in a variety of ways.
With the help of the technical strength, our company has formed a structure of product series. The current main products are: QS series 8-3000KVA brushless alternators, which can be coupled with both domestic and foreign brands of diesel engines.
We only offer products using major engine brands such as Cummins, Perkins, Doosan, MTU Diesel/Mitsubishi etc. At YANGKE, we also customize the standard models to meet your unique requirements. Our Generators are also top of the line and come with base mounted fuel tanks, battery, battery rack and cables, vibration isolators between engine/diesel generator and base frame, a circuit breaker to protect the generator from overload and a two-wire auto start ready controls for automatic transfer switch operation. (Note: Automatic Transfer Switch Required for True Auto Operation).
Our products are sold to Southeast Asia, central Asia, the Middle East, Africa and South America.
Sales promises:
YANGKE power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested.
Warranty is according to our standard conditions :
a. 15months,counted on the day YANGKE sold to the first buyer;
b. one year after installation;
c.1000running hours(accumulated),subject to the earlier one.
Service and parts are available from YANGKE POWER or distributors in your location.
FAQ:
(1) Your company is factory or Trade Company?
Answer: We are professional low oil consumption diesel generator sets manufacturing factory.
(2) Your diesel generator power range?
Answer: Now we mainly produce QS series 8-3000kva brushless alternators.
(3) Which brand Electrical Generator you produce?
Answer: Now we produce USA Cummins brand Electrical Generator, Sweden Volvo Generator, Korea Doosan diesel generator, German Deutz Electrical Generator, and China local brands' generator.
(4) Where is your main market?
Answer: We mainly export Electrical Generators to southeast Asia, central Asia, the Middle East, Africa and South America
