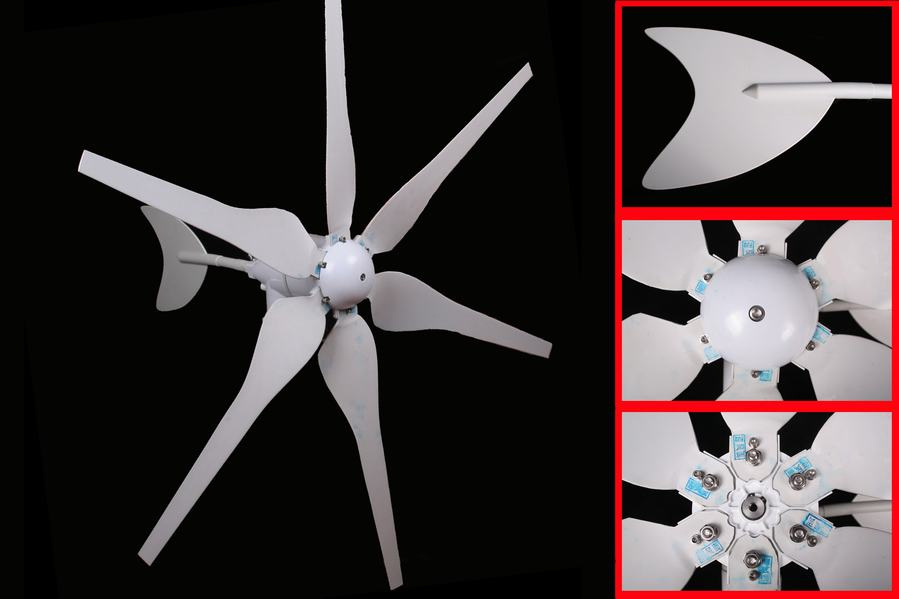

1. Which is using ultra-light composite materials and engineering plastics
2. The headpiece can be arbitrary rotated with anti-wind ability and automatically turned protection when faced with strong wind
3. As high efficiency, they can be made hybrid system with solar panel
4. Perfect Landscape effect
Products parameters
Model
P-300W
Name
Hyacinth
Rated power
300W
Rated DC voltage
DC 12V/24V
Rated current
25A/12.5A
Rated speed
900r/m
Max power
350W
Number of blade
6 PCS
Starting wind speed
2m/s
Cut-in wind speed
3m/s
Cut-out wind speed
15m/s
Security wind speed
40m/s
Rated wind speed
12.5m/s
Engine (generator)
Three-phase permanent magnel generator
Rotor diameter
1140mm
Blade material
Carbon fiber reinforced plastics
Output line anti-winding device
Overall three-phase commutator
Over-speed wind protection
Tip stall protection + turned protection + Electromagnetic brake
Life span
15 years
Equipment surface protection
Aluminum oxide + plastic coating
Working temperature
-45° C-70° C
N. W.
5.125kg
Packing material
Carton box and foam material
Packing dimension
650*400*320mm
G. W.
6.5kg
Before you set your order, please tell us which type do you need?
1. Voltage: 12V or 24V
2. Voltage: DC or AC
Shenzhen Wind Power Co., Ltd is a company specialized on medium & small wind turbine generator group and relevant parts development, manufacturing and selling.
We pay high attention on science development. We own professional persons and research equipments on aerodynamics analyse, mechanical design, generator design&manufacturing, also electrical regulate. Based on wind turbine whole set basic theory, every model go from science aerodynamics calculate, intensity analyse, electromagnetic calculate, efficiency study, jarring analyse and matching analyse, all have detailed design, test and produce plan. The wind turbine passed wind tunnel test. Whole system function and various working conditions all have detailed test reports.
Professionally organized and managed, we spare no effort in ensuring the supply of high quality various wind turbine and guarantee 100% service satisfaction for national & overseas consumers. Accordingly, all of our products conform to CE and ISO9001 quality standards.
We engaged in wind turbine generator development and application, we launched 300W, 500W, 1kw small wind turbine in 2000. When time goes by, our technology and products gradually matured, we launched 2kw, 3kw, 5kw, 10kw, 20kw wind generator.
Therefore, if you or your company are interested in any of our products, please don't hesitate to contact us for more details. We look forward to supplying you with our high quality products in the near future.
