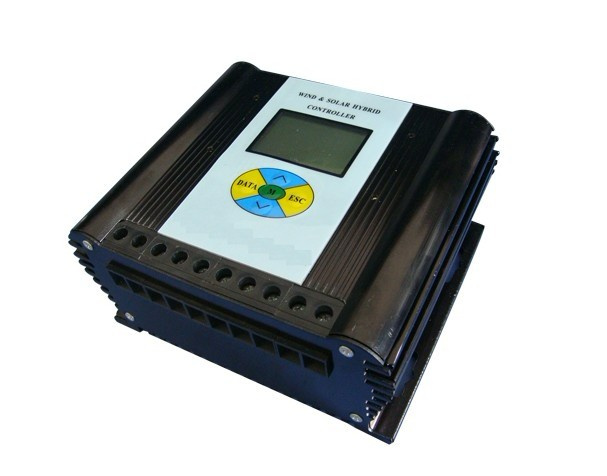

Wind Solar Hybrid Controller (600W Wind + 300W Solar)
Product Feature
1. Independent Boost Circuit: Solved the charging efficiency of the low-power vertical wind generator
2. MPPT charging way, make sure power max. Input to battery and high charging efficiency obtained.
3. Be able to use for 200W-600W wind turbine with high compatibility.
4.12V/24V System Automatic Recognition function.
5. Allow to connection reversely by battery or solar panel positive negative polarity.
6. Mini-size, be easy to install.
7. RS232 data communication with computer (we supply software). (Note: Controller software is optional, you can view system working status in your computer with it. When you need it, please add US $65.00/unit. )
Electronic protection functions
1. Overcharge protection
2. Deep discharge protection
3. Reverse polarity protection of load, module and battery
4. Automatic electronic fuse
5. Short circuit protection of load and module
6. Overvoltage protection at module input
7. Open circuit protection without battery
8. Reverse current protection at night
9. Wind-turbine auto brake and brake switch for manual operation
10. Battery overvoltage shutdown
Specifications
Model
TH-6001224
Rated Wind Input Power
100W-600W
Rated PV Input Power(12V/24V)
150/300W
Rated Battery Voltage
12V/24V
Control Mode
PWM
Display Method
LCD
Display Parameter
Wind Turbine Power, Wind Turbine Voltage, Wind Turbine Current,
PV Voltage, PV Charge Current, PV Power, Battery capacity, state of overvoltage, undervoltage, overload, short-circuit, day/night. etc
Standard communication interface
RS232( RS485, RJ45, GPRS optional)
Cooling Method
Natural cooling
Temperature compensation(optional)
4mV/° C/2V, -35° C--+80° C, accuracy ± 1° C
Protection Grade
IP26
Protection
Solar panel reverse-charge protection, Solar panel reverse-connect protection, Battery reverse-connect protection, Battery open circuit protection, wind turbine automatic brake and Manual brake protection
Operation Ambient Temperature/ Humidity
-4~- 122° F(-20° C- 50° C)/35~85%RH(no condensing)
Operation Altitude
≤ 2000m
Size(mm)
178 X 146 X 80
Weight(KG)
1.5
We can adjust configurations and parameters according to individual requirement.
Shenzhen Wind Power Co., Ltd is a company specialized on medium & small wind turbine generator group and relevant parts development, manufacturing and selling.
We pay high attention on science development. We own professional persons and research equipments on aerodynamics analyse, mechanical design, generator design&manufacturing, also electrical regulate. Based on wind turbine whole set basic theory, every model go from science aerodynamics calculate, intensity analyse, electromagnetic calculate, efficiency study, jarring analyse and matching analyse, all have detailed design, test and produce plan. The wind turbine passed wind tunnel test. Whole system function and various working conditions all have detailed test reports.
Professionally organized and managed, we spare no effort in ensuring the supply of high quality various wind turbine and guarantee 100% service satisfaction for national & overseas consumers. Accordingly, all of our products conform to CE and ISO9001 quality standards.
We engaged in wind turbine generator development and application, we launched 300W, 500W, 1kw small wind turbine in 2000. When time goes by, our technology and products gradually matured, we launched 2kw, 3kw, 5kw, 10kw, 20kw wind generator.
Therefore, if you or your company are interested in any of our products, please don't hesitate to contact us for more details. We look forward to supplying you with our high quality products in the near future.
