Product name: Mono 170W solar panel 72PCS in series
Model number: SNM- M170

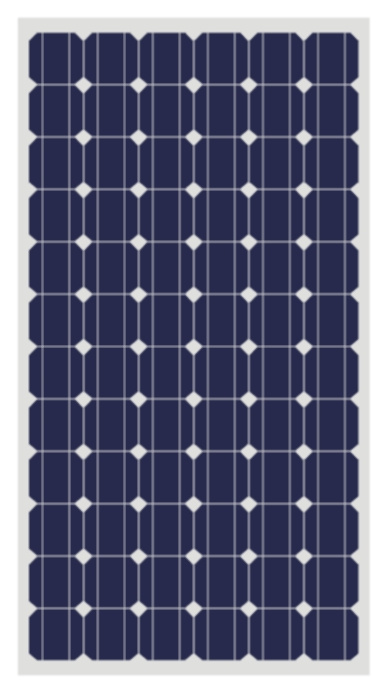

1. Picture & Electrical data:
1). Cell Type: Monocrystalline Silicon, 125mm*125mm
2). Peak Power (pmax): 170W
3). Number of cells: 72 cells in series
4). Weight: 15kg
5). Dimensions: 1580*808*45mm
6). Maximum Power Voltage(Vmp): 35.5 V
7). Maximum Power Current(Imp): 4.79 A
8). Open Circuit Voltage(Voc): 42.6 V
9). Short Circuit Current(Isc): 5.36A
10). Maximum System Voltage: DC 1000 V
2. Temperature Coefficients:
A) NOCT(Nominal Operating Cell Temperature): 47Degree celsius.
B) Voltage temperature coefficient(Voc): -0.34%/Degree celsius.
C) Current temperature coefficient(ISC): +0.09%/Degree celsius.
D) Power temperature coefficient(Pmmp): -0.37%/Degree celsius
3. Characteristics:
1) High efficiency solar cells ensures high performance of solar module and create more power in peak hours.
2)3.2mm high transmissive Low iron tempered glass. EVA laminate and Glass yield long life modules while enhancing cell performance.
3) Bypass diodes to avoid hot-spot effect.
4) Pre-cables with fast-connecting systems for convenient installation.
5) Stable, heavy duty anodized Aluminum frames with convenient mounting-access, for high wind-pressure and snow load.
6) The backside of frames is equipped with drainage holes in order to eliminate the risk that rain or snow water may accumulate in the frame through and freeze or even bend the frame in cold season.
7) 25 years limited pwer warranty...
4. Certifications
TUV, CE, IEC, ISO
Zhejiang Sunenergy Co., Ltd is a professional solar products manufacturer and sales in China. The company began the production of solar photovoltaic R & D since 2002. It consists of a group of professionals with a lot of experience and long careers in the field of photovoltaic energy.
Now the production line is in capacity of 120 MW per year. Besides., our factory also was bulit the production line of controller and inverter major solar products series in 2005.
Our factory can supply the solar panel both mono solar panel and poly solar panel, solar controller, solar inverter and design the solar system. Sun Energy has obtained its CE. Rosh. TUV. IEC certifications for its core modules...
With Company in Shanghai, China and Hong Kong branches and offices and Agency in Indonesia, We have taken part in the large project in European countries and USA possitively since the year of 2007 and have made our products well accepted in these regions.
Sun energy will bring you a new business success!
