| Price: | Negotiable |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
|
Module |
|
Type (72 series) |
||||||||||
|
Encapsulation |
|
Glass/EVA/Cells/EVA/TPT |
||||||||||
|
Parameters |
|
SNM-M160 |
SNM-M165 |
SNM-M170 |
SNM-M175 |
SNM-M180 |
SNM-M185 |
SNM-M190 |
SNM-M195 |
SNM-M200 |
||
|
Max power |
Pm(W) |
160W |
165W |
170W |
175W |
180W |
185W |
190W |
195W |
200W |
||
|
Tolerance |
|
+/-3% |
||||||||||
|
Open circuit voltage |
Voc(V) |
42.7 |
42.7 |
43.3 |
43.3 |
43.9 |
43.9 |
44.5 |
44.6 |
44.7 |
||
|
Short circuit current |
Isc(A) |
4.85 |
5.04 |
5.08 |
5.23 |
5.30 |
5.45 |
5.52 |
5.56 |
5.6 |
||
|
Max. power voltage |
Vmp(V) |
35 |
35 |
35.5 |
35.5 |
36 |
36 |
36.3 |
36.5 |
36.6 |
||
|
Max. power current |
Imp(A) |
4.57 |
4.71 |
4.79 |
4.93 |
5.0 |
5.14 |
5.22 |
5.34 |
5.45 |
||
|
Practical Module Efficiency |
Η c (%) |
12.5% |
12.9% |
13.3% |
13.7% |
14.1% |
14.5% |
14.9% |
15.2% |
15.4% |
||
|
Dimensions |
(L*W*H) |
1580× 808× 45mm |
||||||||||
|
Net Weight |
(kg) |
15.5 |
||||||||||
|
Max. system voltage |
(V) |
1000V DC |
||||||||||
|
Operate Temp. Scope |
|
-40/+85' C |
||||||||||
|
Resistance |
|
227g steel ball fall down from 1m height and 120m/s wind |
||||||||||
|
Warranty |
|
Pm is no less 90% in 10 years and no less 80% in 25 years |
||||||||||
|
STC |
|
(Standard Test Condition: 1000W/m2, AM1.5, and 25° C) |
||||||||||

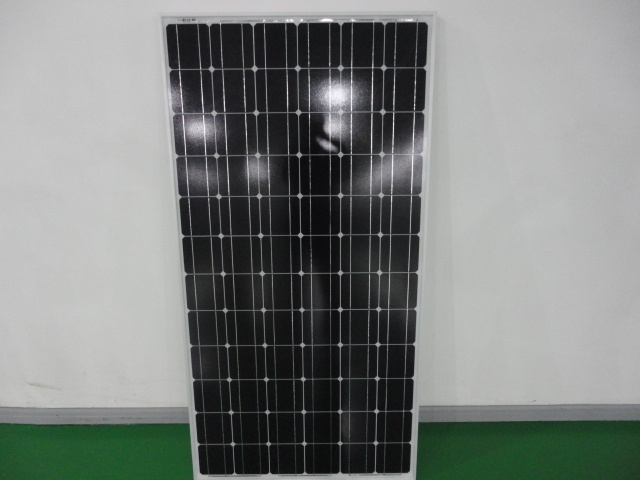

| Prod Model: | SNM-M(72) |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Productivity: | 100000picecs/Month |
| Material: | Monocrystalline Silicon |
| Size Of Cells: | 125*125 |
| Dimendions: | 1580*808*35 |
| Number Of Cells: | 6*12cells |
| Weitht: | 15.5kg |
| Color: | Black |
| Glass: | Tempered Low Iron |
| Frass: | Aluminiium Alloy |
| Backsheet: | Block Humidity and Oxy Effectively |
