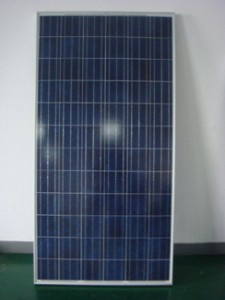

200Watt Solar Panel Features
1) High Efficiency
2) 24V DC standard output
3) CE, TUV junction box
4) Lifetime: 25 years
5) Warranty: 2 years
6) 90% power 10 years
7) 80% power 20 years
Model SNM-PB200W-24
Nominal power (Pm) 200 Watt
Power allowance ± 3%
Optimized working voltage (Vm) 26.2V
Optimized working current (Im) 7.63A
Open circuit voltage (Voc) 33.4V
Short circuit current (Isc) 8.12A
Module efficiency 13.5%
Withstanding voltage DC1000V
Dimension of module (L) 1482× 992× 50
Net weight (Kg) 19
Packing ( pcsMcarton) 2
Dimension of package (L) 1532× 920× 150
Volume (m3) 0.21
Gross weight ( Kg/carton) 40
Dimension of pallet 1562× 1080× 1950
Quantity in a 40' container 20carton/pallet× 13 pallet =260carton (520PCS)
Time returnable &replaceable 2year
Power attenuation 10year≤ 10%20year≤ 20%
Zhejiang Sunenergy Co., Ltd is a professional solar products manufacturer and sales in China. The company began the production of solar photovoltaic R & D since 2002. It consists of a group of professionals with a lot of experience and long careers in the field of photovoltaic energy.
Now the production line is in capacity of 120 MW per year. Besides., our factory also was bulit the production line of controller and inverter major solar products series in 2005.
Our factory can supply the solar panel both mono solar panel and poly solar panel, solar controller, solar inverter and design the solar system. Sun Energy has obtained its CE. Rosh. TUV. IEC certifications for its core modules...
With Company in Shanghai, China and Hong Kong branches and offices and Agency in Indonesia, We have taken part in the large project in European countries and USA possitively since the year of 2007 and have made our products well accepted in these regions.
Sun energy will bring you a new business success!
