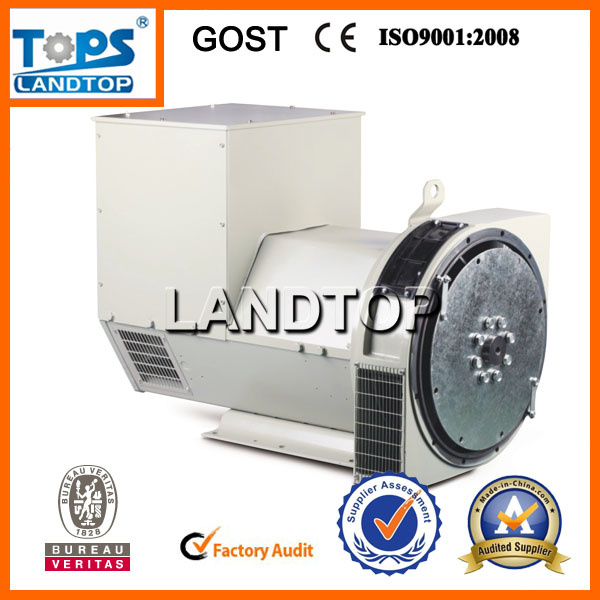

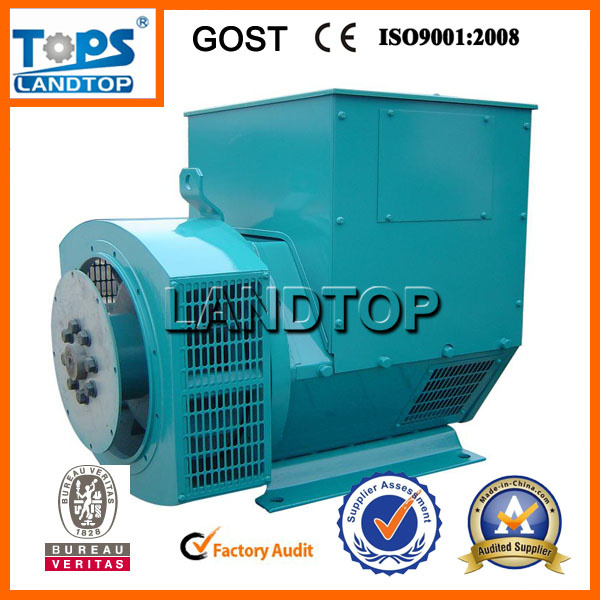

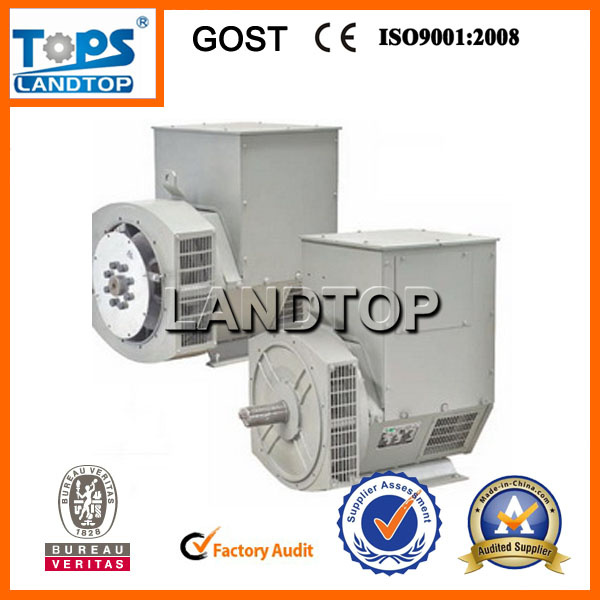

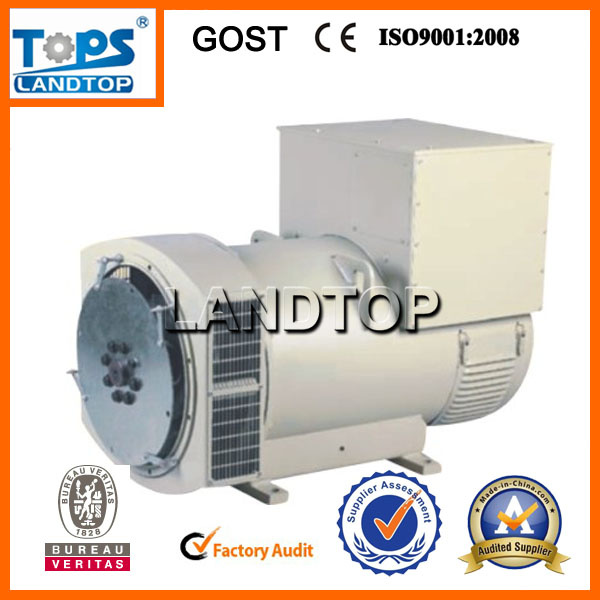

TZH Seris repeat phase excition three phase synchronous generator TZH Series New TZH series generators have five advantages comparing with STC series generators.
Compound excitation, simple circuit, high reliability, easy maintenance.
Excellent dynamic characteristics, when load or unload suddenly, the circuit's light will not twinkle.
Strong starting system, even if the motors of its 70% capacity volume they can be directly started and the switch will not trip.
Approaching sine voltage wave and regulated power supply, output voltage can be safely used on computers.
The deviation of the 3-phase line voltage will be less than 3% when the generators undertake unbalanced loading.
Operating Condiyions:
Under the following environment, The generator could be continuous and rated running:
1. Above sea level: Not exceed 1000m
2. Cooling air temperature: 258~313K
3. Relative air damping: Not exceed 90%
| Technical Date |
|
| Type | Rated power | Rated current | Rated voltage | Rated speed | Eff(%) | cos¢ | (KW) | Min. dr. power | Frame |
| (KW) | (A) | (V) | (r/min) | (kW) | NO. |
| TZH-30 | 30 | 54.1 | 400 | 1500 | 88 | 0.8 | 21 | 21 | 225 |
| TZH-40 | 40 | 72.2 | 1500 | 89 | 0.8 | 28 | 28 | 225 |
| TZH-50 | 50 | 90.2 | 1500 | 89.5 | 0.8 | 30 | 30 | 225 |
| TZH-64 | 64 | 115 | 1500 | 90.5 | 0.8 | 30 | 30 | 250 |
| TZH-75 | 75 | 135 | 1500 | 90.8 | 0.8 | 30 | 30 | 250 |
| TZH-90 | 90 | 162 | 1500 | 91 | 0.8 | 55 | 55 | 280 |
| TZH-120 | 120 | 217 | 1500 | 91.5 | 0.8 | 55 | 55 | 280 |
| TZH-150 | 150 | 271 | 1500 |
| 0.8 |
|
|
|
| TZH-200 | 200 | 361 | 1500 |
| 0.8 |
|
|
|
| TZH-250 | 250 | 451 | 1500 |
| 0.8 |
|
|
|
| TZH-300 | 300 | 541 | 1500 |
| 0.8 |
|
|
|
| TAH-400 | 400 | 722 | 1500 |
| 0.8 |
|
|
|
| TZH-500 | 500 | 902 | 1500 |
| 0.8 |
|
|
|
LANDTOP GROUP is specialized in manufacturing and exporting a wide range of electromechanical products, covering Alternators, Generators, Electric Motors, Water Pumps, etc.
With years of development, LANDTOP has developed into a large-scale, modern, comprehensive and international company. Our sales department is located in Fuzhou City (Fuzhou Landtop Co., Ltd. ), a sea-port city, enjoying convenient transportation network. We also have our own factory in Fu'an City (Fu'an Landtop Power Co., Ltd. ). Our international center is located in Hongkong(Hongkong Landtop Group Ltd. ). Our group is equipped with a great number of precise assemble lines, integrated testing systems and checkout equipment. We have professional engineers, skilled QC members, experienced salesmen and the best after-sales services. The current annual export production value is over 15 million US dollars.
We are always making great efforts to achieve the integration of manufacture and sale. We are able to meet our customers' demands, providing them with superior quality products. Our products, owing to reasonable price, high efficiency and energy saving performance, are widely praised by clients in over 80 countries and regions, such as Europe, America, Southeast Asia, the Middle East, Africa, etc.
Professional R&D system, standard technology, a skilled QC team and the best management group can offer you firm guarantee. Our group is continuously making arduous efforts on innovation to better serve our customers. We ensure that our cooperation will bring a win-win benefit to both of us.
