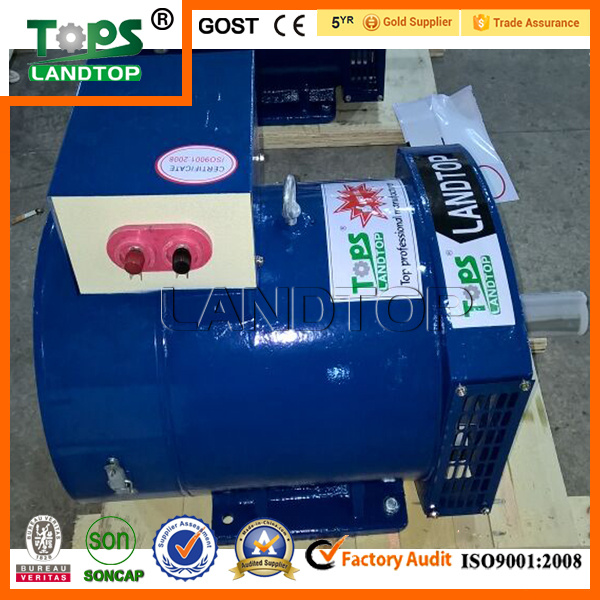

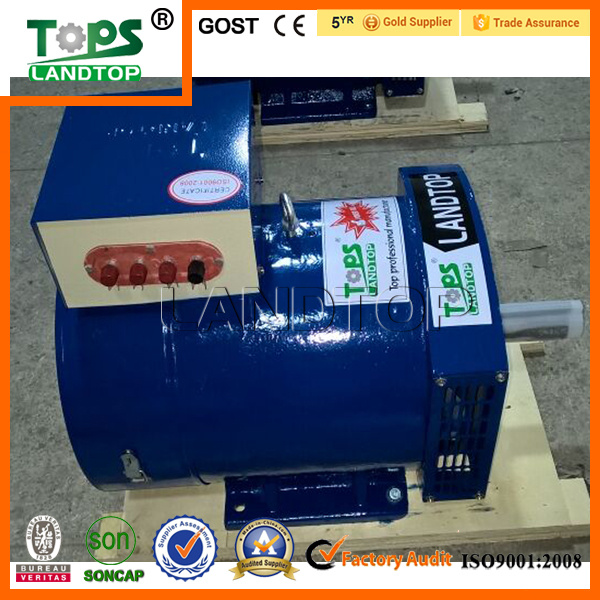

STC THREE PHASE ALTERNATOR
1) STC series AC alternators are to be used in town, countryside, worksites, mountain and pasture as electric power source for lighting purpose, it can also he used as reserved power source for emergent case using.
2) The AC alternators are of drip proof with rotary field type and adopt harmonic excitation system, easy operation and maintenance.
3) STC AC alternators are three-phase, four-wire type, adopting star connection with neutral point. The rated line voltage is 400V, phase voltage 230V, frequency 50Hz. Power factor 0.8(lag). We can provide 60Hz and the other voltage's generator according to the customer's request.
4) They can be coupled with a prime mover directly or through V-belt making right or reverse continuous rotation at the rated speed. When the rotation speed of prime mover changs 3% or so and load varies in the range of 0~100% cos j 0.8~1.0, the generators offer constant voltage, when sudden change (increase or decrease) of load, the generator will soon return to their normal working state, at the same time, without any starting device the generator can directly start an unloaded squirrel cage induction motor.
| Model | Ouput
(kw) | Rated Capacity
(KVA) | Rated Current
(A) | Pole number | Rated Speed
r. p. m |
| STC-3 | 3 | 3.8 | 5.4 | 4 | 1500 |
| STC-5 | 5 | 6.3 | 9 |
| STC-7.5 | 7.5 | 9.4 | 13.5 |
| STC-10 | 10 | 12.5 | 18.1 |
| STC-12 | 12 | 15 | 21.7 |
| STC-15 | 15 | 18.8 | 27.1 |
| STC-20 | 20 | 25 | 36.1 |
| STC-30 | 30 | 37.5 | 54.1 |
| STC-40 | 40 | 50 | 72.2 |
| STC-50 | 50 | 62.5 | 90.2 |
| STC-64 | 64 | 80 | 115.5 |
| STC-75 | 75 | 93.8 | 135.3 |
LANDTOP GROUP is specialized in manufacturing and exporting a wide range of electromechanical products, covering Alternators, Generators, Electric Motors, Water Pumps, etc.
With years of development, LANDTOP has developed into a large-scale, modern, comprehensive and international company. Our sales department is located in Fuzhou City (Fuzhou Landtop Co., Ltd. ), a sea-port city, enjoying convenient transportation network. We also have our own factory in Fu'an City (Fu'an Landtop Power Co., Ltd. ). Our international center is located in Hongkong(Hongkong Landtop Group Ltd. ). Our group is equipped with a great number of precise assemble lines, integrated testing systems and checkout equipment. We have professional engineers, skilled QC members, experienced salesmen and the best after-sales services. The current annual export production value is over 15 million US dollars.
We are always making great efforts to achieve the integration of manufacture and sale. We are able to meet our customers' demands, providing them with superior quality products. Our products, owing to reasonable price, high efficiency and energy saving performance, are widely praised by clients in over 80 countries and regions, such as Europe, America, Southeast Asia, the Middle East, Africa, etc.
Professional R&D system, standard technology, a skilled QC team and the best management group can offer you firm guarantee. Our group is continuously making arduous efforts on innovation to better serve our customers. We ensure that our cooperation will bring a win-win benefit to both of us.
