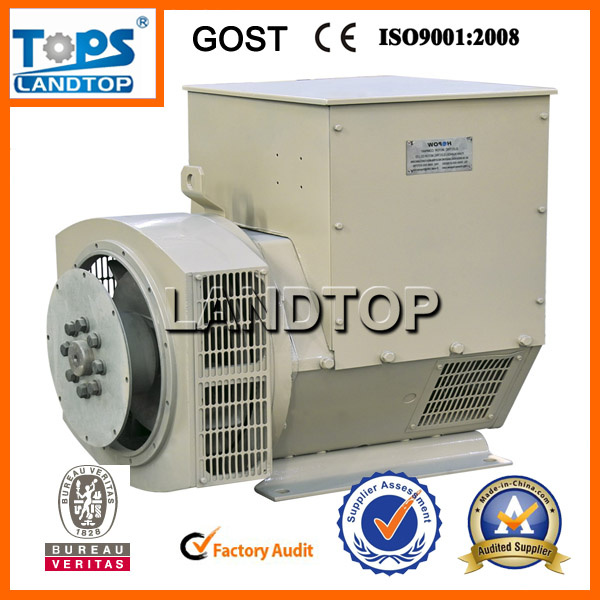

TOPS LPS Series Double Bearing Bruthless Alternator

Stanford Series three-phase A. C. Synchronous brushless generator impor, digest and absorb international advance technology of manufacturing electric machinery. It's the new-type designed and developed A. C. Synchronous generators by ourselves. The series generators accord with most of international standards. They alos accord with the following standards: International Electrician Command standard IEC 34 interntional standardization. Organization command standard ISO8528 NEMA Standard.

The products have outstanding performance, reliable quality, convenient maintenance. The generator and the engine can be connected with steel or flexible materialas a small-type generating station, it can be used in factories, buildings and worksites for lightening and electric power source.

LPS-164 SERIES TECHNIACAL DATA
		Three phase, Class H							Single phase, Class H
Voltage		50Hz 1500rpm			60Hz 1800rpm				50Hz 1500rpm			60Hz 1800rpm
Series Star Connection		380	400	415	416	440	460	480	220	230	240	220	230	240
Parallel Star Connection		190	200	208	208	220	230	240	110	115	120	110	115	120
Series Deita Connection		220	230	240	240	254	266	267	N/A	N/A	N/A	N/A	N/A	N/A
LPS-164A	KVA	8.1	8.1	8.1	9.6	10.2	10.2	10.2	5.4	5.4	5.4	6.4	6.4	6.4
	kW	6.5	6.5	6.5	7.7	8.2	8.2	8.2	4.3	4.3	4.3	5.1	5.1	5.1
	Eff	75.5	76.2	76.6	75.7	75.8	76.4	77	69.6	69.6	70	69.5	70.1	70.6
LPS-164B	KVA	11	11	11	13	13.8	13.8	13.8	7.4	7.4	7.4	8.8	8.8	8.8
	kW	8.8	8.8	8.8	10.4	11	11	11	5.9	5.9	5.9	7	7	7
	Eff	78.7	79.4	79.8	79	79.1	79.7	80.2	73.5	73.8	73.9	73.3	73.9	74.4
LPS-164C	KVA	13.5	13.5	13.5	16	16.9	16.9	16.9	9	9	9	10.8	10.8	10.8
	kW	10.8	10.8	10.8	12.8	13.5	13.5	13.5	7.2	7.2	7.2	8.6	8.6	8.6
	Eff	80.1	80.7	81.1	80.3	80.4	81	81.5	75.2	75.5	75.7	75	75.6	76
LPS-164D	KVA	16	16	16	18.9	20	20	20	10.8	10.8	10.8	13.5	13.5	13.5
	kW	12.8	12.8	12.8	15.1	16	16	16	8.6	8.6	8.6	10.8	10.8	10.8
	Eff	81	81.7	82.1	81.3	81.4	82	82.5	76.5	76.7	76.9	76.4	76.9	77.4
LPS-184 SERIES TECHNIACAL DATA
		Three phase, Class H							Single phase, Class H
Voltage		50Hz 1500rpm			60Hz 1800rpm				50Hz 1500rpm			60Hz 1800rpm
Series Star Connection		380	400	415	416	440	460	480	220	230	240	220	230	240
Parallel Star Connection		190	200	208	208	220	230	240	110	115	120	110	115	120
Series Deita Connection		220	230	240	240	254	266	267	N/A	N/A	N/A	N/A	N/A	N/A
LPS-184E	KVA	22.5	22.5	22.5	27.5	28.8	28.8	30	15	15	15	18.4	18.4	18.4
	kW	18	18	18	22	23	23	24	12	12	12	14.7	14.7	14.7
	Eff	83.7	84.2	84.5	83.4	83.6	84.1	84.2	81.3	81.9	81.9	79.9	80.6	81.1
LPS-184F	KVA	27.5	27.5	27.5	32.5	34.4	34.4	35	18.5	18.5	18.5	21.9	21.9	21.9
	kW	22	22	22	26	27.5	27.5	28	14.8	14.8	14.8	17.5	17.5	17.5
	Eff	85.3	85.8	86	85.4	85.5	86	86.1	82.7	83.3	83.3	81.9	81.9	82.8
LPS-184G	KVA	31.3	31.3	31.3	35	37.5	37.5	37.5	21	21	21	25	25	25
	kW	25	25	25	28	30	30	30	16.8	16.8	16.8	20	20	20
	Eff	85.7	86.2	86.4	86.3	86.3	86.7	87	83.7	83.9	83.9	83	83	83
LPS-184H	KVA	37.5	37.5	37.5	44.3	46.9	46.9	46.9	25	25	25	31.3	31.3	31.3
	kW	30	30	30	35.4	37.5	37.5	37.5	20	20	20	25	25	25
	Eff	86.2	86.6	86.9	86.2	86.3	86.7	87	82.9	82.9	82.9	82.8	82.8	82.8
LPS-184J	KVA	40	42.5	40	47.3	50	50	50	28	28	28	35	35	35
	kW	32	34	32	37.8	40	40	40	22.4	22.4	22.4	28	28	28
	Eff	87.6	86.6	87.1	87.3	86.7	86.8	87.2	87.5	83	83	82.9	83	83
LPS-224 SERIES TECHNIACAL DATA
Three phase, Class H
Voltage		50Hz 1500rpm									60Hz 1800rpm
Series Star Connection		Rated 40			Max 40			Max 27			Rated 40			Max 40
Parallel Star Connection		Rated 125			Reserve 150			Reserve 163			Rated 125			Reserve 150
Series Deita Connection		380	400	415	380	400	415	380	400	415	416	440	480	416
LPS-224C	KVA	42.5	42.5	42.5	45	45	45	46.8	46.8	46.8	50	52.5	55	53.1
	kW	34	34	34	36	36	36	37.4	37.4	37.4	40	42	44	42.5
	Eff	86.6	87.1	87.4	86.2	86.2	87.1	86	86.6	86.9	87.1	87.5	88.1	86.7
LPS-224D	KVA	50	50	50	53	53	53	55	55	55	60	62.5	65	62.5
	kW	40	40	40	42.4	42.4	42.4	44	44	44	48	50	52	50
	Eff	87.7	88.2	88.5	87.4	87.4	88.2	87.2	87.7	88	88	88.4	89	87.8
LPS-224E	KVA	60	60	60	61	61	61	63	63	63	67.5	70	75	70
	kW	48	48	48	48.8	48.8	48.8	50.4	50.4	50.4	54	56	60	56
	Eff	88.3	88.8	89.1	88.2	88.2	89	88	88.5	88.8	88.8	89.2	89.6	88.6
LPS-224F	KVA	72.5	72.5	72.5	77	77	77	80	80	80	83.8	87.5	93.8	88.8
	kW	58	58	58	61.6	61.6	61.6	64	64	64	67	70	75	71
	Eff	89.6	89.9	90.1	89.4	89.4	89.9	89.2	89.6	89.8	90	90.3	90.6	89.8
LPS-224G	KVA	85	85	85	87.5	87.5	87.5	90.8	90.8	90.8	93.8	97.5	103.8	98.1
	kW	68	68	68	70	70	70	72.6	72.6	72.6	75	78	83	78.5
	Eff	89.8	90.2	90.4	89.7	89.7	90.3	89.6	89.9	90.1	90.5	90.8	91	90.3
LPS-274 SERIES TECHNIACAL DATA
Three phase, Class H
Voltage		50Hz 1500rpm									60Hz 1800rpm
Series Star Connection		Rated 40			Max 40			Max 27			Rated 40			Max 40
Parallel Star Connection		Rated 125			Reserve 150			Reserve 163			Rated 125			Reserve 150
Series Deita Connection		380	400	415	380	400	415	380	400	415	416	440	480	416
LPS-274C	KVA	100	100	100	106	106	106	110	110	110	112.5	117.5	125	116.3
	kW	80	80	80	84.8	84.8	84.8	88	88	88	90	94	100	93
	Eff	89.8	90.3	90.6	89.5	90	90.4	89.2	89.8	90.2	90.2	90.6	91.1	90
LPS-274D	KVA	114	120	114	121	127	121	125	130	125	131.3	137.5	146.3	137.5
	kW	91.2	96	91.2	96.8	101.6	96.8	100	104	100	105	110	117	110
	Eff	90.3	90.6	91.1	91.1	91.6	91.8	91	91.4	91.7	90.5	90.8	91.3	91.2
LPS-274E	KVA	140	140	140	145	145	145	150	150	150	160	167.5	178.8	170
	kW	112	112	112	116	116	116	120	120	120	128	134	143	136
	Eff	91.3	91.7	92	91.1	91.6	91.8	91	91.4	91.7	91.4	91.7	92.1	91.2
LPS-274F	KVA	160	160	160	170	170	170	175	175	175	181.3	190	206.3	187.5
	kW	128	128	128	136	136	136	140	140	140	145	152	165	150
	Eff	92	92.3	92.5	91.7	92.1	92.3	91.6	92	92.2	92.1	92.4	92.7	92
LPS-274G	KVA	182	182	182	187	187	187	200	200	200	205	218.5	231.4	213
	kW	145.6	145.6	145.6	149.6	149.6	149.6	160	160	160	164	174.8	185.1	170.4
	Eff	92	92.4	92.6	91.9	92.2	92.5	91.7	92.1	92.3	92.2	92.4	92.7	92
LPS-274H	KVA	200	200	200	212	212	212	220	220	220	237.5	245	255	250
	kW	160	160	160	169.6	169.6	169.6	176	176	176	190	196	204	200
	Eff	93	93.3	93.4	92.8	93.1	93.3	92.7	93	93.2	93	93.2	93.6	92.8

Prod Model:	copy standford alternator
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Alternator:	Generator
