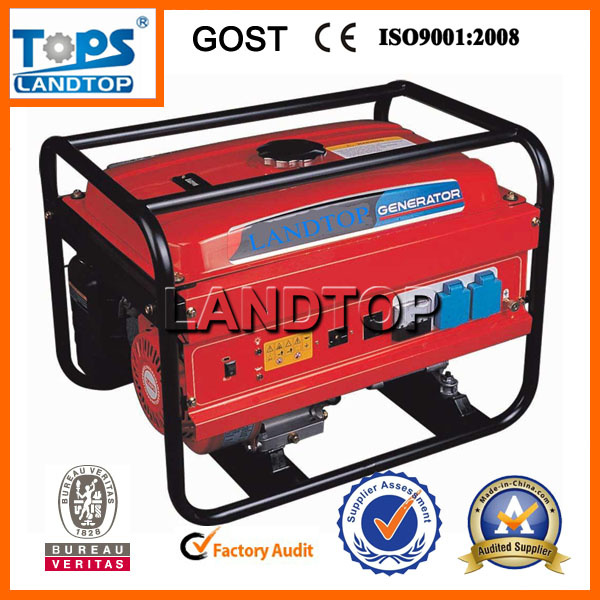

Gasoline generator specifications:
Engine: 168F-1 6.5HP
Engine mode: OHV, tilt, single cylinder, forced air cooling, 4-stroke
Displacement (CC): 196
Rated power: 2.5kw
Igniting mode: T. C. I.
Starting mode: Recoil start
Fuel volume (L): 15
Fuel consumption (L/hr): 1.22
Continuing working time (hr): 13
Oil volume (L): 0.6
Noise (Away from 7m)(bd): 65
Alternator:
Rated frequency (Hz): 50Hz or 60 Hz
Rated voltage (V): 110/220/230/240
Rated output: 2.7kw
Maximum output: 3kw
Generator set
Packing Dimensions (mm): 610*440*460
Net weight(kg): 49
Usual Accessory: Large fuel tank, large size muffler, large size air filter, fuel gauge, voltmeter, automatic voltage regulator, oil alarm system, non-fuse breaker
1Optional accessory: Four wheel vehicle set
Advantages: EXCELLENT PERFORMANCE, ECONOMIC USE, LONG SERVICE LIFE, LOW EXHAUST EMISSIONS AND NOISE, COMPACT STRUCTURE, LIGHT WEIGHT, EASY USE
Pricing: Negotiation
Payment Details: T/T IN ADVANCE OR L/C AT SIGHT
Min Order: 10
Ship Date: 15 days per 40FT container
|
MODEL |
LTP1500 |
|
|
Generator |
Rated AC ouput (w) |
950 |
|
|
Max AC ouput (w) |
1100 |
|
|
Rated AC Voltage (V) |
110/120/220/230/240/380/400/420 |
|
|
Frequency (Hz) |
50/60 |
|
|
Power Factor |
1 |
|
|
Engine |
Model |
IE47FA |
|
|
Type |
4 stroke, 25° incline, single cylinder, air-cooled |
|
|
Max. Output(HP/rpm) |
2.4/3600 |
|
|
BorexStroke(mm) |
54x38 |
|
|
Ignition system |
Non-Contact Transistorized Ignition(T. C. I) |
|
|
Starting system |
Recoil Starting |
|
|
Fuel |
Unleaded Gasoline |
|
|
Fuel tank capacity(L) |
5.4 |
|
|
Continuous work(h) |
10 |
|
|
Displacement(cc) |
86.5 |
|
|
Package |
Dimension LxWxH(mm) |
460x3270x370 |
|
|
|
|
N. G(kg) |
28 |
|
|
20' FCL(pcs) |
450 |
|
|
MODEL |
LTP1400CX |
|
|
Generator |
Rated AC ouput (kw) |
1.0/1.1 |
|
|
Max AC ouput (kw) |
1.1/1.2 |
|
|
Rated AC Voltage (V) |
110/120/220/230/240/380/400/420 |
|
|
Frequency (Hz) |
50/60 |
|
|
Power Factor |
1 |
|
|
Engine |
Model |
154F |
|
|
Type |
4 stroke, 25° incline, single cylinder, air-cooled |
|
|
Max. Output(HP/rpm) |
2.4/3600 |
|
|
BorexStroke(mm) |
54x38 |
|
|
Ignition system |
Non-Contact Transistorized Ignition(T. C. I) |
|
|
Starting system |
Recoil Starting |
|
|
Fuel |
Unleaded Gasoline |
|
|
Fuel tank capacity(L) |
5.4 |
|
|
Continuous work(h) |
10 |
|
|
Displacement(cc) |
86.5 |
|
|
Package |
Dimension LxWxH(mm) |
465x370x385 |
|
|
|
|
N. G(kg) |
28 |
|
|
20' FCL(pcs) |
450 |
|
|
MODEL |
LTP1500CX(E) |
|
|
Generator |
Rated AC ouput (kw) |
1.5/1.8 |
|
|
Max AC ouput (kw) |
1.7/2.0 |
|
|
Rated AC Voltage (V) |
110/120/220/230/240/380/400/420 |
|
|
Frequency (Hz) |
50/60 |
|
|
Power Factor |
1 |
|
|
Engine |
Model |
168F-1(E) |
|
|
Type |
4 stroke, 25° incline, single cylinder, air-cooled |
|
|
Max. Output(HP/rpm) |
5.5/3600 |
|
|
BorexStroke(mm) |
68x45 |
|
|
Ignition system |
Non-Contact Transistorized Ignition(T. C. I) |
|
|
Starting system |
Recoil Starting |
|
|
Fuel |
Unleaded Gasoline |
|
|
Fuel tank capacity(L) |
13.5 |
|
|
Continuous work(h) |
11 |
|
|
Displacement(cc) |
163 |
|
|
Package |
Dimension LxWxH(mm) |
605x440x460 |
|
|
605x455x460(E) |
|
|
N. G(kg) |
40 |
|
|
20' FCL(pcs) |
240/235 |
|
|
MODEL |
LTP2500CX(E) |
|
|
Generator |
Rated AC ouput (kw) |
2.0/2.2 |
|
|
Max AC ouput (kw) |
2.2/2.5 |
|
|
Rated AC Voltage (V) |
110/120/220/230/240/380/400/420 |
|
|
Frequency (Hz) |
50/60 |
|
|
Power Factor |
1/0.8 |
|
|
Engine |
Model |
168F-1(E) |
|
|
Type |
4 stroke, 25° incline, single cylinder, air-cooled |
|
|
Max. Output(HP/rpm) |
5.5/3600 |
|
|
BorexStroke(mm) |
68x45 |
|
|
Ignition system |
Non-Contact Transistorized Ignition(T. C. I) |
|
|
Starting system |
Recoil Starting |
|
|
Fuel |
Unleaded Gasoline |
|
|
Fuel tank capacity(L) |
13.5 |
|
|
Continuous work(h) |
11 |
|
|
Displacement(cc) |
|
|
|
Package |
Dimension LxWxH(mm) |
605x440x460 |
|
|
605x455x460(E) |
|
|
N. G(kg) |
41 |
|
|
20' FCL(pcs) |
240/235 |
|
|
MODEL |
LTP4500CX(E) |
|
|
Generator |
Rated AC ouput (kw) |
3.0/3.3 |
|
|
Max AC ouput (kw) |
3.3/3.8 |
|
|
Rated AC Voltage (V) |
110/120/220/230/240/380/400/420 |
|
|
Frequency (Hz) |
50/60 |
|
|
Power Factor |
1/0.8 |
|
|
Engine |
Model |
170F(E) |
|
|
Type |
4 stroke, 25° incline, single cylinder, air-cooled |
|
|
Max. Output(HP/rpm) |
7.0/3600 |
|
|
BorexStroke(mm) |
70X54 |
|
|
Ignition system |
Non-Contact Transistorized Ignition(T. C. I) |
|
|
Starting system |
Recoil Starting |
|
|
Fuel |
Unleaded Gasoline |
|
|
Fuel tank capacity(L) |
13.5 |
|
|
Continuous work(h) |
11 |
|
|
Displacement(cc) |
207 |
|
|
Package |
Dimension LxWxH(mm) |
605x440x460 |
|
|
605x455x460(E) |
|
|
N. G(kg) |
50 |
|
|
20' FCL(pcs) |
240/235 |
|
|
MODEL |
LTP5500CX(E) |
|
|
Generator |
Rated AC ouput (kw) |
4.0/4.4 |
|
|
Max AC ouput (kw) |
4.4/4.8 |
|
|
Rated AC Voltage (V) |
110/120/220/230/240/380/400/420 |
|
|
Frequency (Hz) |
50/60 |
|
|
Power Factor |
1/0.8 |
|
|
Engine |
Model |
188F(E) |
|
|
Type |
4 stroke, 25° incline, single cylinder, air-cooled |
|
|
Max. Output(HP/rpm) |
13.0/3600 |
|
|
BorexStroke(mm) |
88x64 |
|
|
Ignition system |
Non-Contact Transistorized Ignition(T. C. I) |
|
|
Starting system |
Recoil Starting |
|
|
Fuel |
Unleaded Gasoline |
|
|
Fuel tank capacity(L) |
25 |
|
|
Continuous work(h) |
8 |
|
|
Displacement(cc) |
389 |
|
|
Package |
Dimension LxWxH(mm) |
695X530X570 |
|
|
695X545X570(E) |
|
|
N. G(kg) |
76 |
|
|
20' FCL(pcs) |
144 |
|
|
MODEL |
LTP6500CX(E) |
|
|
Generator |
Rated AC ouput (kw) |
5.0/5.5 |
|
|
Max AC ouput (kw) |
5.5/6.0 |
|
|
Rated AC Voltage (V) |
110/120/220/230/240/380/400/420 |
|
|
Frequency (Hz) |
50/60 |
|
|
Power Factor |
1/0.8 |
|
|
Engine |
Model |
188F(E) |
|
|
Type |
4 stroke, 25° incline, single cylinder, air-cooled |
|
|
Max. Output(HP/rpm) |
13.0/3600 |
|
|
BorexStroke(mm) |
88x64 |
|
|
Ignition system |
Non-Contact Transistorized Ignition(T. C. I) |
|
|
Starting system |
Recoil Starting |
|
|
Fuel |
Unleaded Gasoline |
|
|
Fuel tank capacity(L) |
25 |
|
|
Continuous work(h) |
8 |
|
|
Displacement(cc) |
389 |
|
|
Package |
Dimension LxWxH(mm) |
695X530X570 |
|
|
695X545X570(E) |
|
|
N. G(kg) |
81 |
|
|
20' FCL(pcs) |
144 |
|
|
MODEL |
LTP7500CX(E) |
|
|
Generator |
Rated AC ouput (kw) |
6.0/6.5 |
|
|
Max AC ouput (kw) |
6.5/7.0 |
|
|
Rated AC Voltage (V) |
110/120/220/230/240/380/400/420 |
|
|
Frequency (Hz) |
50/60 |
|
|
Power Factor |
1/0.8 |
|
|
Engine |
Model |
190F(E) |
|
|
Type |
4 stroke, 25° incline, single cylinder, air-cooled |
|
|
Max. Output(HP/rpm) |
15.0/3600 |
|
|
BorexStroke(mm) |
90X66 |
|
|
Ignition system |
Non-Contact Transistorized Ignition(T. C. I) |
|
|
Starting system |
Recoil Starting |
|
|
Fuel |
Unleaded Gasoline |
|
|
Fuel tank capacity(L) |
25 |
|
|
Continuous work(h) |
7.5 |
|
|
Displacement(cc) |
420 |
|
|
Package |
Dimension LxWxH(mm) |
695X530X570 |
|
|
695X545X570(E) |
|
|
N. G(kg) |
95 |
|
|
20' FCL(pcs) |
144 |
|
|
MODEL |
XG7500CX(E) |
|
|
Generator |
Rated AC ouput (kw) |
6.5 |
|
|
Max AC ouput (kw) |
6.5/7.0 |
|
|
Rated AC Voltage (V) |
110/120/220/230/240/380/400/420 |
|
|
Frequency (Hz) |
50/60 |
|
|
Power Factor |
1/0.8 |
|
|
Engine |
Model |
190F(E) |
|
|
Type |
4 stroke, 25° incline, single cylinder, air-cooled |
|
|
Max. Output(HP/rpm) |
15.0/3600 |
|
|
BorexStroke(mm) |
90X66 |
|
|
Ignition system |
Non-Contact Transistorized Ignition(T. C. I) |
|
|
Starting system |
Recoil Starting |
|
|
Fuel |
Unleaded Gasoline |
|
|
Fuel tank capacity(L) |
25 |
|
|
Continuous work(h) |
7.5 |
|
|
Displacement(cc) |
420 |
|
|
Package |
Dimension LxWxH(mm) |
695X530X570 |
|
|
695X545X570(E) |
|
|
N. G(kg) |
98 |
|
|
20' FCL(pcs) |
144 |
|
|
