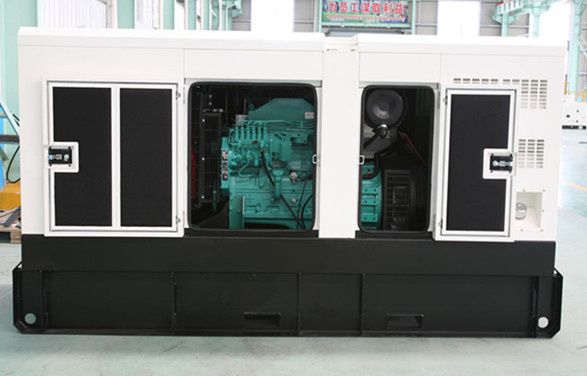

Top factory sale Low noise diesel generator 85kva
1 - Super power, PT fuel system, ultra-high injection pressure, sufficient combustion, low fuel consumption and good economic performance.
2 - Replaceable wet cylinder sleeves, good cooling effect, good spare parts commonality, high product serialization, easy maintenance and low failure.
3 - High-strength alloy cast iron with good rigidity, small vibration, low noise, good reliability and durability.
4 - Professional configuration, best quality, mature product, global reputation, and wide industry application.
5 - Super power, environment-friendly and low noise
6 - Electric controlled high-pressure fuel system to make sure full fuel combustion, low consumption, and engine in the best running status.
7 - High-pressure fuel system, even fuel injection, able to reduce the loss of additional power'
2,Alternator
1)Optional Brand: Engga, Stamford, Marathon,leroy somer
2)The standard generator set matches with Engga brand alternator, and customer also can choose other brands.
3)Standard AVR, AC three phase, 12 reconnect copper leads, single bearing or double bearing, self-exciting system and permanent magnet generator.
4)IP21-23 protection grade, insulation system is H class, and stators are wound to 2/3 pitch.
5)Manufacture standards: GB755, BS5000,VDE0530,NEMAMG1-22,IEC34,and ASB59
3,Digital Control Panel
Controller Brand: Smartgen
Control Panel: English interface,LED screen and touch buttons.
Main Functions:
1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown.
4,Warranty and Maintenance
1) Do the full power load test for five hours before package.
2) One year or 1000 working hours, whichever comes first, global warranty for Cummins.
3) After expiration, we provide spare parts maintenance with low price.
Contact: Ms Vicki Yuan
| Diesel Generator Set |
| GENSET MODEL NOS. | GDC85*S |
| Rated speed / frequency | 1500 rpm / 50 Hz |
| Continuous output(KW/KVA) | 68/85 |
| Standby output(KW/KVA) | 72.6/90.8 |
| Voltage, Phase and wire | 380V/220V, 3 Phase and 4 Wires |
| Rated power factor | 0.8(lagging) |
| Maximum output current(A) | 130 |
| Genset type | Open type | Silent type |
| Dimension(L*W*H) (mm) | 2240*980*1480 | 2720*980*1620 |
| Weight(kg) | 1250 | 1550 |
Rating Definitions (Operation at Altitude ≤1000m, Ambient temperature ≤ 40 degree)
Continuous Power
These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours. |
| Diesel Engine |
| DIESEL ENGINE MODEL | 6BT5.9-G1 or 6BT5.9-G2 (Cummins) |
| Engine Characters | Water-cooled, 6 cylinders in line, 4-cycle, direct injection |
| The maximum output(kW) | 92 |
| Aspiration | Turbocharged |
| Bore(mm)×Stroke (mm) | 102X120 |
| Fuel consumption(g/kw.h) | ≤200 |
| Cubic Capacity (Liters) | 5.88 |
| Exhaust air flow(m3/min) | 148 |
| Compress air flow(m3/min) | 5.8 |
| Exhaust gas flow(m3/min) | 14 |
| Exhaust highest temperature | 510 degree |
| Lub-oil pan capacity(L) | 16.4 |
| Cooling water capacity(L) | 28 |
| Voltage for start(V) | 24 |
| Instrument for adjusting speed | Electronically |
| Noise level(A) | ≤96dBA(open), ≤72dBA(silent) |
| ALTERNATOR |
| ALTERNATOR MODEL | UCI224G (Stamford) |
| Excitation | Brushless Self-excited |
| Insulation class | H |
| Protection class | IP22 |
| Efficiency | 90.4% |
| Voltage Regulation | ±1% with 4% engine governing |
| Waveform Distortion | No load<1.5% and non-distorting balanced linear load<5% |
| THF/TIF | <2%/50% |
Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.
Motivated by our slogan to provide "Excellent Power Solution", Godlike Power focuses on design, manufacture, sales, installation and service of diesel generators&alternators. Our diesel generators range from 8 kVA to 2500 kVA, equipped with Perkins, Cummins, Mitsubishi, Doosan, Deutz, MTU etc and equipped with our alternator, Stamford, Leroy-Somer etc alternators as required. Our Stamford type brushless alternators range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800, voltage 110V-690V, class H, IP23, all easily coupled with Industrial & Marine, Diesel & Gasoline engines.
GODLIKE people treat Quality and Service as enterprise's life, and has competitive advantages.
GODLIKE generators are being exported to Europe, America, Southeast Asia, the Middle East, South Africa, and many other countries and regions, obtaining great corporate reputation and long-terms partner cooperations.
Warmly welcome to GODLIKE.
