CE Quality 40kW/50kVA Silent Low Price Generator for Sale (GDC50*S)
GODLIKE Power Generator Advantages
1. High pressure pipes for diesel input-outlet
2. Stronger heavy duty rubber anti-vibration mountings
3. All base fuel tank Baking paint
4. All canopy powder coating (Powder type - 3 years durable, longer service life and less color fading)
5. Maintenance free battery and high quality battery charger
6. High standard wiring and brands (Chint/Delixi) relays, indicators, fuse breaker, meters etc.
7. Non-return Valve equipped
8. Turbo charger protection, moving parts protected and other CE standards (depends on required)
9. ONE Hour Testing for all genset (0%-25%-50%-75%-100%-110% loading)
10. Make sure the Fastest Delivery Time
11. Reliable Quality and Aftersale Services as committed
12. Excellent Quality Control and Pre-shipment Inspection
(All base frame, fuel tank, canopy, ATS cabinets etc are produced in unite power factory zone to avoid any out-off-controlled quality problems.
Engine feature
→Diesel, heavy-duty, four stroke, water cooled and direct injection fuel system
→24V D.C starter and charger alternator
→Industrial capacity exhaust silencer supplied loose with flexible section
and mating connections
→ Set mounted tropical duty radiator
→Engine driven cooling fan with protection guard
→Steel wire braided fuel lines, vent and rain fittings
→Set mounted acid battery installed with leads and terminals
Alternator feature
Brushless self excited, single bearing, 4 poles
Class H insulation
IP23 protection standard
Self-exciting and self-regulating
Automatic voltage regulator (AVR)
Control system
manual / auto start and protection module
Equipped with ComAp AMF20 controller
New integrated controllers in manual and remote start application, featuring full gen-set monitoring and protection. It is equipped with a powerful graphic display, Icons, symbols and bar graphs for intuitive operation together with high functionality set new standards in gen-set control. Special low temperature version is also available, allowing the display to work up to -30°C.
Warranty policy
Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Unite Power will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Unite Power provides cost spare parts maintenance of gensets.
| 1. Specification of genset |
| Gensets model | GDC50*S |
| Prime power | 40KW/50KVA |
| Standby power | 44KW/55KVA |
| Rated Voltage | 230/400V |
| Rated frequency(HZ) | 50HZ |
| Rated Speed | 1500rpm |
| Power Factor | 0.8(lagging) |
| Dimensions(mm) (L×W×H) | 2295x1050x1550 |
| Genset Weight(kg) | 1150 |
| 2. Specification of diesel engine |
| Engine brand | Cummins |
| Engine model | 4BT3.9-G2 |
| Number of Cylinders, Cylinder arrangement | 4 ,Vertical in-line |
| Cycle | Four stroke |
| Standby Rated Output kW | 44 |
| Aspiration | Turbocharged, Air / Air Cooling |
| Fuel System | Direct injection |
| Bore×Stroke (mm×mm) | 108 x 115 |
| Displacement (Liter) | 4.214 |
| Speed Governor | M |
| Cooling System | Forced Water Cooling Cycle |
| Fuel Consumption at 100%/75%/50% Load (L/h) | 9.6/7.2/4.8 |
| Starting Method | DC12V electrical starting |
| 3. Specification of alternator |
| Alternator brand | stamford |
| Alternator model | PI144 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire |
| Insulation Class | H |
| Telephone Influence Factor (TIF) | <50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±0.5% |
| Transient State Voltage | ≤-15%~+20% |

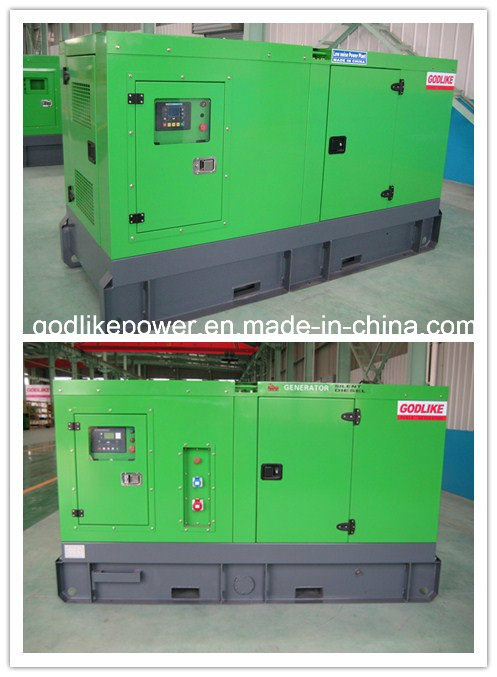

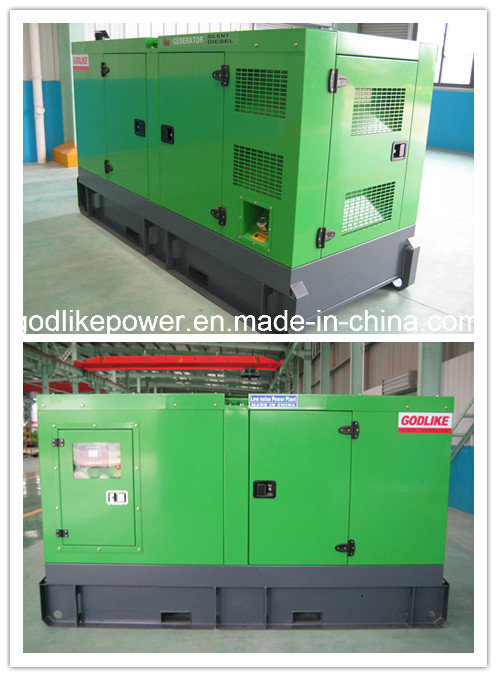

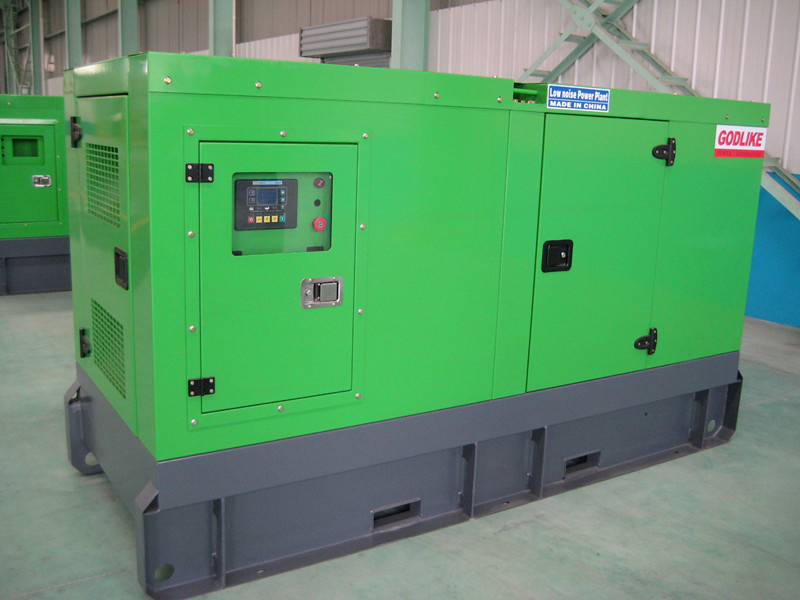

Generator photos:
Contact: Ms Vicki Yuan
Tel: 86 514 80915716
Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.
Motivated by our slogan to provide "Excellent Power Solution", Godlike Power focuses on design, manufacture, sales, installation and service of diesel generators&alternators. Our diesel generators range from 8 kVA to 2500 kVA, equipped with Perkins, Cummins, Mitsubishi, Doosan, Deutz, MTU etc and equipped with our alternator, Stamford, Leroy-Somer etc alternators as required. Our Stamford type brushless alternators range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800, voltage 110V-690V, class H, IP23, all easily coupled with Industrial & Marine, Diesel & Gasoline engines.
GODLIKE people treat Quality and Service as enterprise's life, and has competitive advantages.
GODLIKE generators are being exported to Europe, America, Southeast Asia, the Middle East, South Africa, and many other countries and regions, obtaining great corporate reputation and long-terms partner cooperations.
Warmly welcome to GODLIKE.
