18-375kva xichai diesel gensets/diesel generator set /diesel power generator set
GODLIKE POWER type gensets
GODLIKE POWER offers a wider range of gensets, as well as other types of electrical
Equipment and services.
ü Gensets: Single-phase and three-phase generators, manually operated or with
Automatic (AMF) operation, stationary or mobile, installed outdoors - with
Soundproof canopy, or indoors - open frame models, covering a power range
Between 10 and 2000kVA.
ü The GODLIKE POWER genset series has been designed to fulfill all the energetic
Necessities of every type of electric appliance, having a compact design, powerful,
Reliable, easy to use and with silent operation.
ü GODLIKE POWER gensets are equipped with diesel engines from famous genset engines manufacturers.
Internal combustion engine - Godlike power gensets are equipped with
Best quality, world wide famous engines.
The engines equipping the JDG series are reliable, low-noise,
Powerful, with low fuel consumption and manufactured using innovative
Technologies.
4 stroke, water-cooled, direct injection, in-line 2-6 cylinders, naturally aspirated or turbocharged Diesel engines.
Mechanical or electronic governor.
Electric starter motor 12/24V DC.
Battery charging alternator 12/24V DC.
Fuel pump and fuel filter(s), oil pump and oil filter(s), fuel injection
Pump, air filter(s).
Oil pressure sensors, engine temperature sensors.
Automatic engine shutdown in case of genset malfunction.
Pre-heating system (only for automatic gensets).
Exhaust system with low-noise muffler(s) and bellow(s).
GENERATOR - Synchronous, 4 pole, single bearing or double bearing, brushless.
Self excited and self regulated by AVR (Automatic Voltage Regulator).
IP23 protection degree.
Insulation class H.
SKID (BASE FRAME)
The engine-generator assembly is made by coupling the two major
Components via the SAE coupling system. Thanks to the special anti-
Vibration rubber damper pads, the genset does not induce noticeable
Vibrations to the surrounding foundation. The maximum vibration level
Induced to the genset base frame is 5mm/s.
FUEL TANK, is incorporated in the genset's base frame. As genset
Manufacturer, GODLIKE POWER can adapt to the customers' requests by enlarging
Or reducing the fuel tank capacity, in order to ensure the requested genset
Autonomy. In addition, the gensets can be equipped with large capacity
Auxiliary (external) fuel tanks with automatic refueling system.

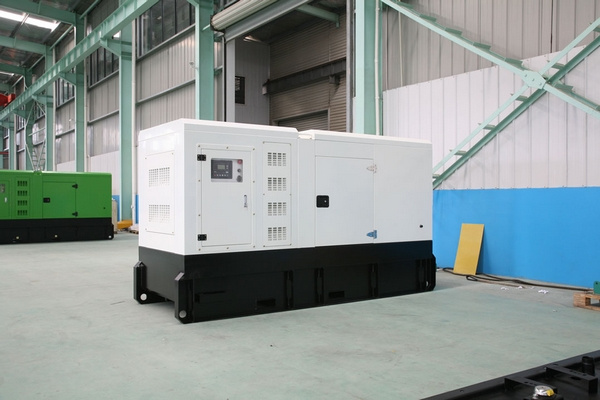

SOUNDPROOF CANOPY, made from electrostatic spray-
Painted steel sheet, which reduces the corrosive action of atmospheric
And surrounding environmental agents.
EXHAUST MUFFLER, ensures silent genset operation and
Reduces the environmental impact of exhaust gas according to the
Relevant EU standards.
COMMAND AND CONTROL PANEL
The control panel is included in the genset assembly, fitted on the
Genset's base frame and can be visualized through one of the canopy
Door's plexiglas window.
The gensets are equipped with manually operated or automatic
Operation electric panels, according to the customer's request.
The panels offer multiple set-up and protection functions and operating
Modes. The gensets can also be remote operated and monitored using
The PC, including via Internet and GSM, as an optional extra. The
Control panel is friendly and easy to use. The automatic control panels
Can be manufactures as a dual electrical board (the control-side
Apparatus is separated from the switchgear).
QUALITY STANDARDS
The GODLIKE POWER series gensets are designed and manufactured by our
Company according with the latest issued CE!
Item
No | Genset Model | Power Out Put
400V/50HZ/1500RPM/3P/0.8(Y) | Xichai
Engine
Model |
|
| Prime 40 degree |
| 1 | GDX18 | 15KW | 18KVA | 4DW81-23D/17KW |
| 2 | GDX24 | 19KW | 24KVA | 4DW91-29D/21KW |
| 3 | GDX30 | 24KW | 30KVA | 4DW92-35D/26KW |
| 4 | GDX35 | 28KW | 35KVA | 4DW93-42D/31KW |
| 5 | GDX38 | 30KW | 38KVA | 4DX21-45D/33KW |
| 6 | GDX42 | 34KW | 42KVA | 4DX22-50D/37KW |
| 7 | GDX55 | 44KW | 55KVA | 4DX23-65D/48KW |
| 8 | GDX74 | 59KW | 74KVA | 4110/125Z-09D/65KW |
| 9 | GDX94 | 75KW | 94KVA | CA4DF2-12D/84KW |
| 10 | GDX109 | 87KW | 109KVA | CA6DF2D-14D/96KW |
| 11 | GDX140 | 112KW | 140KVA | CA6DF2-17D/125KW |
| 12 | GDX156 | 125KW | 156KVA | CA6DF2-19D/140KW |
| 13 | GDX200 | 160KW | 200KVA | CA6DL1-24D/176KW |
| 14 | GDX230 | 184KW | 230KVA | CA6DL2-27D/205KW |
| 15 | GDX250 | 200KW | 250KVA | CA6DL2-30/227KW |
| 16 | GDX325 | 260KW | 325KVA | CA6DM2J-39D/287KW |
| 17 | GDX325 | 260KW | 325KVA | CA6DM2-39D/287KW |
| 18 | GDX340 | 272KW | 340KVA | CA6DM2J-41D/300KW |
| 19 | GDX340 | 272KW | 340KVA | CA6DM2-41D/300KW |
| 20 | GDX375 | 300KW | 375KVA | CA6DN1J-45D/332KW |
| 21 | GDX375 | 300KW | 375KVA | CA6DN1-45D/332KW |
Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.
Motivated by our slogan to provide "Excellent Power Solution", Godlike Power focuses on design, manufacture, sales, installation and service of diesel generators&alternators. Our diesel generators range from 8 kVA to 2500 kVA, equipped with Perkins, Cummins, Mitsubishi, Doosan, Deutz, MTU etc and equipped with our alternator, Stamford, Leroy-Somer etc alternators as required. Our Stamford type brushless alternators range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800, voltage 110V-690V, class H, IP23, all easily coupled with Industrial & Marine, Diesel & Gasoline engines.
GODLIKE people treat Quality and Service as enterprise's life, and has competitive advantages.
GODLIKE generators are being exported to Europe, America, Southeast Asia, the Middle East, South Africa, and many other countries and regions, obtaining great corporate reputation and long-terms partner cooperations.
Warmly welcome to GODLIKE.
