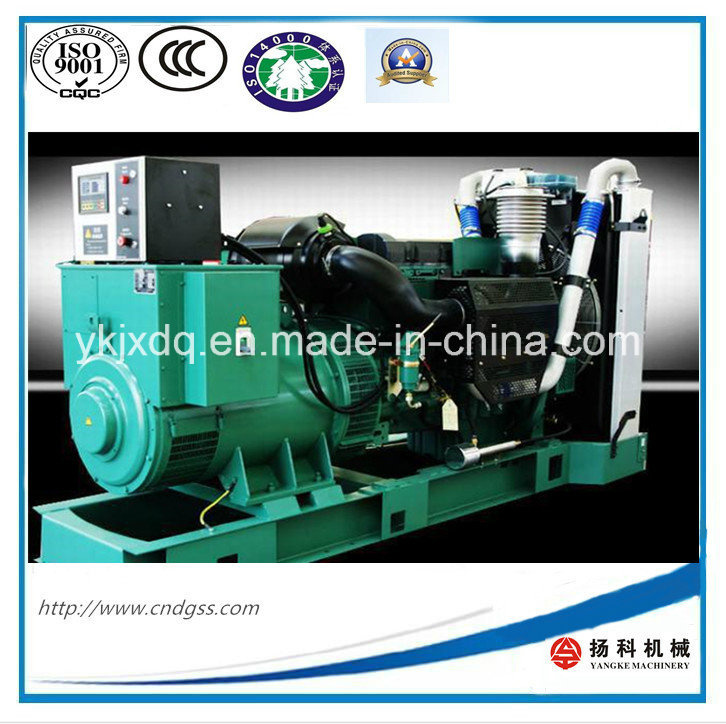

Sweden Volvo 504kw/630kVA Power Diesel Generator

1. Volvo brand diesel engine
2. OEM service from Volvo
3. Easy to operate
4. Low oil consumption


1.Gen-set
The model of the unit:	QSV-504GF
Power:	504KW/630KVA
Rated voltage:	400V/230V
Rated current:	910A (adjustable)
Rated frequency:	50Hz/60Hz
The factor of rated power	COS=0.8(lag)
The regulating rate of steady voltage:	≤±0.5%
The regulating rate of instantaneous voltage:	≤-10%/ +15%
The time of steady voltage:	≤1.5sec
The waving rate of voltage:	≤0.5%
The regulating rate of steady frequency:	≤3%
The regulating rate of instantaneous frequency:	≤±5%
The time of steady frequency:	3sec
The waving rate of frequency:	≤0.25%
The waste of fuel with full load:	205g/kw/h
size(mm):	3750*1400*2150
weight:	4200KG



2.Engine
Brand:	VOLVO
Model:		TAD1643GE
Type:		four strokes, waste gas turbine boost,direct spurting type
Cooling way:		water cooling
With Type:		Inline type
Bore *Trip :		144mm*165mm
Displacement		16.12
Lubricating oil capacity:		48L
Cylinder:		6cylinders
Rotating speed:		1500r/min or 1800r/min
The regulation of rotating speed:		E-Speed
Starting way:		DC24V starting with electricity



3.Alternator
Brand:	ComAp;Stamford;Marathon
Type:	brushless (AVR automatic voltage regulating)
The connecting way of the phase:	three phases four lines
Insulation degree:	H degree
Grading Protection:	IP21/23


Engine Feature
1.Diesel, heavy-duty, four stroke, water cooled and direct injection fuel system
2.24/12V D.C starter and charger alternator
3.Industrial capacity exhaust silencer supplied loose with flexible section
4.Engine driven cooling fan with protection guard
5.Steel wire braided fuel lines, vent and rain fittings
6.Set mounted acid battery installed with leads and terminals

Alternator Feature
1.Brushless self excited, single bearing, 4 poles
2.Class H insulation
3.IP21/23 protection standard
4.Self-exciting and self-regulating
5.Automatic voltage regulator (AVR)

Control System Feature
1.manual / auto start and protection moudle
2.Equipped with Deep Sea,ComAp,Harsen,Smartgen famous control systems.
3.New integrated controllers in manual and remote start application.
4.Featuring full gen-set monitoring and protection.
5.Powerful graphic display, Icons, symbols and bar graphs
6. High functionality set new standards in gen-set control.


Packaging & Delivery

Packaging Detail:	generator standard exporting package
Delivery Detail:	within 5-25working days after the deposit



Company Information

Yangke Machinery Electric is a high-tech generator manufacturer which contains R&D, production and marketing together.

Our company not only establishes humanized modern enterprise with perfect quality management system and certification authority, but also equipped with international advanced facilities of R&D, manufacture and test. The concept of our company is to develop the best product, to provide the best service. We will spare no effect to serve our customer with products of high quality and after-sales service in a variety of ways.


With the help of the technical strength, our company has formed a structure of product series. The current main products are: QS series 8-3000KVA brushless alternators, which can be coupled with both domestic and foreign brands of diesel engines.


We only offer products using major engine brands such as Cummins, Perkins, Doosan, MTU Diesel/Mitsubishi etc. At YANGKE, we also customize the standard models to meet your unique requirements. Our Generators are also top of the line and come with base mounted fuel tanks, battery, battery rack and cables, vibration isolators between engine/diesel generator and base frame, a circuit breaker to protect the generator from overload and a two-wire auto start ready controls for automatic transfer switch operation. (Note: Automatic Transfer Switch Required for True Auto Operation).
Our products are sold to Southeast Asia, central Asia, the Middle East, Africa and South America.



 Sales promises:
YANGKE power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested.
Warranty is according to our standard conditions :
a. 15months,counted on the day YANGKE sold to the first buyer;
b. one year after installation;
c.1000running hours(accumulated),subject to the earlier one.
Service and parts are available from YANGKE POWER or distributors in your location.


FAQ:
(1)  Your company is factory or Trade Company?
       Answer: We are professional low oil consumption diesel generator sets manufacturing factory.
(2)  Your diesel generator power range?
      Answer: Now we mainly produce QS series 8-3000kva brushless alternators.
(3)  Which brand Electrical Generator you produce?
      Answer: Now we produce USA Cummins brand Electrical Generator, Sweden Volvo Generator, Korea Doosan diesel  generator, German Deutz Electrical Generator, and China local brands' generator.
(4) Where is your main market?
     Answer: We mainly export Electrical Generators to southeast Asia, central Asia, the Middle East, Africa and South America
