Professional generator OEM factor in guangzhou
. Stock available
. Deutz generator 20kVA
. SGS, SONCUP
10kVA lovol generator self start generator
Deutz OEM Factory in City GUANGZHOU
Deutz Generator (yangdong diesel generator) power range 10-50kVA
JIUAN Generator production range as follows:
Diesel Generator Set open type or silent type (soundproof type)
Generator Diesel Engine: Cummins, Perkins, Perkins Lovol, Deutz, WeiChai, Yangdong, Quanchai, ISUZU etc.
Generator with alternator: Stamford, Marathon, Leroy Somer etc.
Rated output: 5kVA - 2000kVA
Rated frequency 50/60 Hz
Rated voltage 230/400, 220/380, according to customers
Power factor: 0.8(lag)
Super Silent type Noise level at 7m ≤ 65DB
Excitation Mode: (Brushless) Self-excitation and constant voltage (AVR)
Starting system: Electric start 12V/24V
Protection System: High water temperature protection, Engine oil alarm, Over load Protection
Overfrequency protection, Emergency stop
Control System: Digital Control Panel; Meter Panel
10kVA, 60kVA, 100kVA, 150kVA, 200kVA, 250kVA, 300kVA, 600kVA, Available
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 2000kVA
2. Deutz (Germany) 20kVA - 150kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Lovol (China) 20kVA - 150kVA
6. Yangdong (China) 8kVA - 40kVA
7. Weichai (China) 8kVA - 150kVA
8. Shanghai Engine
9. Yuchai Engine
10. KUBOTA Engine 10kVA - 50kVA
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice (brushless with AVR)
1. Stamford Newage
2. Leroy Somer
3. Marathon
4. Leateck
|

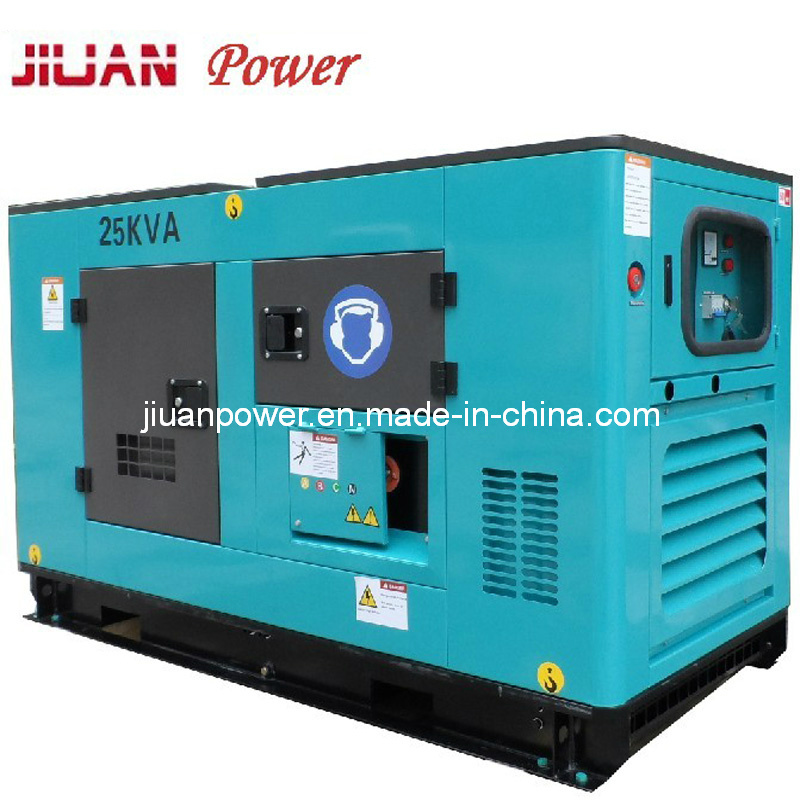

Diesel Generator Set 20 KVA |
Generator
Specifications |
Generator Model |
CD-p20KW/25KVA |
|
Generator Prime Power |
20KVA/25KW |
|
Generator Standby Power |
22kva/27.5kw |
|
Generator Engine Model |
D226B-3D |
|
Generator Alternator |
Stamford;Marathon;Leroy Somer;Faraday;Stamford copy |
|
Canopy for Choice |
Super silent;Silent;Open frame;Trailer |
|
Controller |
Smartgen or Deepsea |
|
Dimensions (L*W*H) |
2100*1000*1300mm |
|
20FT/40HQFT Container |
12PCS |
|
Generator Warranty |
1800 hours or 1 year subject to the ealier one. |
|
Generator MOQ |
1PCS |
|
Certificate |
SGS;Cummins Authorized Factory;TUV;Soncap |
|
Payment |
T/T or Cash |
|
Please give detail needs in your inquiry, so that we can make power solutions for you. |
|
MODEL |
CD-D20KW/25kva |
|
Powered by Deutz Engine |
|
Continuous Power (50HZ) |
20KW/25KVA |
|
Standby Power (50HZ) |
22KW/27.5KVA |
|
Engine Model |
D226B – 3D |
|
Engine Power (50HZ) |
31KW |
|
Engine Manufacturer |
Sino-Germany joint venture Weichai – Deutz Co.,Ltd |
|
Speed |
1500rpm |
|
Fuel Consumption |
≤ 215 g/kw.h |
|
Lubricating Oil Consumption |
≤ 1.36 g/kw.h |
|
100% Load Fuel Consumption |
6.5 Lwhen continuous power |
|
7.1 Lwhen standby power |
|
Cooling Method |
Water - cooled |
|
Starting Method |
24V DC electrical start |
|
Engine Total Dispalecment |
3.12 L |
|
Compress Ratio |
16.5:1 |
|
Bore X Stroke |
105 x 120 mm |
|
Alternator Model |
Stamford copy 184F |
|
Alternator Power |
22KW/27.5KVA |
|
Voltage |
380/220V |
|
Electric Current |
36A |
|
Power Factor |
0.8 |
|
Phase |
3-phases |
|
Brush/Brushless |
Brushless |
|
Insulation Class/Protection Grade |
H Class/IP23 |
|
G.W |
615 KGS |
|
Overall Size |
2100x960x1174 MM |
|
20FT |
6 PCS |
|
OPTIONAL |
ATS(AUTO TRANFORE SWITCH) |
|
|
Auto Battery Charger |
|
|
Base fuel tank (for open type) |
Guangzhou Jiuan Mechanical & Electrical Co., Ltd. is a professional generator manufacturer and exporter with generator capacity from 2kVA to 2000kVA. Generator can be powered by Cummins, Perkins, ISUZU, KUBOTA and Chinese engine. Welcome to chose our products and don' T hesitate to contact us.
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 1500kVA
2. Perkins (UK) 8kVA-1000kVA
3. Deutz (Germany) 20kVA - 150kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Kubota (Japanese) 7kVA-50kVA
6. Lovol (China) 20kVA - 150kVA
7. Yangdong (China) 8kVA - 40kVA
8. Weichai (China) 8kVA - 150kVA
9. Shanghai Engine
10. Yuchai Engine
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice
1. Stamford
2. Leroy Somer
3. Marathon
* Controller
1. Smartgen
2. Deepsea (UK Brand and imported)
