| Price: | US $ 6200/Piece |
|---|---|
| Trade Terms: | FOB,CFR,EXW |
| Min Order: | 1/Piece |
| Pay Type: | T/T,Western Union,Money Gram |
UK OEM Factory in Guangzhou city.
After-sales Service:
1 year or 1800 running hours subject to the earlier one.
24 hours after-sales contact number: 0086 18520604611
Contact Sales Manager
24 hours after-sales contact number: 0086 15817087202
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20KVA - 2000KVA
2. Deutz (Germany) 20KVA - 150KVA
3. (UK P) 8KVA - 2000KVA
4. ISUZU (Japanese) 20KVA - 40KVA
5. Lovol (China) 20KVA - 150KVA
6. Yangdong (China) 8KVA - 40KVA
7. Weichai (China) 8KVA - 150KVA
8. Shanghai Engine
9. Yuchai Engine
10. KUBOTA Engine 10KVA - 50KVA
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
More Diesel Generator Details:
|

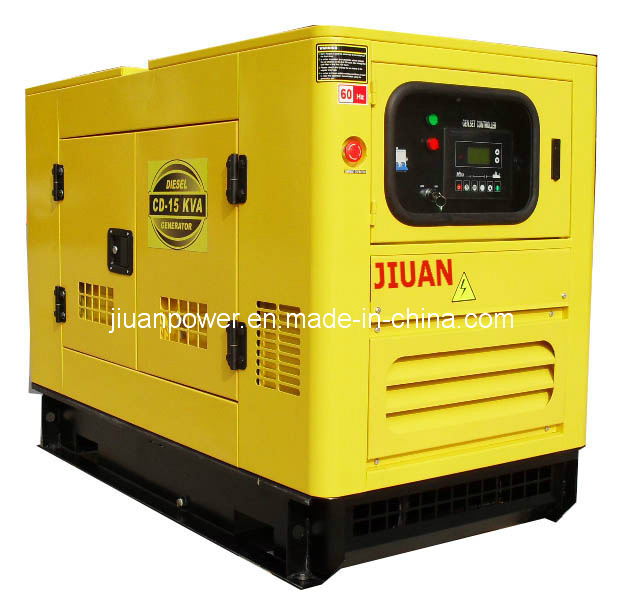

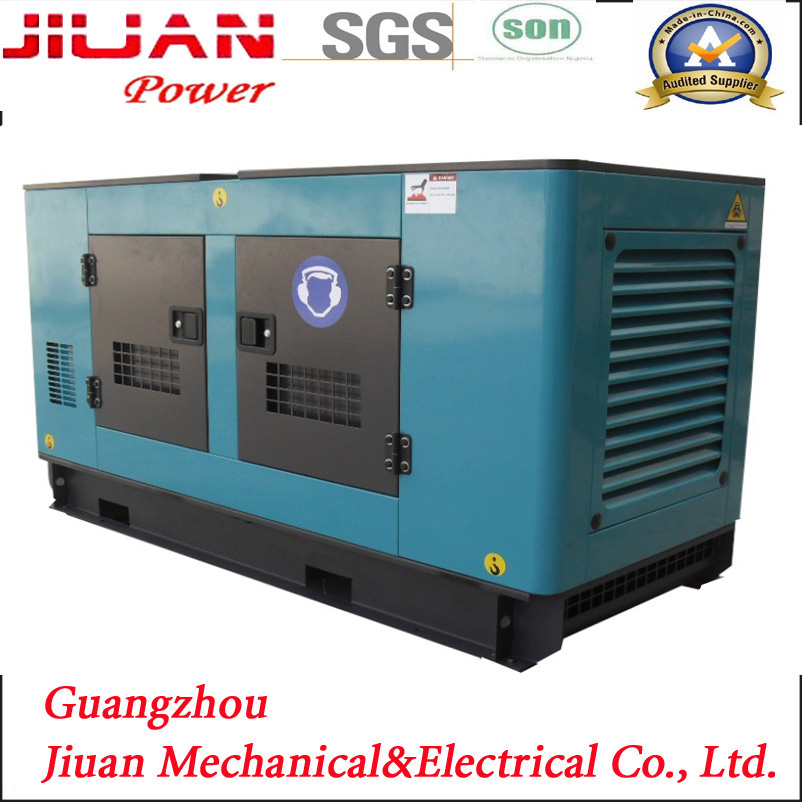

UK Diesel Generator MODEL |
CDP15KVA |
| Powered by PERKINS Engine | |
| Standby Power (50HZ) | 12KW/15KVA |
| Prime Power (50HZ) | 11KW/14KVA |
| Engine Model | Original Uk 403D-15G |
| Engine Prime Power (50HZ) | 12KW |
| Engine Standby Power (50HZ) | 13.3KW |
| Speed | 1500rpm |
| Cylinders | 3L |
| Bore x Stroke | 84 x 90 mm |
| Fuel Consumption | 3.48 L/H |
| Displacement (L) | 1.496 |
| Compression Ratio | 22.5: 1 |
| Cooling Method | Water - cooled |
| Starting Method | 12V DC electrical start |
| Alternator Model | Stamford copy 164C |
| Voltage | 220V |
| Electric Current | 39A |
| Power Factor | 0.8 |
| Phase | 3-phases |
| Brush/Brushless | Brushless |
| Insulation Grade | H |
| Protection Grade | IP23 |
| G. W | 450 KGS |
| Overall Size | 1700x960x1060 MM |
| 20FT | 12 PCS |
| OPTIONAL | ATS(auto transfer switch) |
| Auto Battery Charger | |
| AMF (auto mains failure) | |
| New canopy | |
| Prod Model: | CDP15KVA |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Portable Diesel Generator: | UK Generator |
| Portable Generator Model: | Cdp15kVA |
| Engine: | UK Engine |
| Alternator: | Stamford; Marathon;Leroy Somer |
| Control System: | Automatic LED Screen Auto Start, Auto Transfer |
| Cooling Method: | Water Cooling |
| Stroke: | Four Stroke |
| Installation Method: | Fixed |
| Type: | Basic Diesel Generator |
| Output Type: | AC Three Phase |
