Factory Directly! Professional generator OEM factory Guangzhou
. Generator stock 30kVA 15kVA 60kVA 100kVA 150kVA 200kVA Shipping at once.
. SGS, SONCUP ,ISO
1.). Description Of Generator

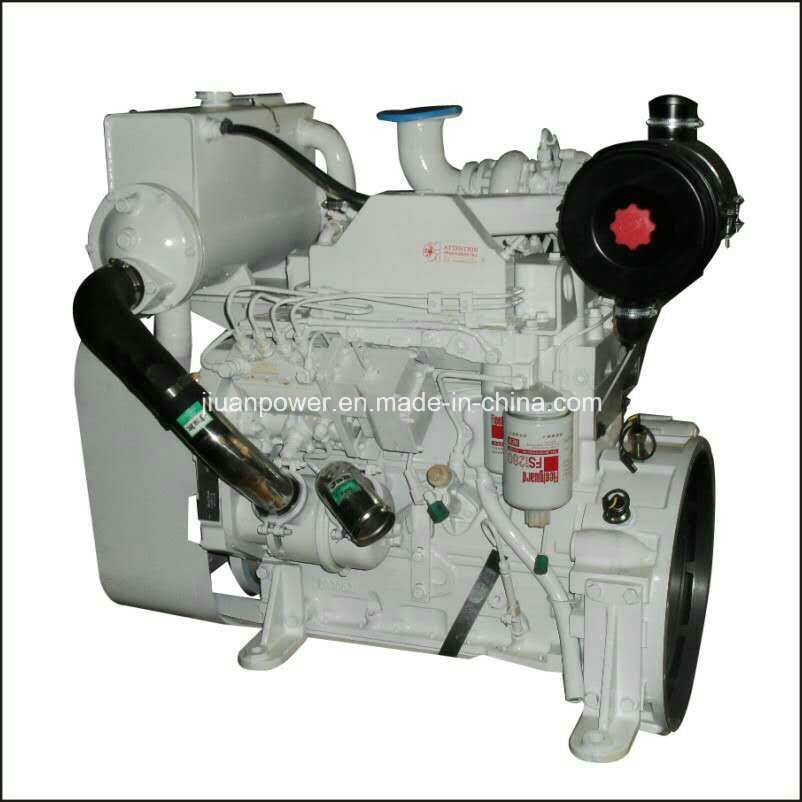

Cummins Diesel Generating Set - Model CD-C40KW/50KVA
| MODEL | CD-C40KW/50KVA |
| Powered by Cummins Engine |
| Prime Power (50HZ) | 40KW/50KVA |
| Standby Power (50HZ) | 45kw/56KVA |
| Power Factor | 0.8 (Lagging) |
| Phase Wires | 3-phases 4-Wires |
| Start Model | Electric |
| Protection | Low oil-pressure, High water temperature,
Over-speed, Over-current |
| Engine Model | DCEC Cummins 4BTA3.9-G2 4 Cycle |
| Cylinders | 4 |
| Cylinder Arrangement | L |
| Bore x Stroke(mm) | 102X 120 |
| Compression Ratio | 16.5:1 |
| Speed | 1500rpm |
| Cooling Method | Water - cooled |
| Starting Method | 24V DC electrical start |
| Full Load Diesel Consumption (L/H) | 13 |
| Engine Displacement (L) | 3.9 |
| Inspiration (L) | Natural |
| Lube Volume (L) | 14.5 |
| Coolant Volume (L) | 25 |
| Noise (Db) | ≤ 80 |
| Alternator Model | Newage Stamford UCI224D or Leadtech LTG224C |
| Alternator Power | 40KW/50KVA Brushles with AVR |
| Voltage | 380/220V,400/230V,415/240V,220/127V |
| Protection | IP23 |
| Voltage Regulation | ±4% |
| Insulation Class | H |
| Voltage Control | AVR |
| Net Weigh (KGS) | 950 |
| Dimensions (L x W x H) mm | 2300*1000*1400 (S)
2600*1100*1650 (Super Silent) |
| Controller | Smartgen 6110 or Deepsea 7320 |
| Standard | Muffler * 2PCS |
| | Battery 80A * 2 PCS |
| Optional | ATS (auto transfer switch) |
| | AMF(auto mains failure) |
| | Trailer |
1.Trade Terms of Products
| Generator Warranty | 1800 hours or 1 year subject to the earlier one. |
| Delivery Items | FOB,CNF,CIF,EXW,Delivery Guangzhou |
| Delivery Time | 15-20 days after receiving advanced payment. |
| Generator MOQ | 1PCS |
| Package | PE Film+Pearl Wool+Iron Frame (standard export packing) |
| Certificate | SGS;Cummins Authorized Factory;TUV;Son cap |
| Loading Port | Guangzhou,Shenzhen,Shanghai |
| Payment | T/T Cash or Western Union |
| Please give detail needs in your inquiry, so that we can make power solutions for you. |
3). Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20KVA - 2000KVA
2. Deutz (Germany) 20KVA - 150KVA
3. Perkins (UK) 8KVA - 2000KVA
4. ISUZU (Japanese) 20KVA - 40KVA
5. Lovol (China) 20KVA - 150KVA
6. Yangdong (China) 8KVA - 50KVA
7. Weichai (China) 8KVA - 150KVA
8. Shanghai Engine
9. Yuchai Engine
10. KUBOTA Engine 10KVA - 50KVA
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice (brushless with AVR)
1.Stamford Newage
2.Leroy Somer
3.Marathon
4.Leateck
Features of Gen.set with Cummins Engine (USA engine):
1.12 months parts warranty service
2.Short delivery time,as we always have Yangdong engine in stock
3.Spare parts are easy to get from worldwide market with much cheaper price
4.Perfect after-sales service network
5.Both 50HZ @1500rpm and 60HZ@1800rpm are available
6.Rigorous test including 50% load,100% load and 110% load
7.Stronger power with affordable price
8.China good brand engine
4.)Standard configuration of generator with China Yangdong design:
1.Original engine
2.Alternator coupled with Stamford alternator, copy Stamford alternator
3.Soundproof canopy, Super silent, open frame, Trailer mounted, Containerized
4.Controller Smartgen 6110
5.Circuit breaker CHNT
6.Base fuel tank 8 hours continuous running for soundproof type, 24 hours continuous running for super silent type.
7.Free-maintenance battery with Auto Battery Charger
8.Industrial silencer each 2 PCS per set with flexible exhaust hose.
JIUAN Genset testing items:
1. Loading testing: All qualified generator sets are subjected to a comprehensive performance test which includes 0% load, 25% load, 50% load, 100% load and 110% load to check verify that all control systems, alarm and shut-down protection.
2. Parts fault testing.
3. Fuel tank pressure testing.
4. Bolt tightening torque testing.
5. Voltage bearing and insulation testing
6. Noise level testing
3. After-sales Service
1 year or 1800 running hours subject to the earlier one.
24 hours after-sales contact number: 0086 1513956736
Guangzhou Jiuan Mechanical & Electrical Co., Ltd. is a professional generator manufacturer and exporter with generator capacity from 2kVA to 2000kVA. Generator can be powered by Cummins, Perkins, ISUZU, KUBOTA and Chinese engine. Welcome to chose our products and don' T hesitate to contact us.
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 1500kVA
2. Perkins (UK) 8kVA-1000kVA
3. Deutz (Germany) 20kVA - 150kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Kubota (Japanese) 7kVA-50kVA
6. Lovol (China) 20kVA - 150kVA
7. Yangdong (China) 8kVA - 40kVA
8. Weichai (China) 8kVA - 150kVA
9. Shanghai Engine
10. Yuchai Engine
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice
1. Stamford
2. Leroy Somer
3. Marathon
* Controller
1. Smartgen
2. Deepsea (UK Brand and imported)
