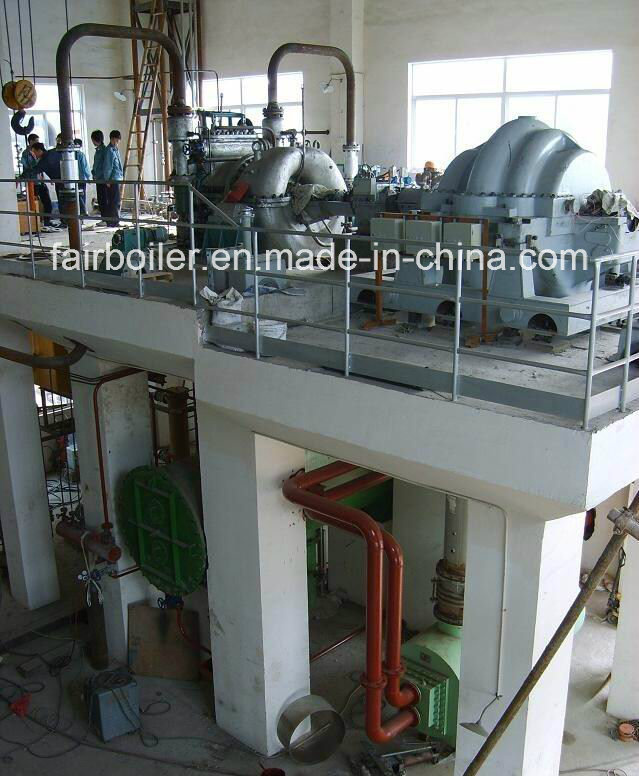

High speed steam turbine for driving pump, fans, blower, compressor, steam turbine driver;
1, Light weight, small size, high efficiency
2, wide range of speed
3, modular design, high reliability
4, available for dragging high rotate speed and high efficency, pump, blower, compressor, etc directly, and more economic. Draulidraulic governing systemstem or digital electric hyc governing sy
5, drive generator through gearbox, and available for generation 50HZ or 60HZ for two options.
6, available for full hydraulic governing system or digital electric hydraulic governing system(DEH)
NO. |
Model |
Capacity
(MW) |
Inlet |
Exhaust
Pressure
(Mpa) |
Speed
(r/min) |
Weight
(t) |
Overall
Dimensions
LxWxH(mm) |
Pressure
(MPa) |
Temp
|
1 |
N0.5-1.27 |
0.3-0.5 |
1.27-1.5 |
250-300 |
0.008 |
6500 |
|
|
2 |
N0.66-1.6 |
0.66 |
1.6 |
280 |
0.008 |
5600 |
12 |
3655x2200x1950 |
3 |
N0.75-1.27 |
0.75 |
1.27 |
340 |
0.0086 |
6500 |
14 |
3630x2250x2120 |
4 |
N1.1-2.3 |
1.1 |
2.3 |
305 |
0.008 |
6500 |
10 |
2755x2050x1943 |
5 |
N1.1-3.92 |
1.1 |
3.92 |
320 |
0.013 |
6500 |
10 |
2755x2050x1943 |
6 |
N1.5-1.27 |
1.5 |
1.27 |
300 |
0.0063 |
5600 |
12.1 |
3655x2200x1950 |
7 |
N1.5-1.27 |
1.5 |
1.27 |
340 |
0.0103 |
5600 |
25 |
4112x2652x2515 |
8 |
N1.5-2.35 |
1.5 |
2.35 |
390 |
0.0103 |
6500 |
17 |
3655x2240x2115 |
9 |
N1.5-2.35 |
1.5 |
2.35 |
390 |
0.009 |
6500 |
12.1 |
3655x2200x1950 |
10 |
N1.5-3.43 |
1.5 |
3.43 |
435 |
0.008 |
6500 |
12.1 |
3655x2200x1950 |
11 |
N1.6-2.35 |
1.6 |
2.35 |
380 |
0.0103 |
6500 |
8.5 |
2750x2020x1945 |
12 |
N1.9-2.35 |
1.9 |
2.35 |
305 |
0.008 |
4800 |
25 |
4110x2655x2510 |
13 |
N3-1.25 |
3 |
1.25 |
310 |
0.01 |
5600 |
25 |
4110x2655x2510 |
14 |
N3-2.35 |
3 |
2.35 |
390 |
0.0103 |
5600 |
25 |
4110x2655x2510 |
15 |
N3-2.35 |
3 |
2.35 |
390 |
0.0103 |
5600 |
25 |
4245x2440x1960 |
16 |
N3-2.35 |
3 |
2.35 |
300 |
0.0105 |
5600 |
25.3 |
4230x2440x1955 |
17 |
N3-3.43 |
3 |
3.43 |
435 |
0.0103 |
5600 |
25 |
4440x2400x1965 |
18 |
N3-4.9 |
3 |
4.9 |
470 |
0.008 |
6500 |
|
|
19 |
N3-3.3 |
3 |
3.33 |
435 |
0.0078 |
11580 |
8.9 |
2820x2600x1860 |
20 |
N3-0.98 |
3 |
0.981 |
300 |
0.012 |
9570 |
9.3 |
2670x3030x2120 |
21 |
N3-1.27 |
3 |
1.257 |
340 |
0.0147 |
9560 |
9.5 |
2760x3010x2120 |
22 |
N3.7-1.3 |
3.7 |
1.3 |
340 |
0.01 |
9570 |
9.8 |
2760x3030x2120 |
23 |
N4-3.43 |
4 |
3.43 |
435 |
0.012 |
5600 |
25 |
4440x2400x1965 |
24 |
N5.4-0.88 |
5.4 |
0.882 |
280 |
0.0108 |
9540 |
21.7 |
4010x4270x3280 |
25 |
N6-2.15 |
6 |
2.15 |
435 |
0.01 |
7685 |
14.7 |
3190x3510x2400 |
26 |
N6-3.43/435 |
6 |
3.43 |
435 |
0.01 |
8000 |
14.7 |
3190x3510x2400 |
27 |
N6-4.9 |
6 |
4.9 |
470 |
0.008 |
8000 |
|
|
28 |
N6.8-1.8/325 |
6.8 |
1.8 |
325 |
0.008 |
10000 |
9.9 |
2840x3460x2165 |
29 |
N7.5-8.83 |
7.5 |
8.83 |
535 |
0.012 |
9580 |
9.9 |
2840x3460x2165 |
30 |
N12-3.43/435 |
12 |
3.43 |
435 |
0.008 |
8000 |
54.3 |
4370x4840x3420 |
31 |
N13.5-1.9/315 |
13.5 |
1.9 |
315 |
0.008 |
8000 |
54.3 |
4370x4840x3420 |
32 |
N15-3.37 |
15.76 |
3.37 |
427 |
0.009 |
5520 |
54.3 |
4370x4840x3420 |
33 |
N15-4.9/470 |
15 |
4.9 |
470 |
0.008 |
8000 |
54.3 |
4370x4840x3420 |
34 |
N25-10 |
25 |
10 |
520 |
0.0176 |
7000 |
20.7 |
4410x4720x3150 |
Qingdao Global Industry Co., Ltd a professional Engineering manufacturing co, We design and supply energy power equipment and ASME certificate professional water tube boilers, fire tube boiler, solid fuel boilers and fluid fuel boilers; Steam tubine, And hot water absorption chiller, steam absorption chiller and direct fired chillers. We Located in the seaport qingdao, we offers design and engineering, procurement, construction, installation, commissioning, operation and maintenance.
Our workshop have got the ASME certificate, U, S mark, and AS1228 is available via cooperation with Australia engineering co of gov. And CE, ISO9001 etc. There are more than 700 employees in workshop, and 100 senior engineers and technicians engage in project consultancy, Engineering management, implementation, construction supervision, and other services. In recent years, our products have been successfully exported to Pakistan, Australia, Newzealand, Indonesia, Thailand, Iran, Bangladesh, Uzbekistan, Hongkong, and other overseas markets through our factory and group company.
Every equipment whole manufacturing progress under the inspection with BV, SGS, CQC.
We are sincerely looking forward to establish long-term business cooperation and good service for you.
