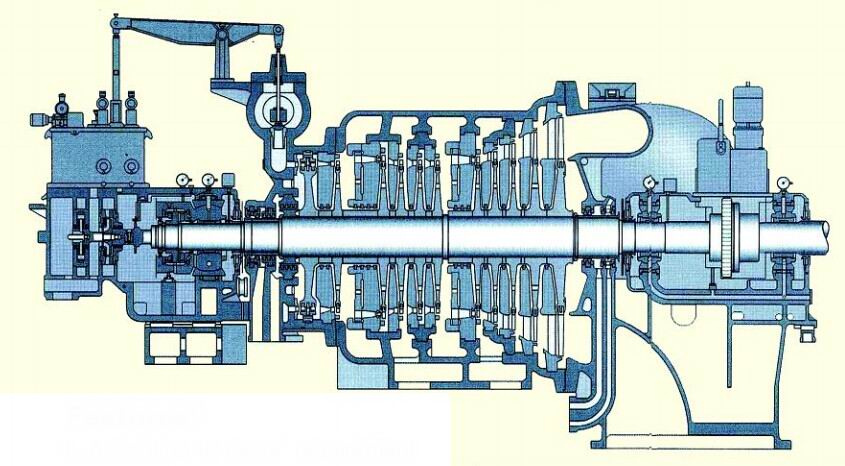

Double Extraction condensing steam turbine:
Features:
1, According to users' requirement to design steam turbine. Most used for co-generation.
2, Applicable to captive power plant and regional thermal-electric plant that not only need electric power but also adjust thermal load in a large range such as thermal-electric power, chemical industry, sugar-making, paper-making, textile, food industry.
3, Supply electric power and two different kinds of industrial steam, with electric and thermal load adjusted respectively. Can be operated in pure condensing steam conditions.
4, Adopt DEH or full hydraulic governing system.
NO. |
Model |
/
Capacity
Reted/Max
(MW) |
Inlet |
No.1 Extraction
Pressure
(MPa) |
No.2 Extraction
Pressure
(MPa) |
Exhaust
Pressure
(Mpa) |
Weight
(t) |
Overall
Dimensions
LxWxH(mm) |
Matching
Generator
Model |
Pressure
(MPa) |
Temp
|
1 |
CC6-6.4/1.5/0.5 |
6 |
6.4 |
500 |
1.5 |
0.588 |
0.0065 |
50 |
6150x4230x3650 |
QF-6-2 |
2 |
CC7-2.35/0.98/0.588 |
7 |
2.35 |
390 |
0.981 |
0.588 |
0.006 |
50 |
6150x4230x3650 |
QF-7-2 |
3 |
CC12-3.43/0.981/0.196 |
12/15 |
3.43 |
435 |
0.981 |
0.196 |
0.0049 |
54 |
6350x3599x2510 |
QF-15-2 |
4 |
CC12-3.43/0.981/0.49 |
12/15 |
3.43 |
435 |
0.981 |
0.49 |
0.0049 |
60 |
6350x3599x2510 |
QF-15-2 |
5 |
CC12-3.43/1.27/0.294 |
12/15 |
3.43 |
435 |
1.27 |
0.294 |
0.0049 |
64 |
6350x3599x2510 |
QF-15-2 |
6 |
CC12-3.43/1.27/0.49 |
12/15 |
3.43 |
435 |
1.27 |
0.49 |
0.0049 |
62 |
6250x3610x2510 |
QF-15-2 |
7 |
CC12-3.43/1.57/0.294 |
12/15 |
3.43 |
435 |
1.57 |
0.294 |
0.0049 |
62 |
6250x3610x2510 |
QF-15-2 |
8 |
CC12-3.43/1.57/0.49 |
12/15 |
3.43 |
435 |
1.57 |
0.49 |
0.0049 |
62 |
6250x3610x2510 |
QF-15-2 |
9 |
CC12-3.43/1.67/0.785 |
12/15 |
3.43 |
435 |
1.67 |
0.785 |
0.0049 |
63 |
6905x3970x3050 |
QF-12/15-2 |
10 |
CC12-3.43/2/1 |
12 |
3.43 |
435 |
2 |
1 |
0.0071 |
62 |
6250x3610x2510 |
QF-12-2 |
11 |
CC12-4.9/0.686/0.294 |
12/15 |
4.9 |
435 |
0.687 |
0.294 |
0.0049 |
65 |
6350x3600x2505 |
QFW-12/15-2 |
12 |
CC12-4.9/0.785/0.49 |
12 |
3.43 |
435 |
0.785 |
0.49 |
0.0049 |
62 |
6350x3600x2505 |
QF-15-2 |
13 |
CC12-4.9/0.981/0.294 |
12/15 |
4.9 |
435 |
0.981 |
0.294 |
0.0049 |
64 |
6350x3600x2505 |
QF-15-2 |
14 |
CC12-4.9/0.981/0.49 |
12/16 |
4.9 |
435 |
0.981 |
0.49 |
0.0049 |
64 |
6350x3600x2505 |
QF-15-2 |
15 |
CC12-4.9/1.27/0.294 |
12/17 |
4.9 |
435 |
1.27 |
0.294 |
0.0049 |
66 |
6350x3610x2510 |
QF-15-2 |
16 |
CC12-4.9/1.27/0.49 |
12/18 |
4.9 |
435 |
1.27 |
0.49 |
0.0049 |
64 |
6350x3610x2510 |
QF-15-2 |
17 |
CC12-4.9/1.57/0.294 |
12/19 |
4.9 |
435 |
1.57 |
0.294 |
0.0049 |
64 |
6350x3610x2510 |
QF-15-2 |
18 |
CC12-4.9/1.57/0.49 |
12/20 |
4.9 |
435 |
1.57 |
0.49 |
0.0049 |
64 |
6350x3610x2510 |
QF-15-2 |
19 |
CC12-4.9/1.67/0.883 |
12/21 |
4.9 |
470 |
1.67 |
0.883 |
0.0049 |
66 |
6900x3970x3015 |
QF-12/15-2 |
20 |
CC12-6.1/1.4/0.5 |
12 |
6.1 |
470 |
1.4 |
0.588 |
0.0063 |
62 |
6250x3610x2510 |
QF-12-2 |
21 |
CC15-3.43/1.57/0.687 |
15 |
3.43 |
435 |
1.57 |
0.687 |
0.0049 |
60 |
6250x3600x2510 |
QF-15-2 |
22 |
CC15-4.90/0.981/0.49 |
15 |
4.9 |
435 |
0.981 |
0.49 |
0.0049 |
68 |
6805x3600x2625 |
QF-15-2 |
23 |
CC15-4.9/1.27/0.785 |
15/18 |
4.9 |
435 |
1.27 |
0.785 |
0.0049 |
68 |
6805x3600x2625 |
QFW-15/18-2 |
24 |
CC15-3.43/0.981/0.49 |
15 |
3.43 |
435 |
0.981 |
0.49 |
0.007 |
54 |
6150x3595x2505 |
QF-15-2 |
25 |
CC15-8.83/1.96/0.981 |
15 |
8.83 |
535 |
1.96 |
0.981 |
0.0053 |
62 |
6250x3610x2510 |
QF-15-2 |
26 |
CC20-4.9/1.27/0.294 |
20 |
4.9 |
435 |
1.27 |
0.294 |
0.0045 |
55 |
6750x4450x2700 |
QF-20-2 |
27 |
CC25-8.83/1.3/0.9 |
25 |
8.83 |
535 |
1.3 |
0.9 |
0.0049 |
68 |
8180x4420x2850 |
QF-25-2 |
28 |
CC25-8.83/2.16/0.981 |
25/30 |
8.83 |
535 |
2.16 |
0.981 |
0.0049 |
68 |
7800x4420x2850 |
QF-30-2 |
29 |
CC25-8.83/3.92/0.981 |
25/30 |
8.83 |
535 |
3.92 |
0.981 |
0.0049 |
68 |
8180x4420x2850 |
QF-30-2 |
30 |
CC25-8.83/3.92/1.18 |
25 |
8.83 |
535 |
3.92 |
1.18 |
0.004 |
68 |
8180x4420x2850 |
QF-25-2 |
31 |
CC25-9.8/3.82/0.196 |
25 |
9.8 |
540 |
3.82 |
0.196 |
0.0043 |
68 |
8180x4420x2850 |
QF-25-2 |
