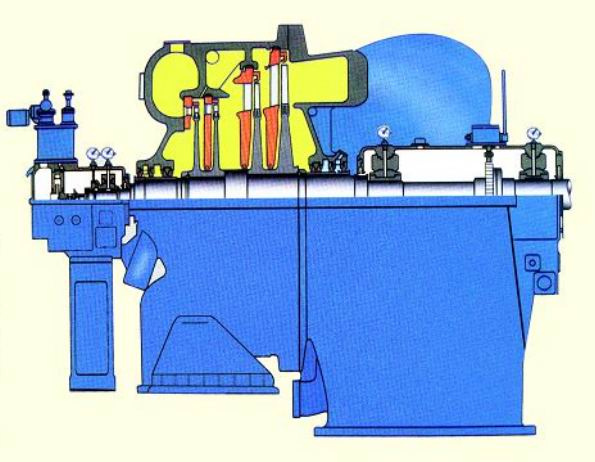

Low Parameter Steam Turbine

Name: Low Parameter Steam Turbine
Brand: aboutgenerator.com
SKU: 744970825
Availability: InStock
Rating: 4.3 (138 reviews)

Price:	US $ 150000-650000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Money Gram,Western Union

Contact Supplier

Qingdao Global Industry Co., Ltd.

Showroom Product Company Profile

Waste-steam low parameter steam turbine:

According to users's requirments to design steam turbine.
Mainly applicable to captive power plant and the med-small thermal power plant such as cement, chemical industry, metallurgy, coke, glass, waste cremation industry. Make full use of the waste steam (low parameter)
In the production process.

Optimized construction, easy to install, operating reliably, efficient and energy-saving.

NO.	Model	Capacity (MW)	Speed (r/min)	Inlet			Exhaust Pressure (Mpa)	Weight (t)	Overall Dimensions LxWxH(mm)
NO.	Model	Capacity (MW)	Speed (r/min)	Pressure (MPa)	Dryness	Temp	Exhaust Pressure (Mpa)	Weight (t)	Overall Dimensions LxWxH(mm)
1	S1.0-0.3	1	3000	0.3		200	0.008	14.6	3220x2150x1750
2	S1.3-0.36	1.3	3000	0.36		180	0.013	18.2	4550x2300x2600
3	S1.5-0.14	1.5	3000	0.14	0.995		0.0072	18.7	3200x2300x2532
4	S1.5-0.16	1.5	3000	0.16	0.995		0.0088	18.7	3200x2300x2532
5	S1.5-1.7	1.5	3000	1.7		240	0.098	9.8	4120x2650x2530
6	S2-0.6	2	5600	0.6		275	0.0061	12	4257x2145x2375
7	S2.6-1.08	2.6	3000	1.08	0.995		0.009	17.7	3500x2850x2500
8	S3-0.5	3	3000	0.5	0.995		0.009	16	3250x2850x2500
9	S3-0.5	3	3000	0.5		230	0.009	16	3250x2850x2500
10	S3-0.5	3	3000	0.5		270	0.008	15.7	3500x2250x1750
11	S3.69-1.27	3.69	3000	1.27		300	0.007	17.7	3500x2850x2500
12	S3.9-1.08	3.9	3000	1.08	0.995		0.009	17.7	3500x2850x2500
13	S4-0.5	4	3000	0.5		230	0.01	16.3	3300x2840x2500
14	S5-1.0	5	3000	1		260	0.01	17.9	3510x2830x2485
15	S6-0.5	6	3000	0.5		230	0.01	38.1	5000x3900x2610
16	S6-0.5	6	3000	0.5	0.995		0.01	38.1	5000x3900x2610
17	S6-1.0	6	3000	1		230	0.009	42.1	5160x3900x2600
18	S6-1.0	6	3000	1	0.995		0.01	42.1	5160x3900x2600
19	S8-1.0	8	3000	1		260	0.01	42.9	5160x3900x2600
20	S8-1.0	8	3000	1	0.995		0.01	42.9	5160x3900x2600
21	S9-1.35	9	3000	1.35		310	0.005	43.2	5190x3900x2590
22	S10-0.981	10	3000	0.981		300	0.008	43.9	5200x3900x2590
23	S10-1.0	10	3000	1		260	0.01	43.8	5160x3900x2600
24	S10-1.0	10	3000	1	0.995		0.01	43.9	5160x3900x2600
25	S12-0.785	12	3000	0.785		415	0.0073	45	5205x3770x2450
26	S12-1.0	12	3000	1	0.995		0.01	42.9	5160x3900x2600
27	S12-1.25	12	3000	1.25		315	0.01	39.1	4910x3900x2600

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Manufacturing:	GB / Asme / En / Bs
Model:	as Request
Inspection:	SGS, BV
Capacity:	1-200MW

Qingdao Global Industry Co., Ltd a professional Engineering manufacturing co, We design and supply energy power equipment and ASME certificate professional water tube boilers, fire tube boiler, solid fuel boilers and fluid fuel boilers; Steam tubine, And hot water absorption chiller, steam absorption chiller and direct fired chillers. We Located in the seaport qingdao, we offers design and engineering, procurement, construction, installation, commissioning, operation and maintenance.

Our workshop have got the ASME certificate, U, S mark, and AS1228 is available via cooperation with Australia engineering co of gov. And CE, ISO9001 etc. There are more than 700 employees in workshop, and 100 senior engineers and technicians engage in project consultancy, Engineering management, implementation, construction supervision, and other services. In recent years, our products have been successfully exported to Pakistan, Australia, Newzealand, Indonesia, Thailand, Iran, Bangladesh, Uzbekistan, Hongkong, and other overseas markets through our factory and group company.

Every equipment whole manufacturing progress under the inspection with BV, SGS, CQC.

We are sincerely looking forward to establish long-term business cooperation and good service for you.
