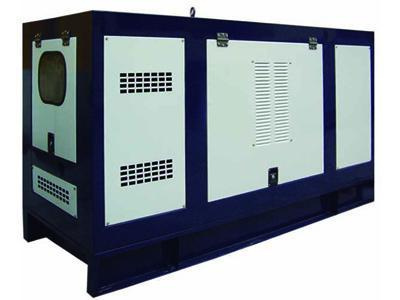

Soundproof diesel generator
Low noise level
Professional test equipment
High temperature operation
Low operation cost.
High performance:
1.Multi-way air intake and exhaust guarantee the power performance of the genset.
2.Internal high performence of rubber damper and flexible meterials reduce viberation
3.Large scale impedance combined type silencer effectively reduce the noise
4.Fuel tank supports the genset running for 8 hours.
Construcion features:
1.Cold steel materials
2.Metal parts are coated with electrostic Powder paint
3.Stainless steel locks and hinges
4.Access to all weather conditions
5.Fireproof, waterproof and dustproof
6.Sound-absorbing, fire-retardant cotton
7.High quality soundproof merials could effectively reduce noise.
Security and Safety:
1.Transparent viewing window make the control panel clear at a glance
2.Emergency stop button mounted on the canopy exterior
3.Fuel fill and battery can easy be accessed by lockable door
4.Cooling fliud injection hole is kept on ceiling crust
5.Pipe of lube oil and coolant is mounted on the bottom of genset for easy control
6.Cooling fan and battery are fully guarded
7.Heat insulation of exhaust smoke system inside the canopy
8.Key/Automatic start
9.Fire extingushers are easily got at the door.
Package:
Plywood case or as costomers requirements
Generator general datas:
1)engine models:Imported engine (Volvol, Dawoo etc) or technology introduced engine(Cummins, Duetz, Mitsubishi, etc)
2)Famous brand AC Alternator:Stamford, MARTHON, Shanhua, etc
3)Easy assembly, operation and maintenance
4)Strong anti-interference capability available to provide a perfect reliable protection system
5)Each units is produced on most advanced technology and strictly quality control
6)Optional ATS(Automatic Transmission Switch) canbus and RS232/RS485, PC remote control.
Starting system
Electric starting(DC24V )
Governing method
Electrical governor
Cooling system
Closed water-cooled
No of cylinder
6 cylinders in-line
Inspiration method
Turbo-charged
Fuel consumption(g/kw.H)
205.
AC Alternator
Alternator model
Stamford/Marathon/other
Excitation mode
Brushless
Insulation class
H
Protection class
IP22
Factor
0.8(Lagging.
Phase/Wires
3 phase 4 wire
Diesel Genset
Net weight(Kg)
2580
Overall dimention(LxWxH) (mm)
2700x880x1430
14) Weight:2, 050kg.
Established in 2000, we are manufacturers specializing in generators being exported to abroad. Our main products are diesel generators, diesel engines, automatic water pump sets, excavators, tractors and other related products.
Under "YIDANENG" brand, our main products include 2100 series 495, 4100 series, 4105 series, 6105 series, 6113 series and 6126 series diesel generators. Our diesel generators and automatic water pump sets are from 12kW to 1, 000kW, selecting international diesel engines of Deutz, Steyr, Cummins, Perkins, Volvo, Mtu series and domestic famous generators of Stamford and Marathon.
Our products are best price with high quality. Our products are widely accepted in Southeast Asia, the Middle East, South America, Africa and other countries.
