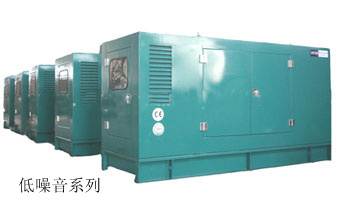

Soundproof diesel generator Specification:
Engine: Cummins, Duetz, Ricardo. Weifang, Lovol
Alternator; Shanghai Stamford
Cooling: Water Cooled
Key start / auto start, low noise (65-75dB)
6) Control system:
A) Automatic alarm system: The unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
B) Operation display:
I) Unit voltage, tri-phase load current and frequency display
Ii) Water temperature, oil pressure display
Iii) Fuel level, fuel temperature display
Iv) Audible and visual alarm lamps and buzzers
Standard configuration of gensets:
1) Engine model: R4105ZD
2) Alternator model: MP-50
3) Rated output: 50kW (62.5KVA)
4) Closed cooling
5) Fuel consumption: 220g/kWh
6) Prepare output: 56kW (70KVA)
7) Rated voltage: 230 / 400V
8) Rated current: 90.2A
9) Power factor: 0.8 lagging
10) Connection type: 3-phase, 4-wire
11) Rated frequency: 50 / 60Hz
12) Excitation way: Brush or brushless
13) Rotating speed: 1, 500/1, 800rpm
14) Overall dimensions: 2, 900 x 1, 200 x 1, 700mm
15) Weight: 1, 880kg
16) Accessories: Exhaust elbow, bellow, muffler
17) Supply standard collocation:
A) Diesel engine with all accessories, 3 filters and electric systems
B) Alternator
C) Steel structure
D) Fan and water tank cooling system
E) Flange connector
F) 12 / 24V starting motor and charge engine
G) Air cleaner, fuel cleaner, oil cleaner
H) On-board control panel
I) MCCB air conservation switch
J) 12 / 24V starting accumulator and battery line
K) Set shock absorber
L) High-efficient silencer
Established in 2000, we are manufacturers specializing in generators being exported to abroad. Our main products are diesel generators, diesel engines, automatic water pump sets, excavators, tractors and other related products.
Under "YIDANENG" brand, our main products include 2100 series 495, 4100 series, 4105 series, 6105 series, 6113 series and 6126 series diesel generators. Our diesel generators and automatic water pump sets are from 12kW to 1, 000kW, selecting international diesel engines of Deutz, Steyr, Cummins, Perkins, Volvo, Mtu series and domestic famous generators of Stamford and Marathon.
Our products are best price with high quality. Our products are widely accepted in Southeast Asia, the Middle East, South America, Africa and other countries.
