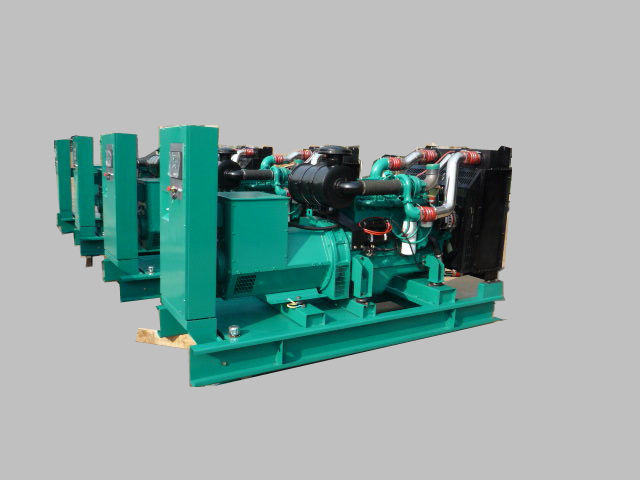

Cummins diesel generator Specifications:
1) Output range: 18kW (50KVA) up to 800kW (1, 000KVA),
2) Engine model: 4BTA3.9-G, 6BT5.9-G, 6BTA5.9-G, 6BTAA5.9-G, 6CTAA8.3-G, NTA855-G, KTA19-G, KTAA19-G, KT38-G, KTA38-G, KTA50-G
3) Alternator: Stamford, Leroy Somer, Marathon series
4) Water-cooled
5) 8hrs operation base tank
6) Key start / auto start
7) Sound-proof / weather-proof canopy is optional
8) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires alternating current output
9) Frequency: <3%
10) Frequency at stable state: <0.5%
11) Frequency deviation at instantaneous state: ≤ +10%
12) Frequency return time: ≤ 3s
13) Voltage deviation at stable state: ≤ ± 1%
14) Voltage deviation at instantaneous state: ≤ +20%
15) Voltage return time: ≤ 4s
16) Voltage modulation: ≤ 0.3%
17) Standard configuration of gensets:
A) Engine: Cummins diesel engine
B) Engine type: Water-cooled, in line four-stoke, Humit cylinder liner, Direct injection
C) Alternator: Marathon brushless alternator
18) Control system:
A) Automatic alarm system: The unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
B) Operation display:
I) Unit voltage, tri-phase load current and frequency display
Ii) Water temperature, oil pressure display
Iii) Fuel level, fuel temperature display
Iv) Audible and visual alarm lamps and buzzers
19) Starting system: DC alternator is used to start engine
20) Short circuit protection: MCCB air switch
21) Cooling system: Combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40° C
22) Filter system: Oil, fuel and air filter
23) Accessories: Exhaust elbow, bellow, muffler
24) Supply standard collocation:
A) Diesel engine with all accessories, 3 filter, electric systems
B) Alternator
C) Steel structure
D) Fan and water tank cooling system
E) Flange connector
F) 12 / 24V starting motor and charge engine
G) Air cleaner, fuel cleaner, oil cleaner
H) On-board control panel
I) MCCB air conservation switch
J) 12 / 24V starting accumulator and Battery line
K) Set shock absorber
Established in 2000, we are manufacturers specializing in generators being exported to abroad. Our main products are diesel generators, diesel engines, automatic water pump sets, excavators, tractors and other related products.
Under "YIDANENG" brand, our main products include 2100 series 495, 4100 series, 4105 series, 6105 series, 6113 series and 6126 series diesel generators. Our diesel generators and automatic water pump sets are from 12kW to 1, 000kW, selecting international diesel engines of Deutz, Steyr, Cummins, Perkins, Volvo, Mtu series and domestic famous generators of Stamford and Marathon.
Our products are best price with high quality. Our products are widely accepted in Southeast Asia, the Middle East, South America, Africa and other countries.
