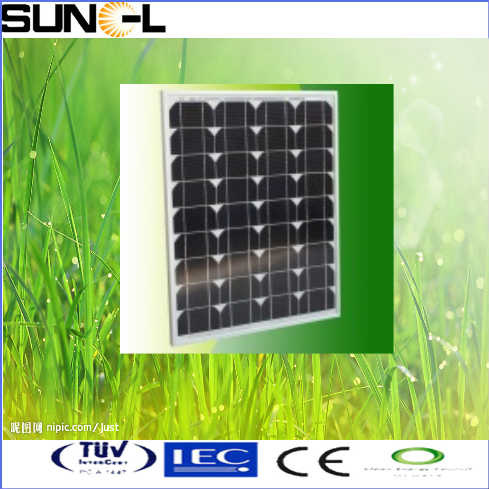

Solar Panel(SNM-M10)
Specifications:
PV module with 10 watt maximum power
Cell: Monocrystalline silicon solar cells, 125mm x 125mm
Number of cells and connections: 36PCS
Application: DC 12V system
Max. System voltage: 715V DC
Power tolerance: +/-5%
Surface max. Load capacity: 60m/s (200kg/sqm)
Weight: 1.7kg
Dimensions: 383x 299 x 34mm
Electrical characteristics:
Max. Power: 10wp
Open circuit voltage (V): 21.96
Short circuit current (A): 0.63
Max. Power voltage (V): 17.52
Max. Power current (A): 0.57
Temperature coefficients of lsc (%): 0.08+/-0.01
Temperature coefficients of Voc (%): -0.33+/-0.02
Temperature coefficients of Pm (%): -0.5+/-0.05
Temperature coefficients of lm (%): 0.06+/-0.01
Temperature coefficients of Vm (%): -0.2+/-0.02
Module efficiency (%): >=7.0
Conditions (STD):
Irradiance: 1, 000W/sqm
Temperature: 25 Degree
Absolute maximum rating:
Operating temperature: -40 to +80 Degree
Storage temperature: -40 to +80 Degree
Zhejiang Sunenergy Co., Ltd is a professional solar products manufacturer and sales in China. The company began the production of solar photovoltaic R & D since 2002. It consists of a group of professionals with a lot of experience and long careers in the field of photovoltaic energy.
Now the production line is in capacity of 120 MW per year. Besides., our factory also was bulit the production line of controller and inverter major solar products series in 2005.
Our factory can supply the solar panel both mono solar panel and poly solar panel, solar controller, solar inverter and design the solar system. Sun Energy has obtained its CE. Rosh. TUV. IEC certifications for its core modules...
With Company in Shanghai, China and Hong Kong branches and offices and Agency in Indonesia, We have taken part in the large project in European countries and USA possitively since the year of 2007 and have made our products well accepted in these regions.
Sun energy will bring you a new business success!
