Single Phase Small Electric AC Motors 220V

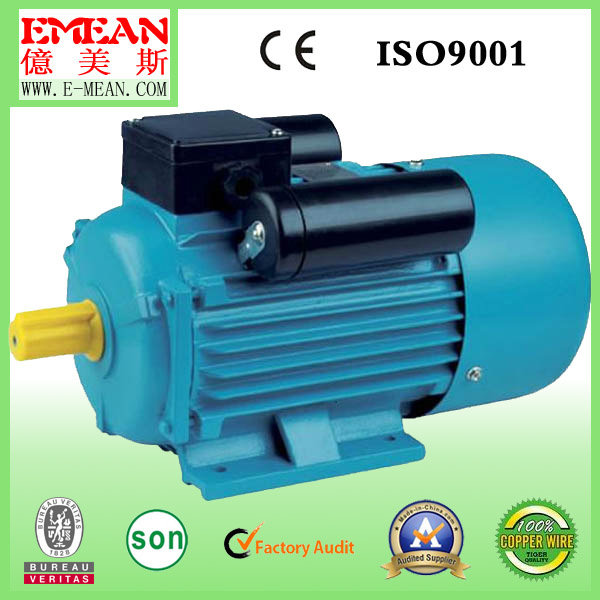

YC Single Phase Motor

1)OEM, Best Factory Price
2) Quality First, Service First
3) One year warranty
4) ISO9001: 2008, CE, SGS Certificate

Products Induction

--YC Series Heavy-duty Single-phase Induction Motor are suitable for small size machine tools and water pumps, especially for family workshops where only singe-phase power supply is available. YC motor are integrated with up-to-date design, totally enclosed and fan-cooling type. They are newly designed in conformity with the relevant requirements / rules of IEC standards.

--YC Motor have the advantage of high efficiency, long working life, energy saving, high starting torque, low noise, small vibration, low temperature rising, reliable operation performance, easy & convenient maintenance. Fixing measurement and power grade completely conform to IEC standards.

--YC Motor are capacitor starting when rated outputs is 3HP or below, within rated voltage and 50 Hz, the starting torque is three times more than the rated torque and 60 Hz is 2.75 times more; Motors for 4 HP or over are of capacitor starting and run type.

--The Connection-strap connection of YC motor must correspond to voltage.

Products Standard
Motor product labeling confirms to the following rules: Series Code + Frame Size + Iron Core Length No. + Motor Poles

Example: YC 90 S - 2

YC_means induction motor
90_the second part means the height of motor center (when the motor has no foot, it is same to motor with foot)
S_the third part means the base iron core length no. (S-Short Base, M-Medium Base, L-Long Base)
2_the forth part means the motor poles, this is a 2 poles motor, synchronous speed is 3000 r/min (50Hz); 3600 r/min (60Hz)

Service Conditions
--Ambient Temperature: -15° C~40° C
--Altitude: Not exceed 1000 Meter
--Rated Voltage: 110-240V
--Rated Frequency: 50Hz/60Hz
--Protection Class: IP44, IP54, IP55
--Insulation Class: B/F
--Cooling Method: IC0141
--Working Duty: S1(Continuous)
-- Humidity: Lower than 90%
--Connection: Star-connection for up to 3kW; Delta-connection for 4kW and above

Model	Power		Current  (A)	Power Factor	Eff  (%)	Speed  (r/min)	Tstart/Tn	Tmax/Tn	Ist/IN
	kW	HP
YC711-2	0.18	1/4	1.9	0.7	63	2800	3	6.5	2
YC712-2	0.25	1/3	2.4	0.72	65	2800	3	6.5	2
YC80A-2	0.37	1/2	3.5	0.74	66	2840	3	6.5	2
YC80B-2	0.55	3/4	5.04	0.74	67	2850	3	6.5	2
YC80C-2	0.75	1	6.68	0.75	68	2850	3	6.5	2
YC90S-2	1.1	1.5	8.93	0.8	70	2850	2.8	7	2
YC90L-2	1.5	2	11.4	0.82	73	2870	2.8	7	2
YC100L-2	2.2	3	16.5	0.82	74	2900	2.5	7	2
YC112M1-2	3	4	21.4	0.84	76	2900	2.2	7	2
YC112M2-2	3.7	5	24.8	0.86	79	2900	2.2	7	2
YC711-4	0.12	1/6	1.9	0.58	48	1400	3	6	2
YC712-4	0.18	1/4	2.7	0.6	50	1400	3	6	2
YC80A-4	0.25	1/3	3.52	0.62	52	1400	3	6	2
YC80B-4	0.37	1/2	4.69	0.64	56	1400	3	6	2
YC80C-4	0.55	3/4	6	0.65	60	1400	3	6	2
YC90S-4	0.75	1	7.5	0.72	63	1400	2.8	6.5	2
YC90L-4	1.1	1.5	10.4	0.72	67	1420	2.8	6.5	2
YC100L-4	1.5	2	13	0.73	72	1440	2.8	6.5	2
YC112M-4	2.2	3	18.5	0.74	73	1450	2.5	6.5	2
YC132S1-4	3	4	22.4	0.8	76	1450	2.2	6.5	2
YC132S2-4	3.7	5	26	0.82	79	1450	2.2	6.5	2
