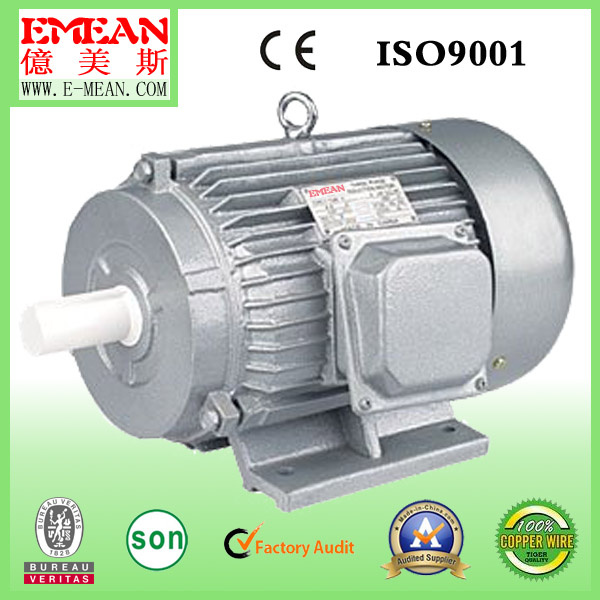

Y Series Small Three-Phase AC Electric Motor 220V

Name: Y Series Small Three-Phase AC Electric Motor 220V
Brand: aboutgenerator.com
SKU: 689349322
Availability: InStock
Rating: 4.4 (79 reviews)

Price:	US $ 66-90/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T

Contact Supplier

Fuzhou Emean Electric Machinery Co., Ltd.

Showroom Product Company Profile

Feature: Y series three phase induction motors / AC electric motors / pump motors are with outstanding performance, such as High efficiency, energy-saving, High starting torque, low noise, little vibration, reliablw operation, easy maintance, etc.

Usable range: Y series motors are widely used in places where not exists combustible, explosive or corrosive gas, and without any special requirements, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery, food machines, etc.

Protection Class: IP44, IP55, IP56 Insulation Class: B, F, H
Rated Volt: 220/380V; 380/660V Cooling Type: ICO141
Rated Frequency: 50Hz(60Hz) Operation Type: S
Frame: Cast iron, cast aluminum, aluminum alloy. Steel plate

Technical Data

Type	Power		Voltage (V)	Current (A)	Speed (r/min)	Eff (%)	Power Factor (cosΦ )
Type	Hp	kW	Voltage (V)	Current (A)	Speed (r/min)	Eff (%)	Power Factor (cosΦ )
Y80M 1 -2	1	0.75	380	1.8	2830	75	0.84	2.2	6.5	2.3
Y80M 2 -2	1.5	1.1	380	2.5	2830	77	0.86	2.2	7.0	2.3
Y90S-2	2	1.5	380	3.4	2840	78	0.85	2.2	7.0	2.3
Y90L-2	3	2.2	380	4.8	2840	80.5	0.86	2.2	7.0	2.3
Y100L-2	4	3	380	6.4	2870	82	0.87	2.2	7.0	2.3
Y112M-2	5.5	4	380	8.2	2890	85.5	0.87	2.2	7.0	2.3
Y132S 2 -2	7.5	5.5	380	11.1	2900	85.5	0.88	2.0	7.0	2.3
Y132S 2 -2	10	7.5	380	15.0	2900	86.2	0.88	2.0	7.0	2.3
Y160M 1 -2	15	11	380	21.8	2930	86.2	0.88	2.0	7.0	2.3
Y160M 2 -2	20	15	380	29.4	2930	88.2	0.88	2.0	7.0	2.3
Y160L-2	25	18.5	380	35.5	2930	89	0.89	2.0	7.0	2.2
Y180M-2	30	22	380	42.2	2940	89	0.89	2.0	7.0	2.2
Y200L 1 -2	40	30	380	56.9	2950	90	0.89	2.0	7.0	2.2
Y200L 2 -2	50	37	380	69.8	2950	90.5	0.89	2.0	7.0	2.2
Y80M 1 -2	0.75	0.55	380	1.5	1390	73	0.76	2.4	6.0	2.3
Y80M 2 -2	1	0.75	380	2.0	1390	74.5	0.76	2.3	6.0	2.3
Y90S-4	1.5	1.1	380	2.8	1400	78	0.78	2.3	6.5	2.3
Y90L-4	2	1.5	380	3.7	1400	79	0.79	2.3	6.5	2.3
Y100L 1 -4	3	2.2	380	5.0	1430	81	0.82	2.2	7.0	2.3
Y100L 2 -4	4	3	380	6.8	1430	82.5	0.81	2.2	7.0	2.3
Y112M-4	5.5	4	380	8.8	1440	84.5	0.82	2.2	7.0	2.3
Y132S-4	7.5	5.5	380	11.7	1440	85.5	0.84	2.2	7.0	2.3
Y132SM-4	10	7.5	380	15.4	1440	87	0.85	2.2	7.0	2.3
Y160M-4	15	11	380	22.6	1460	88	0.84	2.2	7.0	2.3
Y160M-4	20	15	380	30.3	1460	88.5	0.85	2.2	7.0	2.3
Y180M-4	25	18.5	380	35.9	1470	91	0.86	2.0	7.0	2.2
Y180L-4	30	22	380	42.5	1470	91.5	0.86	2.0	7.0	2.2
Y200L-4	40	30	380	56.8	1470	92.2	0.87	2.0	7.0	2.2
Y90S-6	1	0.75	380	2.3	910	72.5	0.70	2.0	5.5	2.2
Y90L-6	1.5	1.1	380	3.2	910	73.5	0.72	2.0	5.5	2.2
Y100L-6	2	1.5	380	4.0	940	77.5	0.74	2.0	6.0	2.2
Y112M-6	3	2.2	380	5.6	940	80.5	0.74	2.0	6.0	2.2
Y132S-6	4	3	380	7.2	960	83	0.76	2.0	6.5	2.2
Y132M 1 -6	5.5	4	380	9.4	960	84	0.77	2.0	6.5	2.2
Y132 2 -6	7.5	5.5	380	12.6	960	85.3	0.78	2.0	6.5	2.0
Y160M-6	10	7.5	380	17.0	970	86	0.78	2.0	6.5	2.0
Y160L-6	15	11	380	24.6	970	87	0.78	2.0	6.5	2.0
Y180L-6	20	15	380	31.4	970	89.5	0.81	1.8	6.5	2.0
Y200L 1 -6	25	18.5	380	37.7	970	89.8	0.83	1.8	6.5	2.0
Y200L 2 -6	30	22	380	44.6	970	90.2	0.83	1.8	6.5	2.0
Y160M 1 -8	5.5	4	380	9.9	720	84	0.73	2.0	6.0	2.0
Y160M 2 -8	7.5	5.5	380	13.3	720	85	0.74	2.0	6.0	2.0
Y160L-8	10	7.5	380	17.3	720	86	0.75	2.0	6.5	2.0
Y180L-8	15	11	380	24.8	730	87.5	0.77	1.7	6.0	2.0
Y200L-8	20	15	380	34.1	730	88	0.76	1.8	6.0	2.0

Prod Model:	Y100L2-4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Series:	Y
Phases:	Three Phase
Voltage:	380V
Frequency:	50Hz
Eff:	92%
Output:	3/4~40HP
Power Factor:	0.8
Output Type:	AC Three Phase

Fuzhou Emean Electric Machinery Co., Ltd. is one of the biggest enterprises, lies in "China Electrical Machinery and Appliances City"--Fuan. EMEAN is a private enterprise established in 2003, which is a comprehensive electrical machinery manufacturing company integrating product designs, production, marketing and service.

Rely on scientific and technological development, we continue to provide users high-tech products, which is our consistent pursuit. On the basis of absorbing the foreign advanced technology, we have already fetched in 10 lines advanced international machinery production. The main products manufactured by our company consist of more than 10 series, over 100 types, involving generators, diesel generating sets, gasoline generating sets and concrete cutter, of which all of our products have been passed the national attestation CCC, CE certificate, Nigeria Soncap and EPA certificate.

EMEAN is a young enterprise, but she owns the fresh and great-hearted blood, which make her more charmful. "Quality assurance, user first" is the agreement of EMEAN executives. Communicate with the domestic industry, scientific research institutions exchange and cooperation so as to improving the quality, such as: Design and production, commissioning and maintenance. Then occupy the market, and expand the scale of the company. We have been moving forward to a more prosperous achievement under the fierce competition.

Today, EMEAN staff pursue the guidelines--"aggressive, realistic, strict and unity" to blaze new trails. We make technology as the core, quality as life and users to God, dedicated to provide you with the highest & cost-effective products and meticulous after-sales service in order to shape a bright future.
