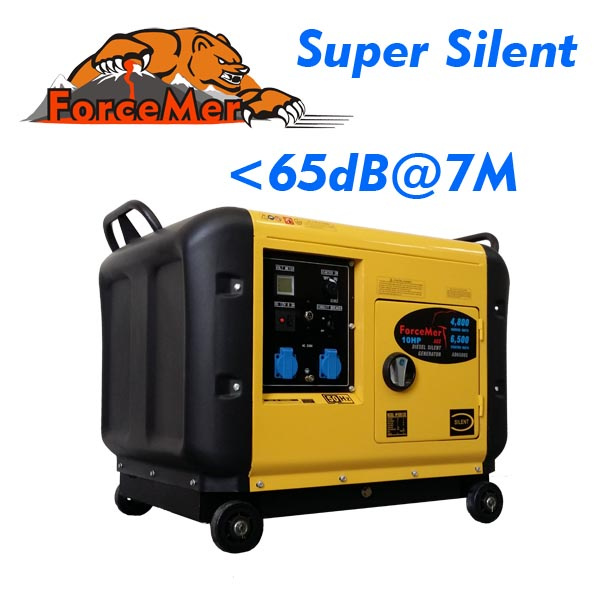

MODEL: Q5
Voltage: 110V, 120V, 230V, 240V, 110V/220V, 230V/400V, 240V/415V
Frequency: 50Hz; 60Hz
Rated power: 4500VA
Max power: 5500VA
DCoutput: 12V/8.3A
Engine type: 4-stroke, air-cooled, single cylider
Noise level. 65dB@7M
Displacement: 406CC
Start system: Recoil and hand-operated/Electric start
Fuel tank capacity: 15L
Continuous operating hours: 12hr.
Model
Q5
Q6
Q8
Q10
Rated Output
4.2kw
5.5kw
6kw
9kw
Max Output
5.0kw
6.0kw
6.5kw
10kw
Rated Volatge
110V, 230V, 380V
Rated Frequency
50Hz / 60Hz
Phase
Single phase / Three phase
DC Output
12V, 8.3A
Engine Type
Air-cooled, Single cylinder, Four-Stroke Diesel engine
Engine Model
D186FAS
D188F
D192F
D1110F
Engine Output
10hp
12hp
15hp
18hp
Displacement
418cc
456cc
498cc
712cc
Lube oil Capacity
1.65L
1.65L
1.65L
2.45L
Fuel Tank Capacity
15L
Starting System
Electric start (Option: remote start)
Gross Weight
185KG
188KG
195KG
218KG
Packing Diamension
970*755*830(mm)
970*755*830(mm)
970*755*830(mm)
Ningbo Spark Motor Ltd Was A Joint-venture Company Established By L&L International Limited (New Zeeland) And Chinese Party In 2005, And Changed Into Private Company In 2008. It Is An Export-oriented Manufacturing Company Specialized In Diesel/Gasoline Engine, Generator, Water Pump, High Pressure Washer, Light Construction Machinery And Garden Machinery. Our Products Enjoy A Good Market Share In Europe And Oceania Such As Germany, France, Italy, Spain, Netherland, Australia, New Zealand etc.
Ningbo Spark Motor Ltd Possess CE Certificate, GS Certificate, NRMM, 1 Patent For Invention, 1 Patent For Utility Model And 5 Patents For Appearance Design, Meanwhile The Production And Management Are Strictly Complied With ISO9001.
We Have One-year Warranty For All Products And Good After Sales Services. In The Aim Of Better Service And Support For Our Customers, We' Ve Opened 3 Sales Offices Separately In Budapest Hungary, Benin Africa, San Francisco USA.
