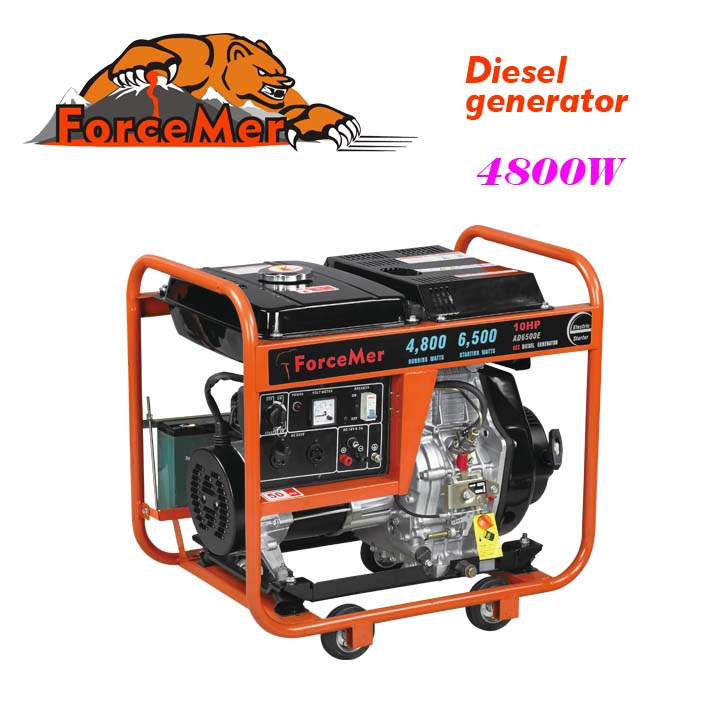

MODEL: AD6500E
Voltage: 110V, 120V, 230V, 240V, 110V/220V, 230V/400V, 240V/415V
Frequency: 50Hz; 60Hz
Rated power: 4800VA
Max power: 6500VA
DCoutput: 12V/8.3A
Engine type: 4-stroke, air-cooled, single cylider
Noise level. 75dB
Displacement: 406CC
Start system: Recoil and hand-operated/Electric start
Fuel tank capacity: 15L
Continuous operating hours: 12hr.
|
Diesel generator |
AD2500 |
AD3800 |
AD6500 |
AD7500 |
|
Engine Model |
D170F |
D178F |
D186F |
D186FA |
|
Type |
Air cooled, single cylinder, four stroke diesel engine |
|
Displacement |
211 cc |
296 cc |
406 cc |
418 cc |
|
Bore x Stroke |
70x55mm |
78x62mm |
86x70mm |
86x72mm |
|
Cooling system |
Air cooled |
|
Starting system |
Recoil Or Recoil+ Electric |
|
Lube Oil Capacity |
0.8L |
1.1L |
1.65L |
1.65L |
|
Fuel tank capacity |
15L |
|
Rated voltage |
110V, 120V, 220V, 230V, 240V |
|
Rated frequency |
50Hz / 60Hz |
|
Rated output |
1.8KVA |
2.8KVA |
4.2kVA |
4.6kVA |
|
Max. output |
2.5KVA |
3.5KVA |
5.5KVA |
6.5kVA |
|
DC output |
12V, 8.3A |
|
Rated power factor(COSΦ) |
0.8 |
|
Phase |
Three phase or Single phase |
|
Length x width x height(mm) |
650× 490× 550 |
700X500X575 |
740X500X660 |
740X500X660 |
|
Net weight(kg) |
55 |
68 |
97 |
108 |
