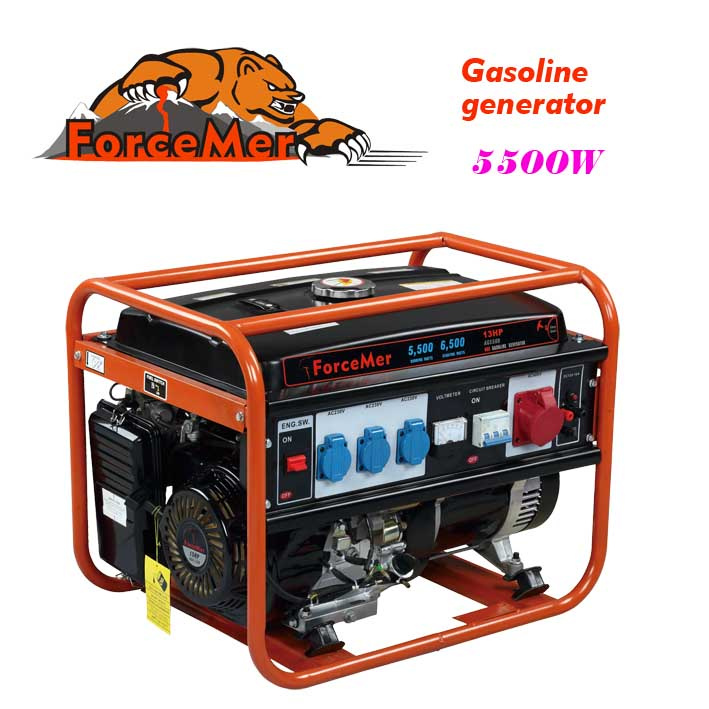

AG6500b ACE Series
AC Frequency: 50Hz/60Hz
AC Voltage: 110V, 120V, 220V, 230V, 240V, 110V/220V, 230V/400V, 240V/415V
Max Output: 5.5kw
Rated Output: 5.0kw
Output Type: three phase / single phase
DC Output: 12V - 8.3A
Alternator Type: Permanent Brushless Magnet
Engine Type: Single-Cylinder, 4-Stroke, Air-Cooled, OHV horizontal shaft
Engine Displacement: 389cc
Engine Max Output: 13HP / 3600rpm
Fuel: Regular automobile gasoline
Fuel Tank Capacity: 25L
Rated Continuous Operation: 18-20 hours (Load Dependent)
Oil Type: SAE 10W30
Oil Capacity: 0.7L
Noise level at 7m: 74dB
Dimensions: 69.5X52.5X54.5cm approx
Package Weight: 85kg
|
Gasoline generator |
AG950 |
AG1200 |
AG2500 |
AG2800 |
AG3200 |
AG6500 |
AG8500 |
|
Engine |
|
|
Model |
G1E45 |
G154F |
G168F |
G168F-1 |
G170F |
G188F |
G190F |
|
Type |
2-Stroke , 1 cylinder |
4-Stroke OHV 1 cylinder |
|
Displacement |
63 cm³ |
87 cm³ |
163 cm³ |
196 cm³ |
208 cm³ |
389 cm³ |
420 cm³ |
|
Bore x Stroke |
45x40mm |
54x38mm |
68x45mm |
68x54mm |
70x54mm |
88x64mm |
90x66mm |
|
Cooling system |
Air cooling |
|
|
|
|
|
|
Starting system |
Recoil |
Recoil Or Recoil+ Electric |
|
Fuel tank capacity |
4.0L |
6.0L |
15. L |
25L |
|
Generator |
|
|
|
|
|
|
|
|
Rated voltage |
110V, 120V, 220V, 230V, 240V |
110V, 120V, 220V, 230V, 240V, 110V/220V, 230V/400V, 240V/415V |
|
Rated frequency |
50Hz / 60Hz |
|
Rated output |
0.75kw |
0.8kw |
2.0kw |
2.5kw |
2.8kw |
5.0kw |
6.0kw |
|
Max. output |
0.95kw |
1.0kw |
2.2kw |
2.8kw |
3.2kw |
5.5kw |
6.5kw |
|
DC output |
12V, 8A |
|
Rated power factor |
|
|
|
|
|
|
|
|
Phase |
Single |
Single, Single+Three Phase |
|
Other |
|
|
|
|
|
|
|
|
Length x width x height(mm) |
380X330X330 |
460X370X390 |
600X450X470 |
600X450X470 |
690x510.520 |
700X525X580 |
700X525X580 |
|
Net weight(kg) |
19.5 |
21 |
41.5 |
42 |
43 |
85 |
89
|
Ningbo Spark Motor Ltd Was A Joint-venture Company Established By L&L International Limited (New Zeeland) And Chinese Party In 2005, And Changed Into Private Company In 2008. It Is An Export-oriented Manufacturing Company Specialized In Diesel/Gasoline Engine, Generator, Water Pump, High Pressure Washer, Light Construction Machinery And Garden Machinery. Our Products Enjoy A Good Market Share In Europe And Oceania Such As Germany, France, Italy, Spain, Netherland, Australia, New Zealand etc.
Ningbo Spark Motor Ltd Possess CE Certificate, GS Certificate, NRMM, 1 Patent For Invention, 1 Patent For Utility Model And 5 Patents For Appearance Design, Meanwhile The Production And Management Are Strictly Complied With ISO9001.
We Have One-year Warranty For All Products And Good After Sales Services. In The Aim Of Better Service And Support For Our Customers, We' Ve Opened 3 Sales Offices Separately In Budapest Hungary, Benin Africa, San Francisco USA.
