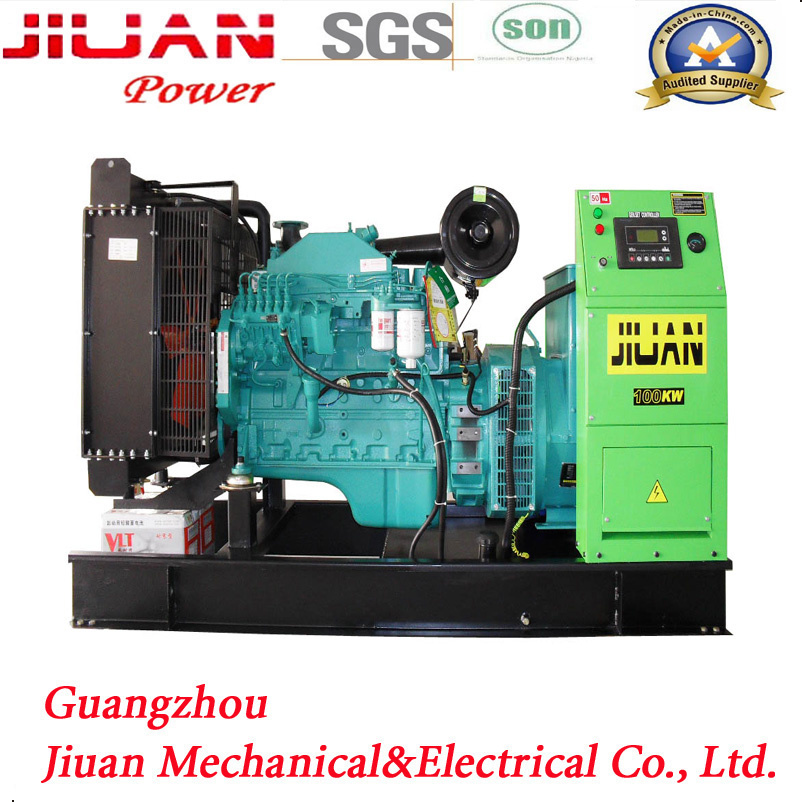

Silent Generator for Sale Price for Malaysia (CDC100kVA)

1.Factory Directly!Professional generator OEM factory Guangzhou
2.Super silent 60dB(A) at 7 meters
3.Certificate:SGS, Soncap approval
4.Super silent brand new Cummins engine/Stamford alternator/auto start

Generator stock 30KVA 15KVA 60KVA 100KVA 150KVA 200KVA Shipping at once.

Product Show
1.Description of Products

MODEL	CD-C80KW/100KVA
Powered by Cummins Engine
Prime Power (50HZ)	80KW/100KVA
Standby Power (50HZ)	85kw/106KVA
Power Factor	0.8 (Lagging)
Phase Wires	3-phases 4-Wires
Start Model	Electric
Protection	Low oil-pressure, High water temperature, Over-speed, Over-current
Engine Model	DCEC Cummins 6BT5.9-G1 4-Cycle
Cylinders	6
Cylinder Arrangement	L
Bore x Stroke(mm)	102X 120
Compression Ratio	17.5:1
Speed	1500rpm
Cooling Method	Water - cooled
Starting Method	24V DC electrical start
Full Load Diesel Consumption (L/H)	22
Engine Displacement (L)	5.9
Inspiration  (L)	Natural
Lube Volume  (L)	14.3
Coolant Volume  (L)	25
Noise (Db)	≤ 80
Alternator Model	Newage Stamford UCI274C or Leadtech LTG274C
Alternator Power	80KW/100KVA Brushles with AVR
Voltage	380/220V,400/230V,415/240V,220/127V
Protection	IP23
Voltage Regulation	±4%
Insulation Class	H
Voltage Control	AVR
Net Weigh (KGS)	1400
Dimensions (L x W x H) mm	2600*1100*1700 (S) 3300*1100*1800 (Super silent)
Controller	Smartgen 6110 or Deepsea 7320
Standard	Muffler * 2PCS
	Battery 80A * 2 PCS
Optional	ATS (auto transfer switch)
	AMF(auto mains failure)
	Trailer

Features of Gen.Set powered by Deutz Engine
1.12 months world-wide warranty service
2.Short delivery time,as we always have Deutz engine in stock
3.Spare parts are easy to get from worldwide market with much cheaper price
4.Perfect after-sales service network
5.Both 50HZ @1500rpm and 60HZ@1800rpm are available
6.Rigorous test including 50% load,100% load and 110% load
7.Stronger power with reasonable price
8.International brand feel free to use
9.Deutz Brand has air-cooled engine and water cooled engine for option
Standard configuration of generator with Deutz design:
1.Original engine - Germany brand
2.Alternator coupled with Stamford alternator,Leroy Somer alternator,Marathon alternator,copy Stamford alternator
3.Soundproof canopy, Super silent, open frame, Trailer mounted,Containerized
4.Controller Smartgen 6120 with AMF as standard or Deepsea 6020
5.Circuit breaker CHNT,ABB,Schneider,ASK
6.Base fuel tank 8 hours continuous running for soundproof type, 24 hours continuous running for super silent type.
7.Free-maintenance battery with Auto Battery Charger
8.Industrial silencer each 2 PCS per set with flexible exhaust hose.

Alternator Features:

1.World famous brand AC alternator:Stamford, Leroy somer, Marathon, Faraday, copy Stamford
2.Brush less with AVR
3.Brush less 4 poles, rotation magnet
4.AVR Voltage regulation less than ±1%, AVR self-regulated
5.Protection class IP23
6.Insulation system is class "H"

Control System Features:
Standard Smartgen 6120 or Deepsea DSE6020
Language Display:English;Spanish;Russian;Chinese
Data Display:Power, Voltage, Current, Frequecny, Speed, Oil pressure, Water Temperature, Fuel Level
Protection (auto alarm system):High voltage;Low voltage;High Speed;Low Speed;Over Current;Lose Phase;Low oil pressure;High water temperature
Functions:Auto start;Auto stop;ATS(auto transfer system);AMF(auto mains failure system)

JIUAN Genset testing items:
1.Loading testing:All qualified generator sets are subjected to a comprehensive performance test which includes 0% load, 25% load, 50% load, 100% load and 110% load to check verify that all control systems, alarm and shut-down protection.
2.Parts fault testing.
3.Fuel tank pressure testing.
4.Bolt tightening torque testing.
5.Voltage bearing and insulation testing
6.Noise level testing

2.After-sales Service
1 year or 1800 running hours subject to the earlier one.
24 hours after-sales contact number:0086 18520604611

3.Terms of Payment
1.T/T
2.Western Union
3.Cash

4.Packing & Shipping
standard export packing : inron frame

Company Show
1.Introduction of Company
Business Type:Manufacturer
Location:Guangzhou, China (Mainland)
Year Established:2008
Registration No.:440111000040106
Main Products:
Professional diesel generator OEM factory.

2.Production Line of Product
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1.Cummins (USA ) 20KVA - 2000KVA
2.Deutz (Germany) 20KVA - 150KVA
3.(UK) 8KVA - 2000KVA
4.ISUZU (Japanese) 20KVA - 40KVA
5.Lovol (China) 20KVA - 150KVA
6.Yangdong (China) 8KVA - 50KVA
7.Weichai (China) 8KVA - 150KVA
8.Shanghai Engine
9.Yuchai Engine
10.KUBOTA Engine 10KVA - 50KVA
* Canopy for Choice
1.Silent type (75- 80 dB(A) at 7 meters)
2.Super Silent type (65-70 dB(A) at 7 meters )
3.Open type
4.Trailer type (mobile)
5.Container Type
6.Parallel System
* Alternator for Choice (brushless with AVR)
1.Stamford Newage
2.Leroy Somer
3.Marathon
4.Leateck

4.Where Our Generator Used for?
Home, Factory, Hotel, Restaurant, Building site, Super market, Hospital etc

5.Why Choose Us?
Good Reasons Why You Choose JIUAN Generator:
1.Professional Generator OEM factory in Guangzhou.
2.14 years experience in generator and exporting.
3.High quality products at affordable prices.
4.Products lines verified by professional inspectors.
5.Place orders safety.
6.All engines and alternators are brand new and original - Credible.
7.Controller Deepsea or Smartgen -BIG Brand.
8.Air Breaker ABB CHNT Schneider ASK - Safety.
9.1% parts free are available for your order.

6.Welcome to contact us
Www.Jiuan-power.Com
