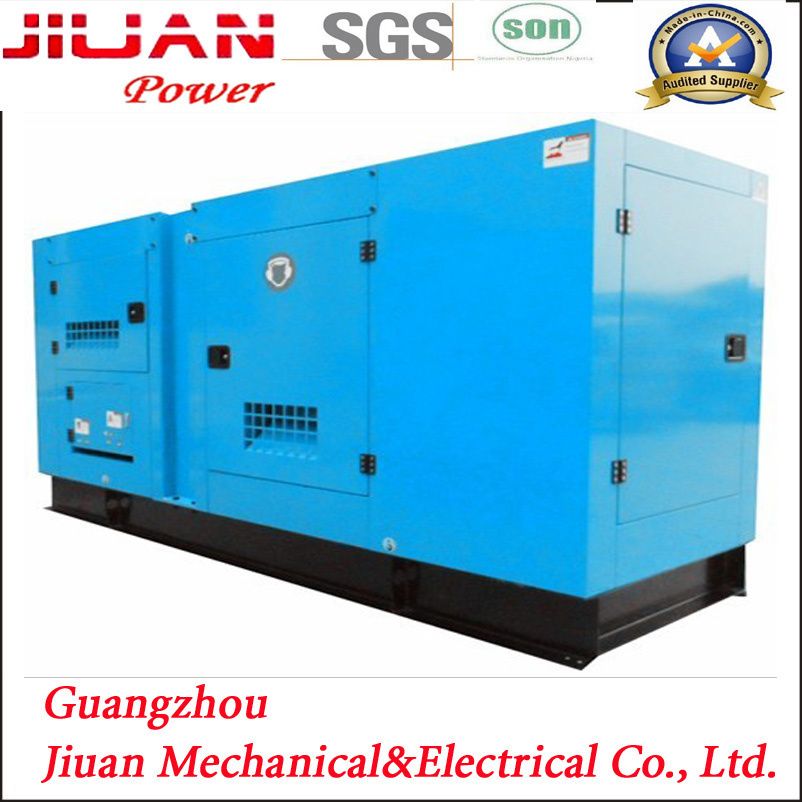

Cdc75kVA Cummins Engine Generator with Brushless AVR (Dynamo) Alternator
Price: |
US $ 500-50000/Piece |
Trade Terms: |
FOB,CFR,EXW |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal |
75KVA super silent generator with Cummins engine 60HZ 1800RPM
Generator low noise 65 dB(A) at 1 meters for super silent type
Professional Generator OEM Factory Guangzhou
Engine Perkins Cummins for option
Aternator Stamford brushless with AVR
Generator with Big fuel tank for 8 hours running
JIUAN Diesel Generator Set Advantage:- 50hz@1500rpm or 60HZ@1800rpm all are available
- AVR delivers non fluctuating power
- Panel type digital control panel
- 12 Volt / 24 Volt electric starter ensures easy starting
- Low oil pressure shut down system
- Low fuel cut out protection
- Low water cut out engine protection
- Enclosed structure ensures quieter operation
- Alternator (Dynamo) excitation mode brushless self excitation
- Three-phase output meets differing requirements
- Four Cylinder, four stroke, water cooled diesel engine
- 8 hours running @ full load on a single tank of fuel
- Dual access doors for easy maintenance
- Optional automatic or manual transfer switches available
- ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option
- Weatherproof and soundproof, enclosure high grade steel protected by powder coat painting and incorporate internally mounted exhaust silencers
- Noise Level (65-70dBA @ 7m)
- All ratings are at sea level
After-sales Service:
1 year or 1800 running hours subject to the earlier one.
24 hours after-sales contact number: 0086 18520604611
Contact Sales Manager
24 hours after-sales contact number: 0086 15817087202
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20KVA - 2000KVA
2. Deutz (Germany) 20KVA - 150KVA
3. Perkins (UK) 8KVA - 2000KVA
4. ISUZU (Japanese) 20KVA - 40KVA
5. Lovol (China) 20KVA - 150KVA
6. Yangdong (China) 8KVA - 40KVA
7. Weichai (China) 8KVA - 150KVA
8. Shanghai Engine
9. Yuchai Engine
10. KUBOTA Engine 10KVA - 50KVA
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type

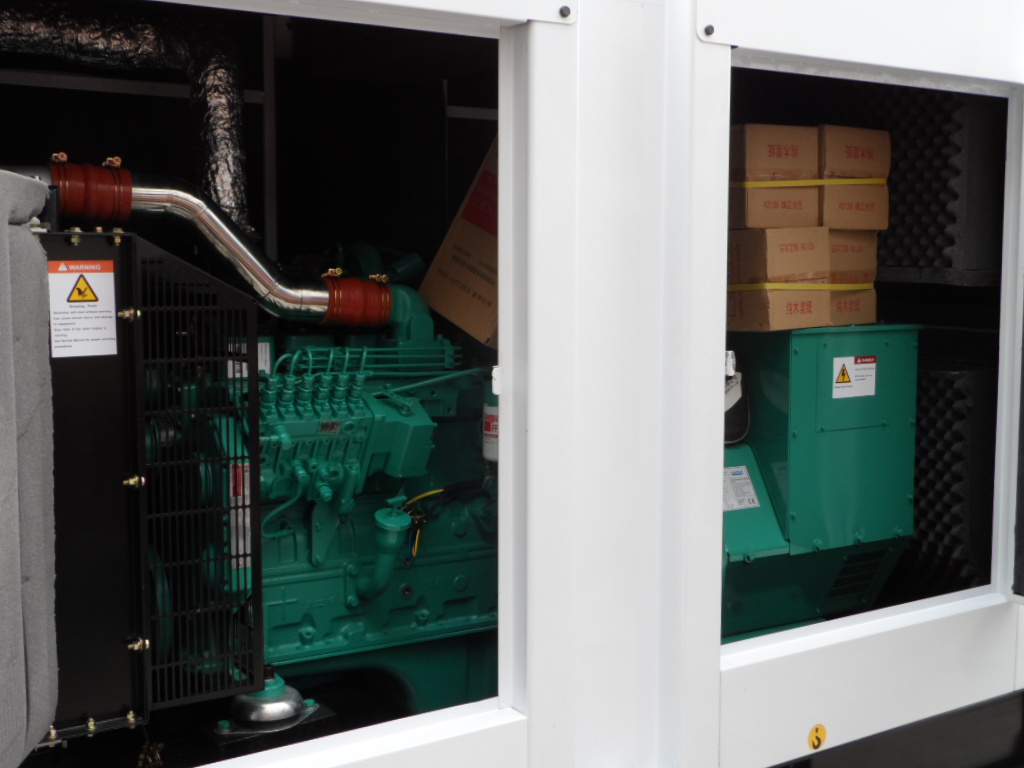

6. Parallel System Diesel Generator Set Photos Details:
Diesel Generator
MODEL |
CD-C75KVA |
Powered by Cummins Engine |
Prime Power (60HZ) |
58KW/72.5KVA |
Standby Power (60HZ) |
60kw/75KVA |
Power Factor |
0.8 (Lagging) |
Phase Wires |
3-phases 4-Wires |
Start Model |
Electric |
Protection |
Low oil-pressure, High water temperature,
Over-speed, Over-current |
Engine Model |
4BTA3.9-G2 |
Cylinders |
4 |
Cylinder Arrangement |
L |
Bore x Stroke(mm) |
102X 120 |
Compression Ratio |
16.5:1 |
Speed |
1800rpm |
Cooling Method |
Water – cooled |
Starting Method |
24V DC electrical start |
Full Load Diesel Consumption (L/H) |
22 |
Engine Displacement (L) |
5.9 |
Inspiration (L) |
Natural |
Lube Volume (L) |
14.3 |
Coolant Volume (L) |
25 |
Noise (Db) |
≤ 80 |
Alternator Model |
LEADTECH 224E |
Voltage |
220v/110v |
Protection |
IP23 |
Voltage Regulation |
±4% |
Insulation Class |
H |
Voltage Control |
AVR |
Net Weigh (KGS) |
950 |
Dimensions (L x W x H) mm |
2250*950*1350 silent type
2600*1100*1650mm super silent type |
Optional |
ATS (auto transfer switch) |
|
Auto Battery Charger |
|
|
Prod Model: |
CDC75KVA |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Generator Silent Noise: |
80db(a) at 1 Meters |
Generator Super Silent: |
65 Db(a) at 1 Meters |
Generator Controller: |
Deepsea 6020 or Smartgen |
Generator Engine: |
Cummins Perkins Isuzu Kubota Deutz |
Cooling Method: |
Water Cooling |
Stroke: |
Four Stroke |
Installation Method: |
Fixed |
Type: |
Basic Diesel Generator |
Output Type: |
AC Three Phase |
Guangzhou Jiuan Mechanical & Electrical Co., Ltd. is a professional generator manufacturer and exporter with generator capacity from 2kVA to 2000kVA. Generator can be powered by Cummins, Perkins, ISUZU, KUBOTA and Chinese engine. Welcome to chose our products and don' T hesitate to contact us.
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 1500kVA
2. Perkins (UK) 8kVA-1000kVA
3. Deutz (Germany) 20kVA - 150kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Kubota (Japanese) 7kVA-50kVA
6. Lovol (China) 20kVA - 150kVA
7. Yangdong (China) 8kVA - 40kVA
8. Weichai (China) 8kVA - 150kVA
9. Shanghai Engine
10. Yuchai Engine
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice
1. Stamford
2. Leroy Somer
3. Marathon
* Controller
1. Smartgen
2. Deepsea (UK Brand and imported)
