| Price: | US $ 500-50000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,EXW |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
1.World famous brand AC alternator:Stamford, Leroy somer, Marathon, Faraday, copy Stamford
2.Brush less with AVR
3.Brush less 4 poles, rotation magnet
4.AVR Voltage regulation less than ±1%, AVR self-regulated
5.Protection class IP23
6.Insulation system is class "H"
Control System Features:
Standard Smartgen 6120 or Deepsea DSE6020
Language Display:English;Spanish;Russian;Chinese
Data Display:Power, Voltage, Current, Frequecny, Speed, Oil pressure, Water Temperature, Fuel Level
Protection (auto alarm system):High voltage;Low voltage;High Speed;Low Speed;Over Current;Lose Phase;Low oil pressure;High water temperature
Functions:Auto start;Auto stop;ATS(auto transfer system);AMF(auto mains failure system)
JIUAN Genset testing items:
1.Loading testing:All qualified generator sets are subjected to a comprehensive performance test which includes 0% load, 25% load, 50% load, 100% load and 110% load to check verify that all control systems, alarm and shut-down protection.
2.Parts fault testing.
3.Fuel tank pressure testing.
4.Bolt tightening torque testing.
5.Voltage bearing and insulation testing
6.Noise level testing
Location:Guangzhou, China (Mainland)
Year Established:2008
Registration No.:440111000040106
Main Products:
Professional diesel generator OEM factory.
2.Our Company View

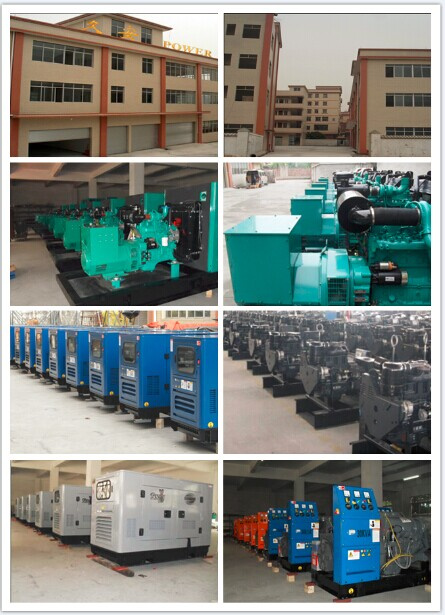

3.Production Line of Product
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1.Cummins (USA ) 20KVA - 2000KVA
2.Deutz (Germany) 20KVA - 150KVA
3.(UK) 8KVA - 2000KVA
4.ISUZU (Japanese) 20KVA - 40KVA
5.Lovol (China) 20KVA - 150KVA
6.Yangdong (China) 8KVA - 50KVA
7.Weichai (China) 8KVA - 150KVA
8.Shanghai Engine
9.Yuchai Engine
10.KUBOTA Engine 10KVA - 50KVA
* Canopy for Choice
1.Silent type (75- 80 dB(A) at 7 meters)
2.Super Silent type (65-70 dB(A) at 7 meters )
3.Open type
4.Trailer type (mobile)
5.Container Type
6.Parallel System
* Alternator for Choice (brushless with AVR)
1.Stamford Newage
2.Leroy Somer
3.Marathon
4.Leateck
4.Where Our Generator Used for?
Home, Factory, Hotel, Restaurant, Building site, Super market, Hospital etc
5.Why Choose Us?
Good Reasons Why You Choose JIUAN Generator:
1.Professional Generator OEM factory in Guangzhou.
2.14 years experience in generator and exporting.
3.High quality products at affordable prices.
4.Products lines verified by professional inspectors.
5.Place orders safety.
6.All engines and alternators are brand new and original - Credible.
7.Controller Deepsea or Smartgen -BIG Brand.
8.Air Breaker ABB CHNT Schneider ASK - Safety.
9.1% parts free are available for your order.
6.Welcome to contact us

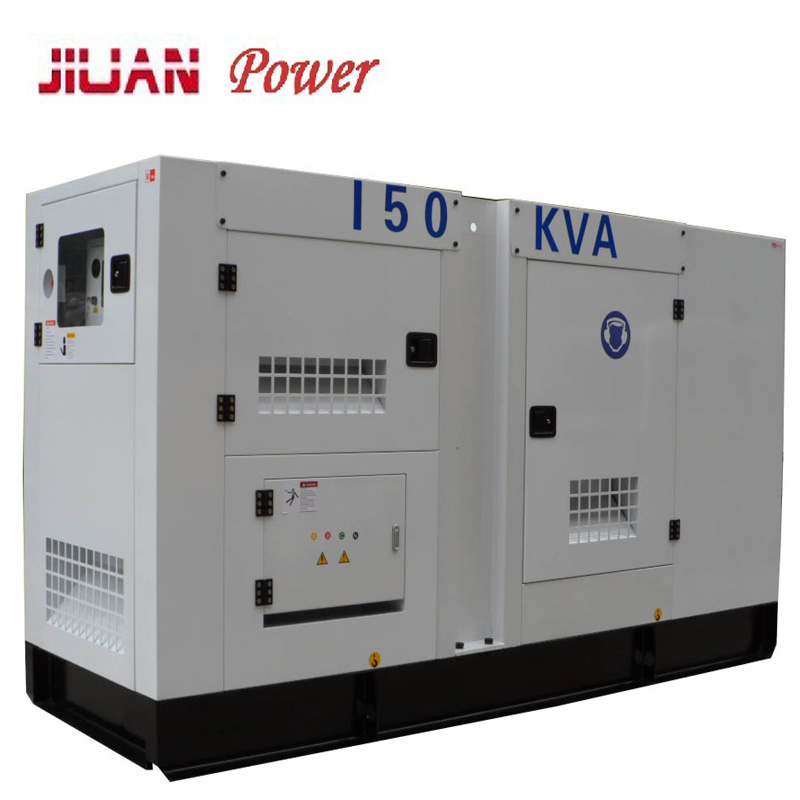

Www.Jiuan-power.Com| Cummins 150KVA Generator MODEL | CD-C120KW/150KVA |
| Powered by Cummins Engine | |
| Prime Power (50HZ) | 120KW/150KVA |
| Standby Power (50HZ) | 128kw/160KVA |
| Power Factor | 0.8 (Lagging) |
| Phase Wires | 3-phases 4-Wires |
| Start Model | Electric |
| Protection | Low oil-pressure, High water temperature, Over-speed, Over-current |
| Engine Model | DCEC Cummins 6CTA8.3-G2 4 Cycle |
| Cylinders | 6 |
| Cylinder Arrangement | L |
| Bore x Stroke(mm) | 114X 135 |
| Compression Ratio | 16.5:1 |
| Speed | 1500rpm |
| Cooling Method | Water – cooled |
| Starting Method | 24V DC electrical start |
| Full Load Diesel Consumption (L/H) | 38 |
| Engine Displacement (L) | 8.3 |
| Inspiration (L) | Turbocharged Intercooler |
| Lube Volume (L) | 24.3 |
| Coolant Volume (L) | 28 |
| Noise (Db) | ≤ 95 |
| Alternator Model | Newage Stamford UCI274F or Leadtech LTG274FA |
| Alternator Power | 128KW/160KVA Brushles with AVR |
| Voltage | 380/220V,400/230V,415/240V,220/127V |
| Protection | IP23 |
| Voltage Regulation | ±4% |
| Insulation Class | H |
| Voltage Control | AVR |
| Net Weigh (KGS) | 2150 |
| Dimensions (L x W x H) mm | 2800*1200*1800 (S) 3500*1300*2000(Super Silent) |
| 40FT Container | 4 units (S) |
| Controller | Smartgen 6110 or Deepsea 7320 |
| Standard | Muffler * 2PCS |
| Battery 80A * 2 PCS | |
| Optional | ATS (auto transfer switch) |
| AMF(auto mains failure) | |
| Trailer | |
| Prod Model: | CDC150KVA |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Generator Engine Brand: | Dcec Cummins Engine Generator |
| Generator Alternator Brand: | Stamford, Marathon, Leroy Somer, Stamford Copy |
| Generator Alternator: | Brushless with AVR |
| Generator Controller: | Deepsea or Smartgen |
| Generator Canopy: | Super Silent, Silent, Open, Trailer, Containerize |
| Generator Noise Level: | 68db(a) at 3meters |
| Generator Speed Governor: | Electric |
| Generator Power: | Prime Power 150kVA |
| Type: | Basic Diesel Generator |
| Installation Method: | Fixed |
| Stroke: | Four Stroke |
| Cooling Method: | Water Cooling |
| Output Type: | AC Three Phase |
