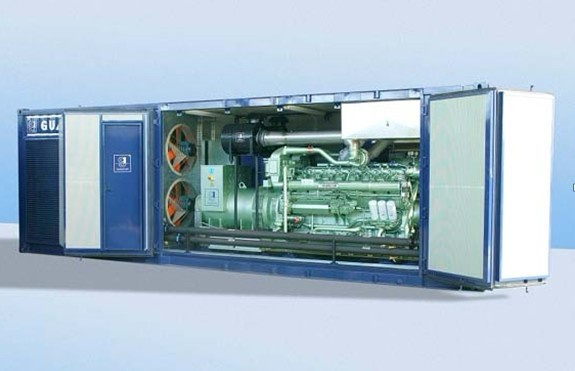

Silent Gas Generator Set (30kVA-4000kVA)
GENSET MODEL: BCX1200
1. Adopting up-to-date highly capable ignition system, so the engine ignition will be more reliable, punctual, and easier to start. And the ignition plug has longer life.
2. Main control parts are from American Cummins or MTU., the advanced and famous international brand ones, and they will offer the redesigner engine which is more suitable for the gas generating set. To make the gensets more stable and reliable running.
Binshi gas generator has a life of over 30 years which is widely used both at home and abroad.
We also agent the worldwide brands gas gensets: They are the Spain Guascor, American GE Jenbacher, Germany MAN, MWM
3. The range of power: 20-1200KW, Many Chinese factory can not reach this peak at present. Due to Binshi owns several professional, skill and rich innovative R&D engineers. We will continue to develop more practical and economical alternative energy generators.
4. Our machines are Economical and low-cost running:
A>low oil onsumption: 0.3-1.45g/kw. H, (according the power)
B>electrical efficency: 39%
C>longer maintenance time: More than 35000h for the 1500rpm engine.
5. Several gensets can be parallel connection or parallel net, which can increase or adjust the total power range. In addition, the gensets can take maintenance in different times, which will make little influence to the normal performance of gensets.
Our company is a professional manufacture of gas generator set, all our products are of good quality. Binshi power can produce various gas generator sets, such as natural gas gensets, biogas gensets, coal-gas gensets and LPG gensets. It blongs to new green environmental protection power to substitute those gensets powered by gasoline or diesel in the near future. Natural gas or other flammable gas can be esed well as fuel, which may be turned waste to treasure. Due to the advantage of convenient and safe operation, cost-effectiveness, low-emission pollution, and suitable for CHP, It will have a great prospect and application.
| Parameter of 1200kw/1500kva gas genset |
| Model Number | BCX1200 |
| Brand Name | BS |
| Prime power/Standby power | 1200kw(1500kva)/1360KW(1600kva) |
| Electrical efficency | 39% |
| Oil consumption | < 1.35g/kw. h |
| Rated Speed | 1000RPM |
| Engine Number | BS16V190T |
| Rated Frequency | 50/60HZ |
| Rated Voltage | 400V/230V |
| Phase | AC 3-Phase, 4 wire |
| Total output volume | 97.5L |
| Alternator | Engga/Marathon/Leroysomer |
| Cylinder | 16v(190*215mm) |
| Starting System | DC 24V electric motor |
| Cooling method | water cooler+fan |
| Size | 5920*2180*2200mm |
| Weight | 17200kg |
Guangdong Binshi Power Technology Co., Ltd is one of the leading manufacturers of diesel and gas generator sets (generator, genset, diesel generator, power generator, silent generator, generating set, power generation). With years' professional experience in generator set design, manufacturing, sale and service, BS Power has won good reputation both at home and abroad.
BS Power has built a number of production bases and service centers across the country. Among them, the South China production base and after-sales service center which is located in Dongguan-the famous manufacturing city in the world, covering an area of 8, 000 square meters, owns more than 100 employees, in which 58 percent is engineering technicians, and has numbers of senior engineers. BS Power is people-oriented, creating the best technical management, marketing and planning talents. With abundant resources and innovative research capabilities, BS Power has established a research and development center with famous domestic universities.
In order to improve BS Power's production and technology capability. The second production base, which is located in Hubei Province with the total investment of 7, 000 million yuan, covering an area of 35, 000 square meters, has been put into production.
BS Power has established long-term close partnership with the world famous generator manufactures, such as Cummins in USA, Perkins in UK, MTU and Deutz in Germany, Doosan in Korea, and the genset is equipped with the famous alternator manufactures, like Marathon (USA), Leroy-somer(France) and Engga(UK). Meanwhile, BS Power has achieved ISO9001: 2008 Quality Certification System and ISO14001: 2004 Environmental Management System.
BS Power sincerely wishes to cooperate with distributors of gensets worldwide to expand its high-quality products in your market to reach the win-win goal in the future. Information about BS Power(manufacturer), products will be offered on your request.
