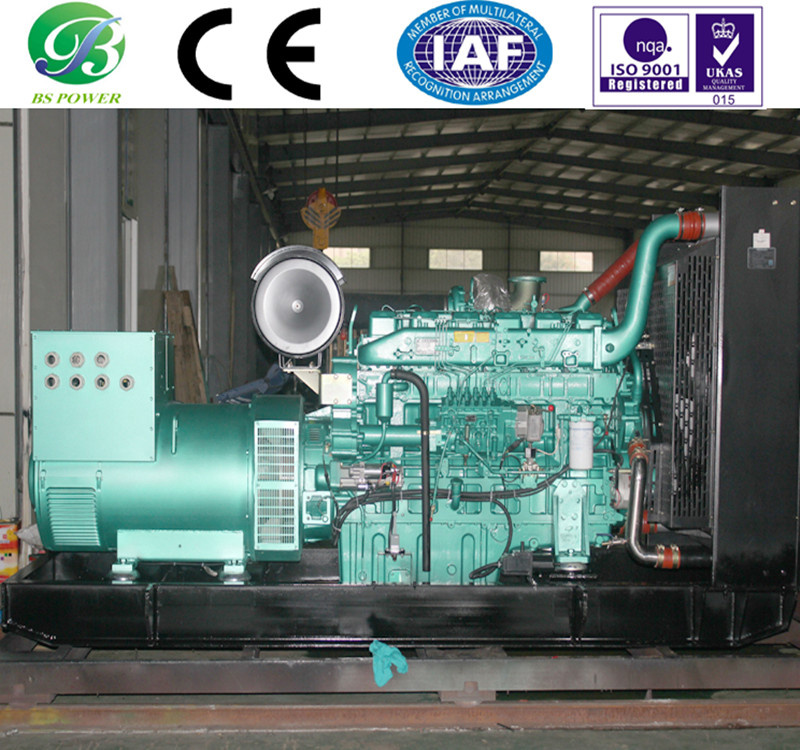

270kw Electric Diesel Power Generator Set with Yuchai Engine
Price: |
US $ 18364/Set |
Trade Terms: |
FOB,CFR,EXW |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T |
30KW-2200KW Electric Diesel Power Generator Set with Yuchai Engine

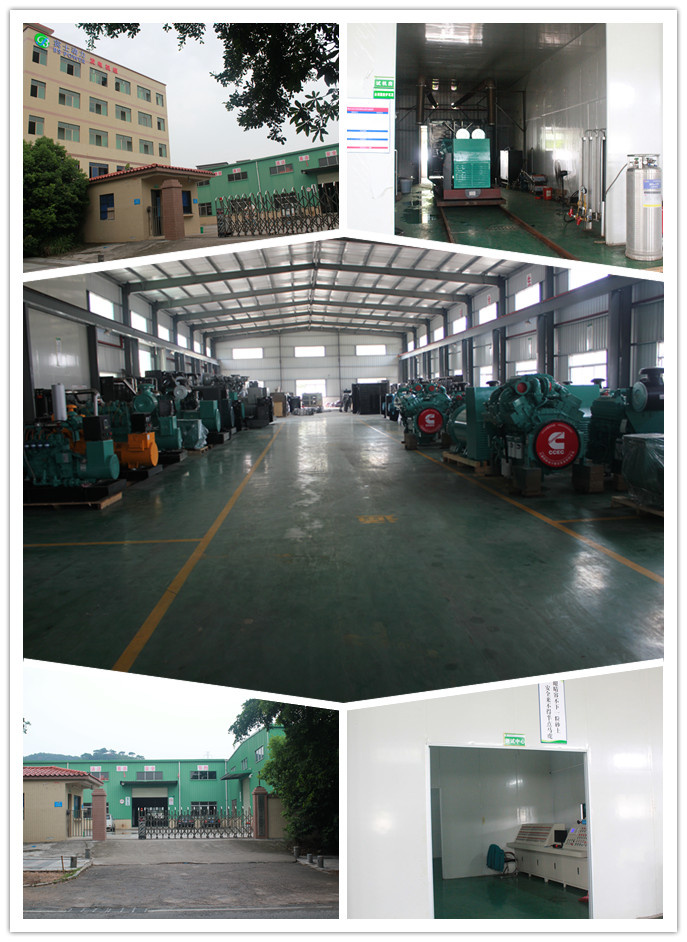

We are the professional Gas Generator, Diesel Generator, Power Generator , Biogas Generator, LNG/LPG/CNG Generator set Manufacturer .GUANGDONG BINSHI POWER TECHNOLOGY CO.,LTD which was established in 2002, we are a leading and professionalDiesel, Natural gas,Methane,Biogas,Biomass gas,Gasification gas, Landfill gas, LPG,LNG,CNG,duel-fuel and High voltage generator set factory in China. Our enterprise has built two production bases and service centers across the country, one is the South China production base and after-sales service center which is located in Dongguan city, Guangdong Province which is the famous manufacturing city in the world, another is located in Middle China, Wuhan city, Hubei Province, our total registered capital is USD20 million. The two production bases cover an area of 20, 000 square meters, owns more than 200 employees, in which 60 percent is engineering technicians,and has numbers of senior engineers. Yuchai Diesel Generator Parameter:Output: 400V/230VFrequency: 50Hz/60HzPower Factor: 0.8(lagging)
Protection Standard: IP21-IP23
Model of Connection: 3 phase 4 lines
Insulation Grade: H
Frequency Drop(%): ≤ 0.5
Transient state frequency deviation(%): (advertised power) +10~-7
Frequency Recovery Time(S): ≤ 3
Voltage Recovery Time(S): ≤ 4Yuchai diesel generator set Features:- Compact structure,reliability,good performance,a world famous brand
- Features: BS-Yuchai diesel generator set
- Frequency: 50Hz/60Hz
- Engine: Yuchai (We also have Perkins,MTU,Doosan and any other)
- Alternator: Engga, Marathon, Leroy-somer,Faraday ect.
- Controller System: Deepsea 7610, Deepsea 5220/GBS-820.
Warranty:
Guarantee for one year or 1000 hours (according to whichever reach first)
from ex-factory date. During the guarantee period, we will provide the free
easy-damaged spare parts for problems caused by our quality of production or raw materials,
except the damage caused by customer's incorrect manmade operation.
After expiration, our company will provides cost spare parts maintenance for gen-set.Our Service: 1. Pre-sales promise
We will dispatch senior engineer to our guests' locate to investigate in time.Give our guest clear suggestion and guidance and propose feasible solutions,the details list of expense.
2. Selling promise
Our company is based on "Integrity,Professional,Quality,Service" to our guest excellent and efficient serve throught our rapid service system. 3. After-sales promise
Our company have more than hundreds of excellent gas,diesel generator set technic and maintain service staff.They will provide you with comprehensive and satisfied service to make your generator set more stable,reliable,saving-energy and efficient to operate.
Welcome clients from all the world come to visit and give us guidance in our factory
50HZ
Generator set Model | Power(KW/KVA) | Engine | Alternator | Net Weight (kg) | Dimensions(L×W×H) |
Prime | Standby | Perkins | Marathon | Faraday | Open Type | Sllent Type |
BPX26 | 24/30 | 26/32.5 | 1103A-33G | GM-24-4 | FD1G-4 | 870 | 1700×650×1200 | 2700×1000×1600 |
BPX40 | 36/45 | 40/50 | 1103A-33TG1 | MP-40-4 | FD2B-4 | 1000 | 1750×650×1200 | 2700×1000×1600 |
BPX53 | 48/60 | 53/66.5 | 1103A-33TG2 | MP-48-4 | FD2C-4 | 1050 | 1750×650×1200 | 2700×1100×1600 |
BPX58 | 52/65 | 58/72.5 | 1104A-44TG1 | MP-50-4 | FD2CL-4 | 1100 | 1900×650×1200 | 3000×1100×1600 |
BPX70 | 64/80 | 70/87.5 | 1104A-44TG2 | MP-64-4 | FD2DS-4 | 1300 | 1900×650×1200 | 3000×1100×1600 |
BPX90 | 80/100 | 90/112.5 | 1104C-44TAG2 | MP-80-4 | FD3A-4 | 1300 | 2050×720×1200 | 3000×1100×1750 |
BPX120 | 110/1137.5 | 120/150 | 1106A-70TAG1 | MP-120-4 | FD3DS-4 | 1600 | 2250×770×1350 | 3300×1100×1900 |
BPX132 | 120/150 | 132/165 | 1106A-70TAG2 | MP-120-4 | FD3D-4 | 1850 | 2300×770×1350 | 3300×1100×1900 |
BPX180 | 160/200 | 180/225 | 1106A-70TAG4 | MP-160-4 | FD3EM-4 | 2050 | 2400×880×1600 | 3700×1500×2100 |
BPX200 | 180/225 | 200/250 | 1306C-E87TAG4 | MP-180-4 | FD3F-4 | 2200 | 2550×880×1600 | 3700×1500×2100 |
BPX220 | 200/250 | 220/275 | 1306C-E87TAG6 | MP-200-4 | FD3G-4 | 2200 | 2500×880×1600 | 3700×1500×2100 |
BPX310 | 280/350 | 310/388 | 2206A-E13TAG2 | MP-280-4 | FD4LS-4 | 2500 | 3200×1150×1850 | 4500×1500×2200 |
BPX350 | 320/400 | 350/438 | 2206A-E13TAG3 | MP-320-4 | FD4LP-4 | 2600 | 3250×1150×1850 | 4700×1500×2200 |
BPX400 | 360/450 | 400/500 | 2506A-E15TAG1 | MP-350-4 | FD5S-4 | 3000 | 3800×1150×1950 | 5800×1500×2200 |
BPX440 | 400/500 | 440/550 | 2506A-E15TAG2 | MP-400-4 | FD5M-4 | 3000 | 3800×1150×1950 | 5800×1500×2500 |
BPX528 | 480/600 | 528/660 | 2806A-E18TAG1A | MP-480-4 | FD5LS-4 | 3900 | 3600×1550×2050 | 6000×2000×2500 |
BPX580 | 520/650 | 580/725 | 2806A-E18TAG2 | MP-500-4 | FD5LP-4 | 3800 | 3700×1550×2050 | 6000×2000×2500 |
BPX660 | 600/750 | 660/825 | 4006-23TAG2A | MX-600-4 | FD6AS-4 | 4300 | 4000×1700×2200 | 6000×2300×2800 |
BPX704 | 640/800 | 704/880 | 4006-23TAG3A | MX-630-4 | FD6A-4 | 4000 | 4000×1700×2200 | 6000×2360×2800 |
BPXX50 | 680/850 | 750/938 | 4008TAG | MX-750-4 | FD6B-4 | 6200 | 5050×1650×2400 | 6700×2360×2900 |
BPX880 | 800/1000 | 880/1100 | 4008TAG2A | MX-850-4 | FD6C-4 | 6200 | 5150×2050×2400 | 7500×2500×3000 |
BPX1100 | 1000/1250 | 1100/1375 | 4012-46TWG2A | MX-1030-4 | FD6E-4 | 12200 | 5400×2200×2500 | 8000×2600×3100 |
BPX1200 | 1100/1375 | 1200/1500 | 4012-46TWG3A | MX-1240-4 | FD7A-4 | 12500 | 5300×2200×2500 | 8000×2600×3100 |
BPX1320 | 1200/1500 | 1320/1650 | 4012-46TAG2A | MX-1240-4 | FD7B-4 | 12500 | 5350×2200×2500 | 8000×2600×3100 |
BPX1500 | 1350/1687.5 | 1500/1875 | 4012-46TAG3A | MX-1350-4 | FD7C-4 | 12250 | 5350×2200×2600 | 9000×2800×3300 |
BPX1650 | 1500/1875 | 1650/2062 | 4016TAG1A | MX-1540-4 | FD7D-4 | 14450 | 5600×2500×3000 | 9000×2800×3500 |
BPX1800 | 1600/2000 | 1800/2250 | 4016TAG2A | MX-1800-4 | FD7E-4 | 14500 | 5650×2500×3000 | 9000×2880×3500 |
BPX2000 | 1800/2250 | 2000/2500 | 4016-61TRG3 | MX-1800-4 | FD7F-4 | 13500 | 5700×2500×3000 | 10000×2900×3500 |
BS POWER DIESEL GENERATOR SET |
50HZ 1500rpm 400/230V |
MTU LEROY SOMER |
Genset Model | KW/KVA | KW/KVA | ENGINE MODEL | Cyl.(L) | Displacement (L) | Alternator Model (Leroy somer) | Rated power(KW) | Fuel cons.100% (g/kw.h) | Net weight (kg) | Dimensions (L x W x H) MM |
Prime power | standby power | Open Type |
BMX270 | 240/300 | 270/338 | 6R1600G70F | 6R | 10.5 | LSA46.2 VL12 | 252 | 201 | 2500 | 2800×1150×1650 |
BMX350 | 320/400 | 350/438 | 8V1600G70F | 8V | 14 | LSA47.2 S4 | 328 | 191 | 3450 | 2980×1350×1760 |
BMX400 | 360/450 | 400/500 | 10V1600G40F | 10V | 17.5 | LSA47.2 S5 | 364 | 191 | 3880 | 3220×1350×1850 |
BMX440 | 400/500 | 440/550 | 10V1600G50F | 10V | 17.5 | LSA47.2 M7 | 400 | 190 | 4000 | 3320×1350×1850 |
BMX520 | 480/600 | 520/650 | 12V1600G40F | 12V | 21 | LSA47.2 L9 | 480 | 195 | 4350 | 3500×1350×1850 |
BMX570 | 520/650 | 570/713 | 12V2000G25 | 12V | 23.88 | LSA49.1 S4 | 528 | 203 | 6800 | 4200×1650×2280 |
BMX704 | 640/800 | 704/880 | 12V2000G65 | 12V | 23.88 | LSA49.1 M75 | 640 | 202 | 6800 | 4200×1650×2280 |
BMX800 | 720/900 | 800/1000 | 16V2000G25 | 16V | 31.84 | LSA49.1 L10 | 728 | 198 | 7700 | 4500×2000×2300 |
BMX880 | 800/1000 | 880/1100 | 16V2000G65 | 16V | 31.84 | LSA49.1 L11 | 800 | 198 | 7800 | 4500×2000×2300 |
BMX1000 | 900/1125 | 1000/1250 | 18V2000G65 | 18V | 35.82 | LSA50.2 M6 | 1000 | 202 | 8800 | 4750×2000×2380 |
BMX1100 | 1000/1250 | 1100/1375 | 12V4000G21R | 12V | 48.7 | LSA 50.2 M6 | 1000 | 198 | 11000 | 6150×2150×2400 |
BMX1250 | 1120/1400 | 1250/1563 | 12V4000G23R | 12V | 48.7 | LSA 50.2 L7 | 1080 | 198 | 12000 | 6150×2150×2400 |
BMX1450 | 1300/1625 | 1450/1813 | 12V4000G23 | 12V | 57.24 | LSA50.2 VL10 | 1312 | 189 | 13500 | 6150×2150×2400 |
BMX1600 | 1450/1812 | 1600/2000 | 12V4000G63 | 12V | 57.24 | LSA51.2 S55 | 1440 | 193 | 14000 | 6150×2150×2400 |
BMX1760 | 1600/2000 | 1760/2200 | 16V4000G23 | 16V | 76.32 | LSA51.2 M60 | 1600 | 193 | 17000 | 6500×2600×2500 |
BMX2000 | 1800/2250 | 2000/2500 | 16V4000G63 | 16V | 76.32 | LSA51.2 VL85 | 1800 | 191 | 17000 | 6550×2600×2500 |
BMX2200 | 2000/2500 | 2200/2750 | 20V4000G23 | 20V | 95.4 | LSA51.2 VL90 | 2000 | 205 | 17600 | 7600×2600×3000 |
Prod Model: |
BYX270 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Warranty: |
1 Year or 1000 Hours |
Alternator: |
Faraday, Leroy Somer, Stamford, Engga Ect. |
Controller: |
Deepsea, Harsen |
Protection Class: |
IP23 |
Regulator: |
AVR |
Power Factor: |
0.8 (Lag) |
Type: |
Self-Starting Diesel Generator |
Installation Method: |
Fixed |
Stroke: |
Four Stroke |
Cooling Method: |
Water Cooling |
Output Type: |
AC Three Phase |
Conditions Of Use: |
Power Plant |
Guangdong Binshi Power Technology Co., Ltd is one of the leading manufacturers of diesel and gas generator sets (generator, genset, diesel generator, power generator, silent generator, generating set, power generation). With years' professional experience in generator set design, manufacturing, sale and service, BS Power has won good reputation both at home and abroad.
BS Power has built a number of production bases and service centers across the country. Among them, the South China production base and after-sales service center which is located in Dongguan-the famous manufacturing city in the world, covering an area of 8, 000 square meters, owns more than 100 employees, in which 58 percent is engineering technicians, and has numbers of senior engineers. BS Power is people-oriented, creating the best technical management, marketing and planning talents. With abundant resources and innovative research capabilities, BS Power has established a research and development center with famous domestic universities.
In order to improve BS Power's production and technology capability. The second production base, which is located in Hubei Province with the total investment of 7, 000 million yuan, covering an area of 35, 000 square meters, has been put into production.
BS Power has established long-term close partnership with the world famous generator manufactures, such as Cummins in USA, Perkins in UK, MTU and Deutz in Germany, Doosan in Korea, and the genset is equipped with the famous alternator manufactures, like Marathon (USA), Leroy-somer(France) and Engga(UK). Meanwhile, BS Power has achieved ISO9001: 2008 Quality Certification System and ISO14001: 2004 Environmental Management System.
BS Power sincerely wishes to cooperate with distributors of gensets worldwide to expand its high-quality products in your market to reach the win-win goal in the future. Information about BS Power(manufacturer), products will be offered on your request.
