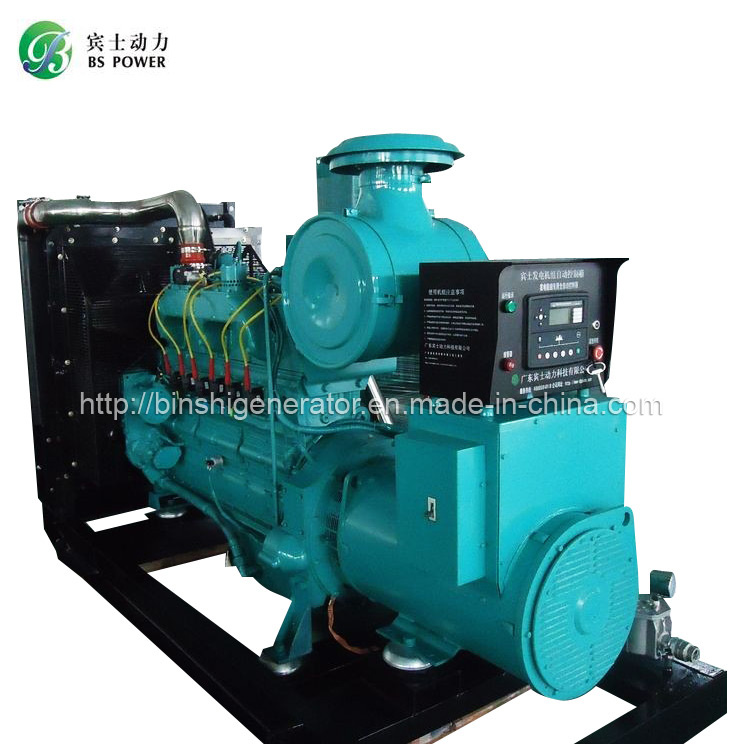

250KW LPG Generator Sets
Binshi Gas Generator Sets Description:Genset Information:Model: BCF250-B. Cummins Power KTAA19
Prime Power: 250KW
Voltage Class: 400V
Electrical Efficiency: 36.7%
Heat Efficiency: 52.4%
Overall Efficiency: 89.1%
Frequency/Speed: 1500rmp
Storage Battery Quantity Specifications: 2x180Ah
Gen-set Dimention: 3400x1700x1800(mm)
Weight: 4200KG
Engine:Bore & Stroke: 159× 159(mm)
Displacement: 18.9L
Compression Ratio: 9
Fuel type: LPG
Gas Consumption Rate: 9.8mj/kwh
Oil Consumption Rate: 1.0g/kwh
Oil Capacity: 50 L. (High and low oil level)
Oil Temperatuer: ≤ 120 degree centigrade
Cooling Water Capacity: 132L (Just Engine)
Flue gas flow: 8.3kg/s
Maximum Water Temperature: 96 degree centigrade
The highest temperature of flue gas: 560 degree centigrade
Dry Weight: 1880KG
Faraday Alternator:Prime Power: 250kw
1 Hour Overload Capacity: 110%
Power factors: 0.8
Frequency: 50Hz@1500rpm/60Hz@1800rpm
Voltage: 400V
Voltage Regulation Rate: ± 1%
Allowed Over Speed: 2160
Efficiency@100%: 93.5%
Weight: 1010KG
Resist Radio interference level: <50
Insulation class: H
Protection class: IP23
Guangdong Binshi Power Technology Co., Ltd is one of the leading manufacturers of diesel and gas generator sets (generator, genset, diesel generator, power generator, silent generator, generating set, power generation). With years' professional experience in generator set design, manufacturing, sale and service, BS Power has won good reputation both at home and abroad.
BS Power has built a number of production bases and service centers across the country. Among them, the South China production base and after-sales service center which is located in Dongguan-the famous manufacturing city in the world, covering an area of 8, 000 square meters, owns more than 100 employees, in which 58 percent is engineering technicians, and has numbers of senior engineers. BS Power is people-oriented, creating the best technical management, marketing and planning talents. With abundant resources and innovative research capabilities, BS Power has established a research and development center with famous domestic universities.
In order to improve BS Power's production and technology capability. The second production base, which is located in Hubei Province with the total investment of 7, 000 million yuan, covering an area of 35, 000 square meters, has been put into production.
BS Power has established long-term close partnership with the world famous generator manufactures, such as Cummins in USA, Perkins in UK, MTU and Deutz in Germany, Doosan in Korea, and the genset is equipped with the famous alternator manufactures, like Marathon (USA), Leroy-somer(France) and Engga(UK). Meanwhile, BS Power has achieved ISO9001: 2008 Quality Certification System and ISO14001: 2004 Environmental Management System.
BS Power sincerely wishes to cooperate with distributors of gensets worldwide to expand its high-quality products in your market to reach the win-win goal in the future. Information about BS Power(manufacturer), products will be offered on your request.
