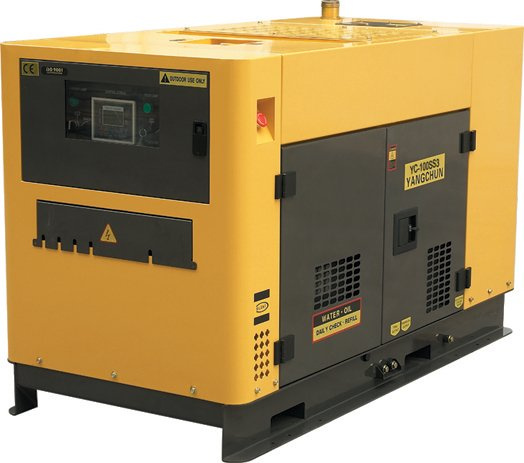

Silent diesel generator with automatic system
Volvo, the largest industrial enterprise in Sweden with more than 120 years history, is an engine manufacturer with the longest history in the world. Up to the present, the engine field exceeds 1 million sets, which have been widely used in large and small automobiles, heavy-duty trucks, engineering machineries and ships. Moreover, they are the ideal drive force of power generation sets.
Specifications:
A. CE certificate
B. ISO9001: 2000 certificate
C. OEM manufactory
D. Good quality and low price
Engine features:
*Engine and alternator shall be mounted on a frame steel skid.
*Built-in rubber damper for anti-vibration.
*Small size, low weight, easy to operating, installation and maintence.
*World famous brand AC alternator, Stamford, Marathon, Leroy Somer.
*Advanced and reliable controll module: Auto start, remote control by PC.
*Full range protect function and alarm shutdown feature.
Alternator features:
*Brushless, 4 poles, rotation magnet.
*IP21-23(NEMA1) enclosure is standard for all industrial alternators.
*The insulation system is Class H.
*Simple installation and maintenance, with easy access to terminals, rotating diodes and coupling bolts.
*Standard 2/3 pitch windings avoid excessive neutral currents.
*AVR auto voltage regulator, auto exciter, auto adjustment.
*Wide range of flange adaptors and single bearing disc coupling.
Soundproof/Silent Box:
I. Excellent ventilation
II. Oil tank mounted on base frame for 12 Hours working.
III. Highly Corrosion Resistant construction
IV. Excellent Access for Maintenance
V. Security and Safety
VI. 1m<80DBA / 7m<70DBA
Control Panel:
I. Automatic control panel (AMF), LCD display
II. Four protection systems
III. Emergency stop
Optional:
I. Trailer type
II. Soundproof / water proof
III. ATS (automatic transfer switch)
IV. Parallel system
V. Remote system
Commercial Conditions:
. Port of loading: Qingdao port
. Port of destination: To be informed
. Delivery time: 15-40 days after down payment
. Payment terms: T/T 100% down payment or 30% deposit, 70% before delivery out of factory
. Insurance: 110% of total amount
. Failure Remedy: Free spare parts due to failures cause by the quality.
Warranty:
The goods are under warranty against defects in material and workmanship for a period of 12 months or 1000 hours, whichever come first from the date of delivery to the end user except the damageable spare parts of genset caused by incorrect man-made operation, and that the aforementioned warranty for the same taken is back up by the engine and alternator suppliers.
Similar products:
Deutz diesel generator, Doosan generator set, Cummins diesel generator set, Weichai power generator, and soundproof generator, movable generator etc, power range from 10kVA to 2000kVA.
Genset Model |
Prime Power |
Diesel Engine |
Alternator |
Overall Size |
(50Hz) |
(L×W×H) |
kVA |
kW |
VOLVO |
STAMFORD |
Soundproof Type (mm) |
GFVV-XZ68 |
85KVA |
68KW |
TD520GE |
W224G |
2150×735×1380 |
GFVV-XZ80 |
100KVA |
80KW |
TAD531GE |
W274A |
2250×735×1550 |
GFVV-XZ108 |
125KVA |
100KW |
TAD532GE |
W274C |
2250×735×1593 |
GFVV-XZ120 |
150KVA |
120KW |
TAD731GE |
W274E |
2550×1000×1600 |
GFVV-XZ150 |
187KVA |
150KW |
TAD732GE |
W274G |
2550×1000×1600 |
GFVV-XZ165 |
206KVA |
165KW |
TAD733GE |
W274H |
2650×1050×1600 |
GFVV-XZ200 |
250KVA |
200KW |
TAD734GE |
W274K |
2650×1068×1650 |
GFVV-XZ220 |
275KVA |
220KW |
TAD940GE |
W314C |
2950×1110×1750 |
GFVV-XZ260 |
325KVA |
260KW |
TAD941GE |
W314E |
3000×1100×1750 |
GFVV-XZ300 |
375KVA |
300KW |
TAD1241GE |
W314G |
3050×1120×1600 |
GFVV-XZ330 |
412KVA |
330KW |
TAD1242GE |
W314H |
3100×1120×1600 |
GFVV-XZ360 |
450KVA |
360KW |
TAD1640GE |
W354C |
3350×1160×2022 |
GFVV-XZ400 |
500KVA |
400KW |
TAD1641GE |
W354D |
3350×1160×2022 |
GFVV-XZ450 |
562KVA |
450KW |
TWD1642GE |
W354E |
3350×1160×2022 |
Qingdao Sanfengtai International Trade Co., Ltd. is a professional manufacturer and supplier of high quality diesel generator and accessories. The company has advanced production lines, sophisticated detection equipment, a complete quality management system, the number of highly qualified engineers and technicians. The business invloves all over the world.
Our factory is located in Dongying, Shandong province which has built a domestic advanced production line with functions of equipment, trial run and paint coating, and a modern laboratory of whole machine and accessories. The company always insists on the following quality policies and targets: Pushing the enterprise operating in the quality system which can be recognized by customes.
Keeping on the objectives of 'quality first, client supreme, all services for clients', Sanfengtai would like to create good future together with you.
