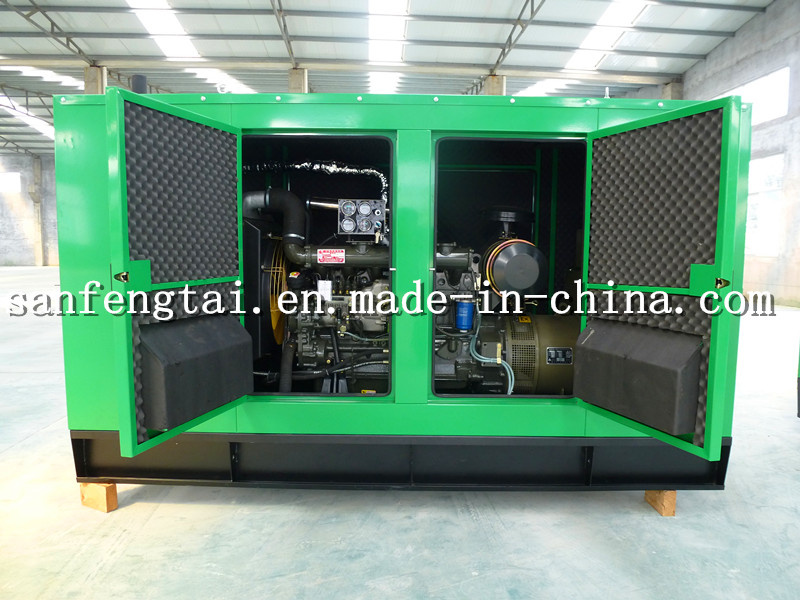

Silent Type 30kW/37.5kVA~300kW/375kVA Diesel Generator
Weichai diesel generator sets consist of Weichai diesel generator and engine. Small volume, strong power, safe and reliable. It's can provide perfect after-sales service and sufficient spare parts. Power is ranged from 30KW to 300KW. Stable in quality with reasonable price.
Specifications:
. Cheap price&reliable quality
. CE&ISO9001-2000
. Low Fuel-consumption
. Outstanding performance
. Good after-sales service
Engine:
I. 4, 6, 8, 12 Stroke
II. Water cooled or air cooled
III. Electric start or manual start
IV. Direct combustion chamber
V. Integrated high intensity cylinder
Alternator:
I. Excitation: Harmonic excitation or phase compound or brushless self excited
II. Phase: 3 phase or single phase
III. Connection: Y connection or other type
IV. Rated speed: 1500/1800RPM, IP21/IP23
V. Regular: Automatic, deviation rate: +-5%
VI. Power factor: 0.8 or 1.0
Supply Scope:
I. Brand-new engine, with start motor.
II. Brand new brushless alternator, single bearing, flange connection, IP23, H insulation class, with AVR.
III. Heavy duty steel channel base frame.
IV. Heavy duty industrial type silencer with flexible bellow.
V. Vibration damping supports between Engine/Alternator and base frame.
VI. Radiator with safety guard.
VII. Automatic strat control panel, Smartgen brand HGM6110 model as standard supply.
VIII. High capacity lead acid battery c/w battery cables.
IX. 3-pole output circuit breaker.
Soundproof/Silent Box:
I. Excellent ventilation
II. Oil tank mounted on base frame for 12 Hours working
III. Highly Corrosion Resistant construction
IV. Excellent Access for Maintenance
V. Security and Safety
VI. 1m<80DBA / 7m<70DBA
Control Panel:
I. Automatic control panel (AMF), LCD display
II. Four protection systems
III. Emergency stop
Optional:
I. Trailer type
II. Soundproof / water proof
III. ATS (automatic transfer switch)
IV. Parallel system
V. Remote system
Commercial Conditions:
. Port of loading: Qingdao port
. Port of destination: To be informed
. Delivery time: 15-40 days after down payment
. Payment terms: T/T 100% down payment or 30% deposit, 70% before delivery out of factory
. Insurance: 110% of total amount
. Failure Remedy: Free spare parts due to failures cause by the quality
Warranty:
The goods are under warranty against defects in material and workmanship for a period of 12 months or 1000 hours, whichever come first from the date of delivery to the end user except the damageable spare parts of genset caused by incorrect man-made operation, and that the aforementioned warranty for the same taken is back up by the engine and alternator suppliers.
Similar products:
Deutz diesel generating set, Doosan generating set, Volvo diesel generating set, Cummins power generator, and soundproof generator, movable generator etc, power range from 10kVA to 2000kVA.
Certification:
Model |
Prime power |
Engine model |
No. of |
Bore/stroke |
Fuel Cons. |
Displacement |
Dimension |
Weight(kg) |
KW |
KVA |
cyls |
(mm) |
(g/kwh) |
(L) |
(L*W*H) (mm) |
LZY30GF |
30 |
37.5 |
K4100D |
4L |
100/115 |
248 |
3.61 |
1700*700*1100 |
740 |
LZY40GF |
41.2 |
51.5 |
K4100ZD |
4L |
100/115 |
238 |
3.61 |
1750*720*1300 |
790 |
LZY45GF |
42 |
52.5 |
R4100D |
4L |
105/125 |
231 |
4.33 |
1800*750*1100 |
850 |
LZY50GF |
56 |
70 |
R4105ZD |
4L |
105/125 |
238 |
4.33 |
1900*750*1250 |
880 |
LZY55GF |
58 |
72.5 |
R6105D |
6L |
105/125 |
248 |
6.49 |
2100*750*1200 |
1150 |
LZY60GF |
60 |
75 |
R4108ZD |
4L |
108/125 |
238 |
4.578 |
2000*750*1100 |
950 |
LZY75GF |
84 |
105 |
R6105ZD |
6L |
105/125 |
238 |
6.49 |
2300*900*1300 |
1380 |
LZY100GF |
110 |
137.5 |
R6105AZLD |
6L |
105/130 |
238 |
6.75 |
2300*900*1450 |
1500 |
LZY120GF |
132 |
165 |
R6105IZLD |
6L |
105/135 |
238 |
7.01 |
2300*900*1450 |
1600 |
LZY150GF |
150 |
187.5 |
LZY6113ZLD |
6L |
113/125 |
238 |
7.522 |
2600*960*1500 |
1700 |
LZY200GF |
228 |
285 |
LZY6126ZLD |
6L |
126/130 |
238 |
9.72 |
3000*1100*1700 |
2500 |
LZY300GF |
300 |
375 |
LZY618D |
6L |
126/155 |
215 |
11.596 |
3300*1300*1800 |
2700 |
Qingdao Sanfengtai International Trade Co., Ltd. is a professional manufacturer and supplier of high quality diesel generator and accessories. The company has advanced production lines, sophisticated detection equipment, a complete quality management system, the number of highly qualified engineers and technicians. The business invloves all over the world.
Our factory is located in Dongying, Shandong province which has built a domestic advanced production line with functions of equipment, trial run and paint coating, and a modern laboratory of whole machine and accessories. The company always insists on the following quality policies and targets: Pushing the enterprise operating in the quality system which can be recognized by customes.
Keeping on the objectives of 'quality first, client supreme, all services for clients', Sanfengtai would like to create good future together with you.
