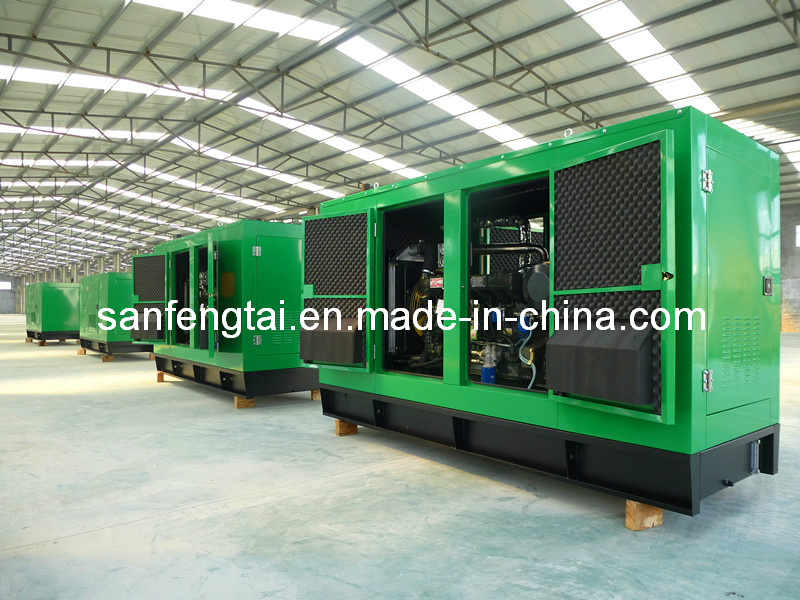

62.5kVA~375kVA Soundproof Diesel Genset/Generator with Deutz Engine
Have excellent performance, small size, light weight, low fuel consumption, low noise, meet the European II, III emission standards, widely used in luxury buses, Truck, Special vehicles, engineering machinery, oil equipment, power generation equipment, and other fields.
Specifications:
1)diesel generator
2)8-24 hours base fuel tank
3)low fuel consumption
4)Highly Corrosion Resistant Construction
5)low noise
Engine Model:
A)Multi-cylinder in-line engine, 4-stroke, direct injection
B)Electronic governors
C)PT fuel injection pump
D)Electric motor starting system
E)Low discharge and below furl consumption
F)installed conveniently and maintained easily
Alternator Model:
A)Brushless, self-excited, 4-pole, single bearing
B)AVR self-regulated, voltage regulation rate<1
C)IP21 protection grade
D)Class Hinsulation
E)Moistureproof, sand-proof, dustproof, salt-proof and vibration-proof
Soundproof/Silent Box:
1. Excellent ventilation
2. Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. Excellent Access for Maintenance
5. Security and Safety
6.1m<80DBA / 7m<70DBA
Control Panel:
1. Automatic control panel (AMF), LCD display
2. Four protection systems
3. Emergency stop
Optional:
1. Trailer type
2. Soundproof / water proof
3. ATS (automatic transfer switch)
4. Parallel system
5. Remote system
Optional AST & ATS Control System:
AST (Automatic Start Type Control System), Optional Automatic Start Type System is provided with a 101A control module or a DACT704 module with LCD display. When there is an interruption in the commercial power supply (or there is a start signal in other generator sets), this generator set will, subject to time delay acknowledgement (0-30 S adjustable), be automatically started (1-8 times adjustable). In addition, it is provided with a basic protection function and digital or meter indication of voltage, current, frequency and rotation speed parameters.
ATS (Automatic Transfer System), The optional system is provided with a fully automatic transfer switch, a control electric apparatus and an indicator light on the control panel and is coordinated with an automatic type contral cabinet, thus serving the fuction of automatic changeover between the power supplied by the grid and the power generated by the genset.
Warranty:
The goods are under warranty against defects in material and workmanship for a period of 12 months or 1000 hours, whichever come first from the date of delivery to the end user except the damageable spare parts of genset caused by incorrect man-made operation, and that the aforementioned warranty for the same taken is back up by the engine and alternator suppliers.
Commercial Conditions:
1. Port of loading: Qingdao port
2. Port of destination: To be informed
3. Delivery time: 15-40 days after down payment
4. Payment terms: T/T 100% down payment or 30% deposit, 70% before delivery out of factory
5. Insurance: 110% of total amount
6. Failure Remedy: Free spare parts due to failures cause by the quality
Warranty:
The goods are under warranty against defects in material and workmanship for a period of 12 months or 1000 hours, whichever come first from the date of delivery to the end user except the damageable spare parts of genset caused by incorrect man-made operation, and that the aforementioned warranty for the same taken is back up by the engine and alternator suppliers.
Similar products:
Weichai diesel generator, Doosan generator set, Volvo diesel generator set, Cummins power generator, and soundproof generator, movable generator etc, power range from 10kVA to 2200kVA.
Model |
Output power |
Ratedpower(A) |
F/RPM
Hz/RPM |
ENGINE |
Size(L×B×H)mm |
Weight(Kg) |
KVA |
KW |
10GFD |
12 |
10 |
18 |
50/1500 |
F2L1011F |
1300×900×1150 |
415 |
16GFD |
20 |
16 |
28.8 |
50/1500 |
F3L1011F |
1300×900×1150 |
465 |
18GFD |
22 |
18 |
32.4 |
50/1500 |
F3M1011F |
1300×900×1150 |
465 |
21GFD |
26 |
21 |
37.8 |
50/1500 |
F4L1011F |
1300×900×1150 |
525 |
25GFD |
31 |
25 |
45 |
50/1500 |
F4M1011F |
1300×900×1150 |
525 |
28GFD |
35 |
28 |
50.4 |
50/1500 |
F3L912 |
1500×1000×1100 |
635 |
33GFD |
42 |
33 |
59.4 |
50/1500 |
BF4M1011E |
1500×1000×1150 |
790 |
35GFD |
44 |
35 |
63 |
50/1500 |
F4L912 |
1500×1000×1100 |
790 |
53GFD |
66 |
53 |
95.4 |
50/1500 |
F6L912 |
2070×1000×1200 |
970 |
53GFD |
66 |
53 |
95.4 |
50/1500 |
BF4M1012E |
2070×1000×1280 |
970 |
62GFD |
77 |
62 |
111.6 |
50/1500 |
BF4M1011EC |
2070×1000×1280 |
990 |
79GFD |
99 |
79 |
142.2 |
50/1500 |
BF4M1013E |
2070×1000×1420 |
1030 |
88GFD |
110 |
88 |
158.4 |
50/1500 |
BF6L913 |
2070×1000×1280 |
1040 |
88GFD |
110 |
88 |
158.4 |
50/1500 |
BF4M1013EC |
2070×1000×1420 |
1080 |
119GFD |
149 |
119 |
214.2 |
50/1500 |
BF6L913C |
2070×1000×1280 |
1060 |
119GFD |
149 |
119 |
214.2 |
50/1500 |
BF6M1013E |
2070×1000×1420 |
1600 |
141GFD |
176 |
141 |
253.8 |
50/1500 |
BF6M1013EC |
2070×1000×1420 |
1680 |
202GFD |
253 |
202 |
363.6 |
50/1500 |
BF6M1015 |
2500×1000×1420 |
2290 |
286GFD |
358 |
286 |
514.8 |
50/1500 |
BF6M1015C |
2800×1200×1780 |
2500 |
343GFD |
429 |
343 |
617.4 |
50/1500 |
BF6M1015CP |
2800×1200×1850 |
2550 |
387GFD |
484 |
387 |
696.6 |
50/1500 |
BF8M1015C |
2800×1200×1850 |
3000 |
440GFD |
550 |
440 |
792 |
50/1500 |
BF8M1015CP |
3060×1400×2070 |
3050 |
554GFD |
693 |
554 |
997.2 |
50/1500 |
TBD616V12G1 |
3060×1400×2070 |
5400 |
594GFD |
743 |
594 |
1069.2 |
50/1500 |
TBD616V12G2 |
4830×1740×2070 |
5500 |
660GFD |
825 |
660 |
1188 |
50/1500 |
TBD616V12G3 |
4830×1740×2070 |
5500 |
704GFD |
880 |
704 |
1267.2 |
50/1500 |
TBD616V12G4 |
4830×1740×2070 |
5500 |
748GFD |
935 |
748 |
1346.4 |
50/1500 |
TBD616V16G1 |
4830×1740×2070 |
6300 |
880GFD |
1100 |
880 |
1584 |
50/1500 |
TBD616V16G2 |
5340×2240×2550 |
6500 |
1100GFD |
1375 |
1100 |
1980 |
50/1500 |
TBD620V12G1 |
6040×2530×2650 |
11000 |
1232GFD |
1540 |
1232 |
2217.6 |
50/1500 |
TBD620V12G2 |
6040×2530×2650 |
11000 |
1320GFD |
1650 |
1320 |
2367 |
50/1500 |
TBD620V12G3 |
6040×2530×2650 |
11000 |
1496GFD |
1870 |
1496 |
2692.8 |
50/1500 |
TBD620V16G1 |
7650×2960×3060 |
13500 |
1584GFD |
1980 |
1584 |
2851.2 |
50/1500 |
TBD620V16G2 |
7650×2960×3060 |
13500 |
1760GFD |
2200 |
1760 |
3168 |
50/1500 |
TBD620V16G3 |
7650×2960×3060 |
14200 |
Qingdao Sanfengtai International Trade Co., Ltd. is a professional manufacturer and supplier of high quality diesel generator and accessories. The company has advanced production lines, sophisticated detection equipment, a complete quality management system, the number of highly qualified engineers and technicians. The business invloves all over the world.
Our factory is located in Dongying, Shandong province which has built a domestic advanced production line with functions of equipment, trial run and paint coating, and a modern laboratory of whole machine and accessories. The company always insists on the following quality policies and targets: Pushing the enterprise operating in the quality system which can be recognized by customes.
Keeping on the objectives of 'quality first, client supreme, all services for clients', Sanfengtai would like to create good future together with you.
