Silent Diesel Generator 50 kw with Multi-Functional Control PanelTechnic data:
Specification of Genset |
Gensets model | LF50GF | Voltage Regulation Steady State(%) | ≤±1 |
Output power | 50kw | Voltage Regulation (%) | ≤±0.5 |
power factor | COSΦ=0.8(lagging) | Transient State Voltage(%) | +20~-15 |
Output voltage | 400V/230V | Voltage settling time(s) | ≤1 |
Output current | 90A | Frequency regulation steady state(%) | ≤±1 |
Rated frequency | 50HZ | Frequency fluctuation rate | ≤±0.5 |
Rated speed | 1500rpm | Transient frequency regulation | +10~-7 |
Fuel grade | (normal) 0# light diesel oil (normal temperature) | Frequency stability time | ≤3 |
Dimensons | 1850×900×1400(L×W×H mm) | 100% load fuel consumption | 230g/kw.h |
Gensets weight | 1250 kg | Noise(LP7m) | 95 dB(A) |
Specification of diesel |
Brand | yuchai | Cooling type | Forced water cooling cycle |
| | Oil provice system | Direct injection |
Number of cylinders | 4/L | Speed governor | Electronic |
Bore×Stroke | 108X115mm | Aspiration | Turbocharged |
Compression ratio | 17.5:1 | Overload capacity | 110% |
Starting method | DC24V electrical starting | Rotating speed | 1500 rpm |
Specification of alternator |
Brand/ | Laurel | Protection Grade | IP22 |
Place of original |
Engine model | HRS80 | Connection type | 3 phrase 4 wires,Y tupe |
Rated power | 100kw | Regulation approach | AVR (automatic voltage regulating) |
Output voltage | 400V/230V | Output frequency | 50Hz |
Insulation class | H | Output factor | COSΦ=0.8(lagging) |
Standard configuration |

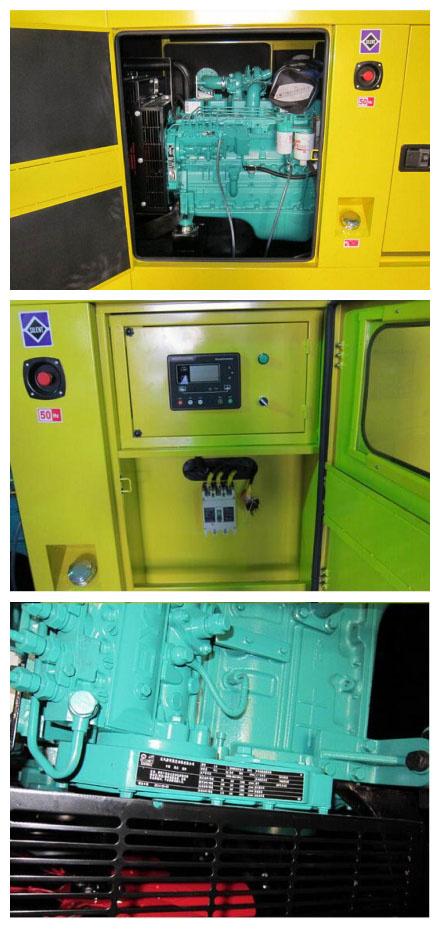

Direct Injection diesel engine |
AC synchronous generator(singal bearing) |
Suitable 40-50ºC radiator tank,cooling fan by belt driving, fan safety shield |
Power output Air Switch, standard control panel |
Steel Base(including dumping rubber mat) |
Dry type air filter,fuel filter,lubricat filter,starting motor,and self-charging generator |
Battery and its connection wire |
9dB muffler used in Industrial |
Suppling documents: diesel engine and alterator engine technical docyments, generator set specification, test report, etc |
Selected Parts (should be paid) |
Engine oil, diesel, water jacket Anti-condensation heaters | Split-type daily fuel tank, one-piece base fuel tank |
Floating battery charger | Waterproof generator set |
Self-protection Automatic genset control panel | Soundproof generator set |
Multi-function genset control panel | Mobile/trailer generator set |
ATS automatic transfer switch | Soundproof mobile generator set |
Performance Feature:
1. Engine and alternator shall be mounted on a same frame steel skid.
2. Built-in damper for anti-vibration.
3. World most famous brand diesel engine.
4. World famous brand AC alternator.
5. Advanced and reliable control module
6. Full range protection function and alarm shutdown feature.
Alternator Feature:
1. Brush-less, 4 poles, rotation magnet.
2. IP21-23(NEMA1) enclosure is standard for all industrial alternators.
3. The insulation system is Class H
4. Simple installation and maintenance, with easy access to terminals,
rotating diodes and coupling bolts.
5. Wide range of flange adaptors and single bearing disc coupling.
6. Standard 2/3 pitch windings avoid excessive neutral currents
7. AVR auto voltage regulator, auto exciter, auto adjustment
Standard Accessory:
Common steel base frame, Damper, Exhaust silencer, Flexible pipe, Battery and connecting wires,
Operation manual and document.
Optional Accessory:
Engine coolant and oil heater, Alternator space heater, Cooling for heat exchanger, Control system
with RS232/485 communication interface, Battery charger by main supply, Fuel-water separator,
Daily fuel tank, ATS & paralleling system, and Moving Trailer.

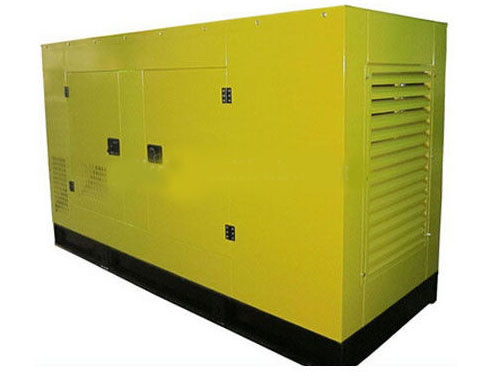

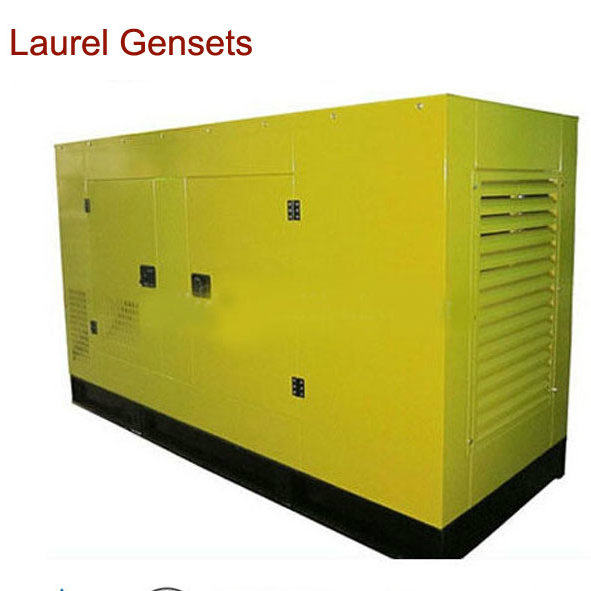

Silent Canopy Description:
Standard Accessory:
Steel Weatherproof Canopy
Built In Fuel Tank For 8 Hours Running
Built In Control Panel
Built In Start Battery
Power Output Rapid Insert
Windows for Looking
Air Louver for Intake & Exhaust
Exhaust Gas Silencer
Soundproof Type ,container type
ATS SYSTEM:
For emergency power usage in building, Auto transfer switch (ATS) is essential. ATS can
automatic transfer load from Mains power supplying to Emergency power. In normal, when the
Main power supplying failure or voltage drop below 80% of normal voltage, ATS will auto start
Emergency generator set after a preset time of 0-10 sec (adjustable according to the users).
Once generator reach at rated speed, the ATS will transfer the load to emergency generator
sets automatically.
Our main products:
We are engaged in the production and sale of diesel generator sets, generators, engines, water pumps and other agricultural machinery products. We have obtained the relevant certifications such as ISO, CE,ROHS, GS, TUV etc.
Guarantee Service
We have 34 years of export experience. We deliver not only our products, but also our value-added technical support and after-sales service. We ensure that all our original purchasers get Laurel & Honesty Holdings products guarantee under this warranty statement.
Warranty Period
We will provide a warranty period of 24 months or 1200 operating hours to the original purchasers for all our Diesel associated products, and a warranty period of 12 months or 1000 operating hours to the original purchasers for all gasoline associated products. The warranty period starts from the day of delivery to the original retail purchaser.
Guangzhou Laurel & Honesty Holdings, founded in 1981, is professional company focusing on generators and Agricultural machines.
It has been 34 years since our factory was founded. Our main products are diesel generator sets, generators, marine engines, engines, water pumps and other agricultural machinery products. We have obtained the relevant certifications such as ISO, CE, RoHS, GS, TUV etc.
QUALITY GUARANTY POLICY
1. Guaranteed products
All kinds of Generator sets, generators, engines, pumps, control panels and agricultural machines sold by our company, Guangzhou Laurel & Honesty Holdings.
2. Base warranty period
1)The warranty period of generator sets is 2 years or 1200 running hours (the earlier one shall prevail) from the date when the generator set have been delivered from the factory.
2)The warranty period of generators, engines, pumps, control panels and agricultural machines is 1 year or 1000 hours from the date when the goods have been delivered from the factory whichever is coming first, the warranty period will be ended.
3)Any other special stipulation according to the order.
3. Guaranty range
The user shall strictly follow the operation handbook and service statement (included all the products mentioned above) to maintain and keep the equipments, the goods has any malfunctions caused due to the manufacture quality problems in the guarantee period.
4. Limit of guaranty
1)The goods is damaged during transport, Carrier shall take charge of the amends.
2)The goods is damaged due to unsuitable setting or doesn't follow the installation manual which offered by our company.
3)The goods is damaged due to the user doesn't follow the service statement to replace the filter and lube oil in the stated period.
4)The goods is damaged due to the user doesn't use the appointed oil filter, fuel filter, air filter which mentioned in the manual book.
5)The goods is damaged due to the user make bold to replace or use the spare parts or add other equipment on it without our company approbation.
6)The goods is damaged due to disassembly parts from the equipments without our company approbation.
7)The goods is damaged due to unsuitability place, start, warm-up, stop and so on.
8)The goods is damaged due to using disqualification fuel or other substance mixed in the fuel, such as water, impurity, contamination and so on.
9)Our company shall provide free maintenance service for malfunctions caused due to the manufacture quality, but not take charge of any overhead expensed, losing and any fault analysis fee.
. AFTER-SALES SERVICE POLICY
Guangzhou Laurel & Honesty Holdings will meet the needs of consumers as possible. They can expect to enjoy our specialized service from product manufacturing, delivery and installation to the technical support and maintenance during operation process. After receive the feedback of quality problem, we answer the consumers and supply problem solve program in 24 hours. Do our best to supply satisfied service.
You can get the following services:
1. Provide complete qualified products:
Once business cooperation is established, customers will immediately be presented with detailed technical information according to products.
(1)Product information
(2)Engine information
(3)Alternator information
(4)Automatic Start-Stop Systems information
(5)Insulation Protection information
2. Provide complete technical support, including installation and commissioning services:
After the customer receive the goods, we can provide installation and commissioning advisory guidance, and also can assign engineering technologist with installation experience to the scene and guide the on-site installation if necessary.
3. Professional technology personnel training:
If the customer requirements, we will arrange technical personnel training, guidance.
4. Maintenance Service.
5. Supply technology assistance for your whole life.
