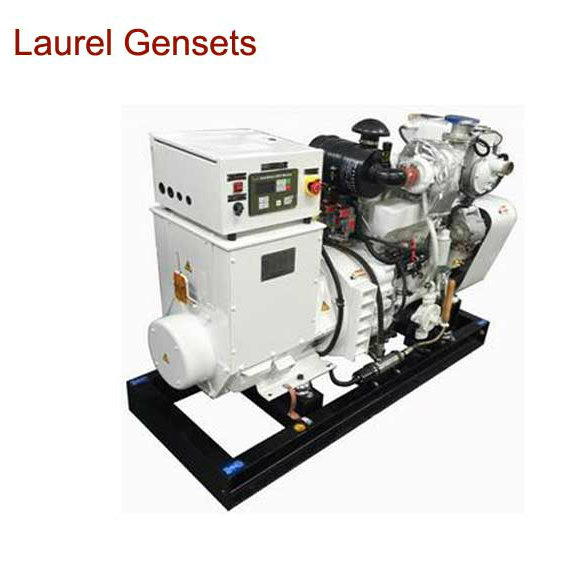

40kw Cummins Marine Power Generator with Rmrs Certification
| Price: |
US $ 6000-110000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
40kw cummins marine power generator with RMRS certification
| Marine diesel generator Specification |
|
| PROJECT: | 40kw Marine diesel generator with RMRS and Danfoss sensor |
| MODEL: | LFJ40J(4B-CP40 DM/5) |
| QTY. | 1 Set |
|
|
| Section A |
|
| Diesel generator Technical Specification |
|
| Generator Set Model: | CCFJ40J(4B-CP40 DM/5) |
| Prime Output Power: | 40kw |
| Overload | 10% |
| Rating Conditions: | In accordance with ISO-3046 reference conditions: |
| Governor regulation class | ISO8528 G3 |
| Voltage regulation (no load to full load) | ± 1% |
| Steady-state voltage variation | ± 1% |
| Frequency regulation (no load to full load) | Isochronous(0%) |
| Steady-state frequency variation | ±0.25% |
| EMC compatibility | BS EN 61000-6-4 / BS EN 61000-6-2 |
| Voltage | 400 VAC |
| Frequency | 50Hz |
| Speed | 1500 rpm |
| P.F. | 0.8 |
| Governor Type: | Electrical type |
|
|
| Section B |
|
| Technical Specification of Engine |
|
| Engine brand: | Cummins |
| Engine Model: | 4BTA3.9-GM47 |
| Configuration | Cast iron, in-line, 4-cylinder |
| Displacement, L | 3.9 |
| Compression ratio | 17.3:1 |
| Aspiration | Turbocharged and water-to-air aftercooled |
| Fuel system | Direct injection |
| Bore* stroke, mm | 102*120 |
| Rated speed, rpm | 1500 |
| Governor type | Electronic |
| Starting voltage | 24V, negative ground |
| Battery charging alternator | 24V,40A |
|
|
| Technical Specification of Alternator |
|
| Main Alternator Model | Stamford UCM224E |
| Configuration of Main Alternator | Brushless,PMG,Single bearing,Air cooling |
| Voltage | 230/400V |
| Frequency & Speed | 50HZ/1500RPM |
| Power factor | 0.8 |
| Voltage Adjust range | ≥5% |
| Voltage Regulation NL-FL | ≤±0.5% |
| Insulation Grade | H |
| Protection Grade | IP23 |
|
|

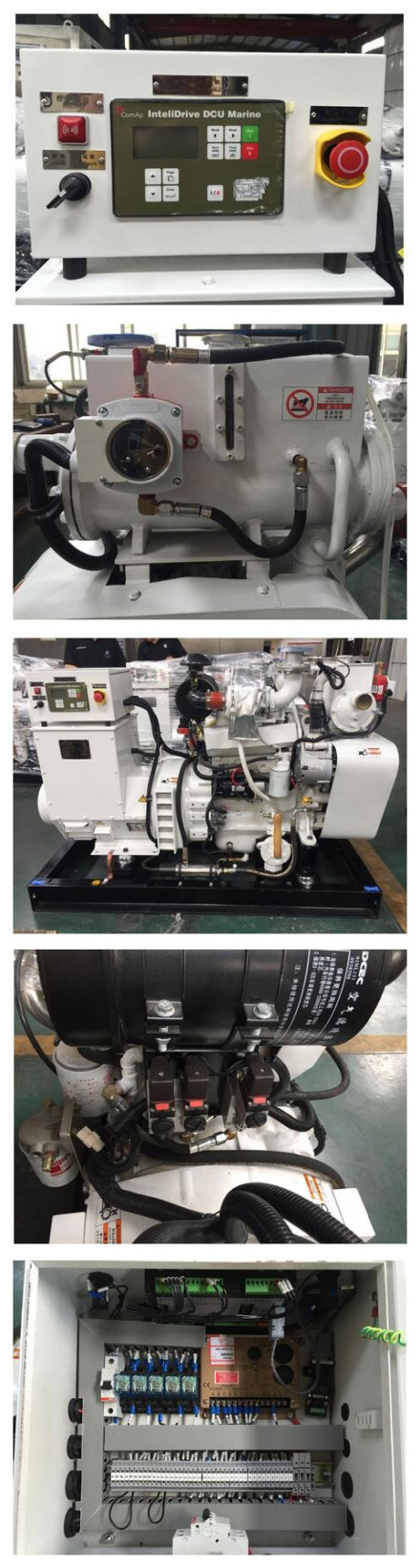

| Technical Specification of Control panel |
|
| Control Brand | Comap ID DCU |
InteliDrive ID-DCU Industrial is a specialized engine controller for Industrial and Marine applications. It
controls, monitors and protects the engine in single (Auxiliary) or variable (propulsion) speed operational
modes. The controller can communicate with Engine Management System via the CAN serial line using
standard J1939 or another (KWP2000) communication protocol.
InteliDrive controllers are equipped with a powerful graphic display with icons, symbols and bar-graphs for
intuitive operation, which together with high functionality sets new standards in engine controls. |
| Microcomputer digital control, and reliable work. |
| Digital display of parameters of diesel engine, and integration of measuring and monitoring. |
| Modularization of functional configuration, and ntegration of product structures. |
| Resistance to vibration, humidity, salt mist and high/low temperature. |
| Powerful ability to resist interference, convenient installation and use, and high performance-price ratio. |
| Remote monitoring of running parameters. |
| Automatic zero set of lubricating oil pressure. |
| Accumulation of running period of diesel engine. |
| Automatic shut offs on high temperature & low oil pressure. |
Our main products:
We are engaged in the production and sale of diesel generator sets, generators, engines, water pumps and other agricultural machinery products. We have obtained the relevant certifications such as ISO, CE,ROHS, GS, TUV etc.
Guarantee Service
We have 34 years of export experience. We deliver not only our products, but also our value-added technical support and after-sales service. We ensure that all our original purchasers get Laurel & Honesty Holdings products guarantee under this warranty statement.
Warranty PeriodWe will provide a warranty period of 24 months or 1200 operating hours to the original purchasers for all our Diesel associated products, and a warranty period of 12 months or 1000 operating hours to the original purchasers for all gasoline associated products. The warranty period starts from the day of delivery to the original retail purchaser.
| Prod Model: |
LFJ40J |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency: |
50Hz/60Hz |
| Rated Power: |
40kw |
| Rated Voltage: |
400V |
| Rated Current: |
80A |
| Type: |
Basic Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
| Excitation Mode: |
Brushless, Self-Excitation |
Guangzhou Laurel & Honesty Holdings, founded in 1981, is professional company focusing on generators and Agricultural machines.
It has been 34 years since our factory was founded. Our main products are diesel generator sets, generators, marine engines, engines, water pumps and other agricultural machinery products. We have obtained the relevant certifications such as ISO, CE, RoHS, GS, TUV etc.
QUALITY GUARANTY POLICY
1. Guaranteed products
All kinds of Generator sets, generators, engines, pumps, control panels and agricultural machines sold by our company, Guangzhou Laurel & Honesty Holdings.
2. Base warranty period
1)The warranty period of generator sets is 2 years or 1200 running hours (the earlier one shall prevail) from the date when the generator set have been delivered from the factory.
2)The warranty period of generators, engines, pumps, control panels and agricultural machines is 1 year or 1000 hours from the date when the goods have been delivered from the factory whichever is coming first, the warranty period will be ended.
3)Any other special stipulation according to the order.
3. Guaranty range
The user shall strictly follow the operation handbook and service statement (included all the products mentioned above) to maintain and keep the equipments, the goods has any malfunctions caused due to the manufacture quality problems in the guarantee period.
4. Limit of guaranty
1)The goods is damaged during transport, Carrier shall take charge of the amends.
2)The goods is damaged due to unsuitable setting or doesn't follow the installation manual which offered by our company.
3)The goods is damaged due to the user doesn't follow the service statement to replace the filter and lube oil in the stated period.
4)The goods is damaged due to the user doesn't use the appointed oil filter, fuel filter, air filter which mentioned in the manual book.
5)The goods is damaged due to the user make bold to replace or use the spare parts or add other equipment on it without our company approbation.
6)The goods is damaged due to disassembly parts from the equipments without our company approbation.
7)The goods is damaged due to unsuitability place, start, warm-up, stop and so on.
8)The goods is damaged due to using disqualification fuel or other substance mixed in the fuel, such as water, impurity, contamination and so on.
9)Our company shall provide free maintenance service for malfunctions caused due to the manufacture quality, but not take charge of any overhead expensed, losing and any fault analysis fee.
. AFTER-SALES SERVICE POLICY
Guangzhou Laurel & Honesty Holdings will meet the needs of consumers as possible. They can expect to enjoy our specialized service from product manufacturing, delivery and installation to the technical support and maintenance during operation process. After receive the feedback of quality problem, we answer the consumers and supply problem solve program in 24 hours. Do our best to supply satisfied service.
You can get the following services:
1. Provide complete qualified products:
Once business cooperation is established, customers will immediately be presented with detailed technical information according to products.
(1)Product information
(2)Engine information
(3)Alternator information
(4)Automatic Start-Stop Systems information
(5)Insulation Protection information
2. Provide complete technical support, including installation and commissioning services:
After the customer receive the goods, we can provide installation and commissioning advisory guidance, and also can assign engineering technologist with installation experience to the scene and guide the on-site installation if necessary.
3. Professional technology personnel training:
If the customer requirements, we will arrange technical personnel training, guidance.
4. Maintenance Service.
5. Supply technology assistance for your whole life.
