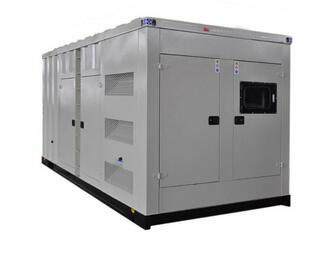

350-800kVA Silent Diesel Genset /Generator
| Price: |
US $ 8000-100000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
350-800kva Silent Diesel Genset /Generator
Product details:
Place of Original: Guangdong China
Brand Name: Laurel
Model Number: LFS360GF
Output Type: AC Three Phase
Speed: 1500RPM
Frequency: 50/60HZ
Rated Power: 350-800kva
Rated Voltage: 400/230
Rated Current: 649A
Diesel Genset: 360kva Silent Type Diesel Genset Manufacturer
Engine Brand: UK Engine
Alternator Brand: Stamford ; MECC; Marathon
Control Panel: Smartgen ;DSE
Genset Type: Open Type; Silent Type
Warranty: 1year or 1000hours
Packing: Plywood
Delivery Time: 5days
Silent Canopy Color: White ;Yellow
Payment & shipping terms:
Minimum Order Quantity: 1 set
Price : Negotiable
Payment terms: 30% T/T in advance and 70% balance before shipment/ 100% L/C at sight
Supply ability: 200 sets / month
Packing & Delivery
Packing details: Plywood
Delivery time: 30 days after received payment

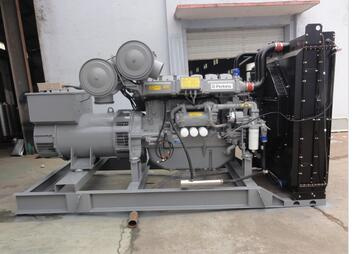

350kva-800kva diesel generator power plant
| Diesel Generator Set Specification |
| Generator Set Model | FF-350GF |
| Standby Power | |
| Prime Power | 350kva |
| Rated Voltage | 380V |
| Output Frequency | 50Hz |
| Power Facts | 0.8 |
| Starter Motor | DC 24V |
| Voltage Method | AVR |
| Fuel Consumption at 100% Load(g/kwh) | ≤218g/kw.h |
| Total Oil Capacity(L) | 17L |
| Size (Soundproof type) | 5300*2200*2600mm |
| Weight(kg) | 10300kg |
| GB/T2820,GB/T12786-1991 |
| Engine Specification |
| Manufacture | UK |
| Displacement | 45.82 |
| Prime Power/Speed(Kw/rpm) | 349kw |
| Rated Rpm | 1500 rpm |
| Cylinder arrangement | 6 cycles ,Vertical in-line Water-cooled four stroke |
| Cooling System | Water-cooled, 40°C Radiator As Standard, 50°C Is Optional |
| Governor Type | Electricial |
| Starter Motor | DC 24V |
| Bore * Stock | 145*183mm |
| Exhaust System |
| Exhaust Gas Flow | 19.44m3/min |
| Exhaust Temperature: | 495°C |
| Max Back Pressure- | 1OkPa |
| Fuel System |
| 100%( Prime Power) Load: | 218g/kw.h |
| 75%(Prime Power) Load: | 222g/kw.h |
| Alternator Specification |
Compliance with GB755, BS5000, VDE0530, NEMAMG1-22, IED34-1,CSA22.2 and AS1359
standards. |
| Alternator Brand | Stamford |
| Model | |
| Exciter Type | Brushless, Self-excited |
| Rated Power | 1200KW |
| Rated Voltage | 1600V |
| Rated Frequency | 50HZ |
| Phase | 3 phase 4 wires |
| Insulation Grade | H |
| Protection Grade | IP23 |

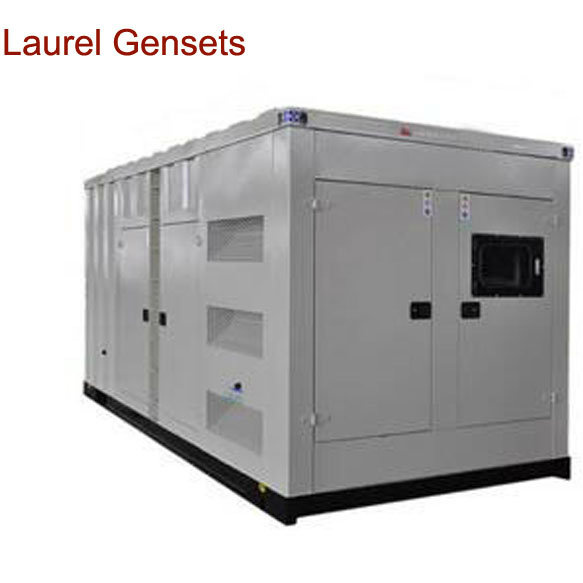

Silent Canopy
SPECIFICATION
FENGFA container type silent generator's design is based on the normal or automatic
diesel generator set and extended with the state-of-art noise enclosure to make the noise of the generator less than 85dB(A) at 1m,
or70~75dB(A) at 7m, 60~65dB(A) at 15m.
High performance
multi-way air intake and exhaust guarantee the power performance of generator.
large-scale impedance combined type silencer effectively reduce noise of the generator.
Construction features
Cold steel materials.
Zinc plated and Corrosion resistance.
Elegant appearance and reliable quality.
Stainless steel locks and hinges.
Access to all weather conditions.
Fireproof, waterproof and dustproof.
Ladders in the side for easy access to the top.
High quality soundproof materials could efficiently reduce noise.
Maintenance features
180° revolvable and disassemble door for easy maintenance.
Container type locks for easy operation and indefectible.
Lights inside of the canopy for maintenance.
Security and Safety
Transparent viewing window make the control panel clear at a glance.
Emergency stop button mounted on the canopy exterior.
Pipe of lube oil and cooling fluid is mounted on the bottom of generator for easy let.
Fuel refill and battery can easily be accessed by lockable door.
Cooling fan and battery are fully guarded.
Heat insulation of exhaust smoke system inside the canopy.
Fire extinguishers are easily got at the door.
Transportation
Lifting ear is mounted in the base frame and on the top.
3,Alternator Brand:Stamford ,Marathon ,MECC, Copy Stamford ,Faraday,and other brand .
4,Controller:DSE ,SMARTGEN
1)Automatic control panel: use Smartgen or DSE controller: with automatic start, automatic
stop; disply current , voltage, frequency, power, power factor, oil temperature, water
temperature, oil pressure. Automatic protection function: overload, short circuit, high water
temperature, low oil pressure, oil temperature and overspeed protection function;
2)Switch: the French model high beauty technology, small size, impact resistance, large current,
high sensitivity, short trnsition time, etc.
3)Function: after the power grid, the controller signal launch, 10 seconds to start the generator
set (time can be adjusted 3 to 30 seconds) switch switch to power generation side. After the mains calls, controller signal downtime, delay 3 minuts downtime generator speed down.Why choose us?

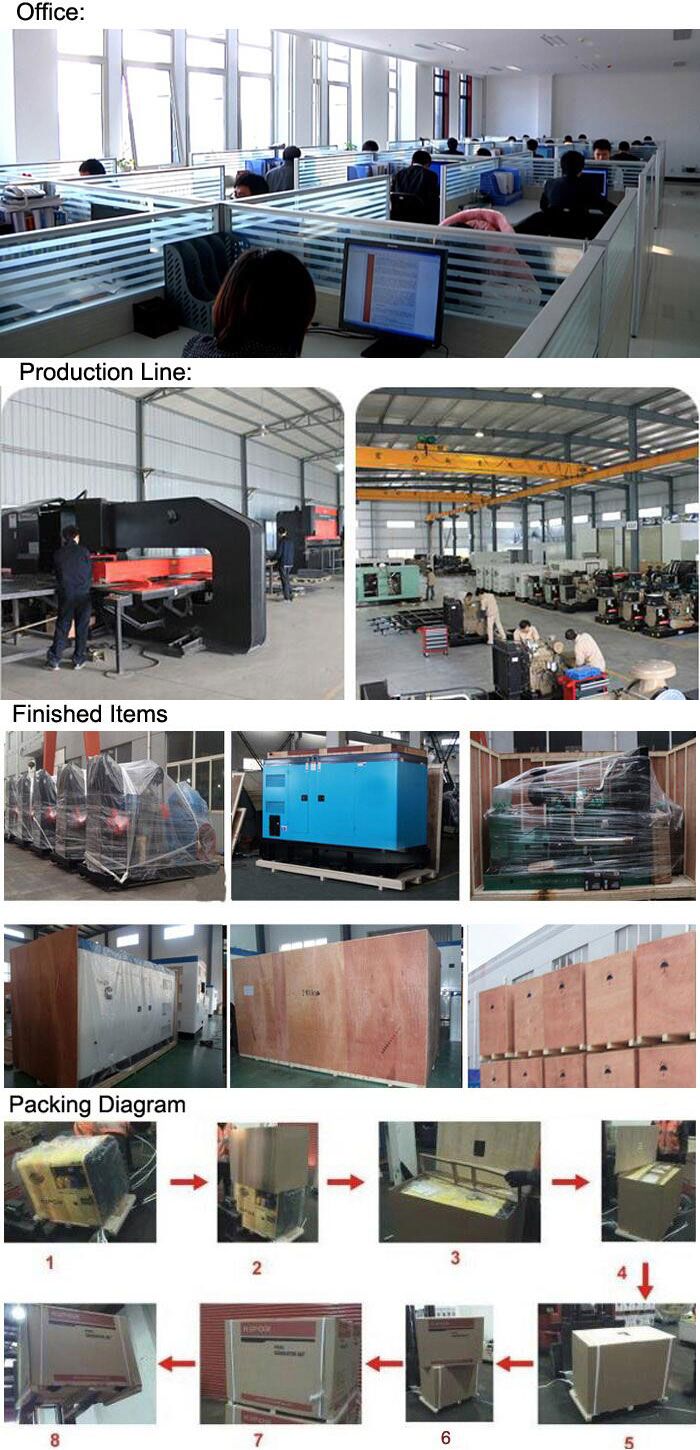

Company's Profile
Guangzhou Laurel & Honesty Holdings, founded in 1981, has 35 years export experience in
Guangzhou. Our main export products are diesel generator sets, small power gasoline or diesel generat
ors, small power gasoline or diesel engines, gasoline water pumps and other machinery products, as
well as architectural glass and other building materials. We have obtained the relevant certifications such
as ISO, CE,ROHS, GS, TUV etc
Guarantee Service
We deliver not only our products, but also our value-added technical support and after-sales service. We
ensure that all our original purchasers get Laurel & Honesty products guarantee under this warranty
statement.
Warranty Period
We will provide a warranty period of 24 months or 1200 operating hours to the original purchasers for all
our Diesel associated products, and a warranty period of 12 months or 1000 operating hours to the
original purchasers for all gasoline associated products. The warranty period starts from the day of
delivery to the original retail purchaser
| Prod Model: |
LFS360GF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Laurel |
| Frequency: |
50Hz |
| Rated Power: |
750kVA to 2500kVA |
| Certificates: |
CE&ISO |
| Rated Current: |
>150A |
| Alternator: |
Stamford |
| Warranty: |
24 Months or 1200 Operating Hours |
| Type: |
Basic Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
| Conditions Of Use: |
Outdoor/ Puplic Ect |
| Excitation Mode: |
Brushless Self-Exciter |
Guangzhou Laurel & Honesty Holdings, founded in 1981, is professional company focusing on generators and Agricultural machines.
It has been 34 years since our factory was founded. Our main products are diesel generator sets, generators, marine engines, engines, water pumps and other agricultural machinery products. We have obtained the relevant certifications such as ISO, CE, RoHS, GS, TUV etc.
QUALITY GUARANTY POLICY
1. Guaranteed products
All kinds of Generator sets, generators, engines, pumps, control panels and agricultural machines sold by our company, Guangzhou Laurel & Honesty Holdings.
2. Base warranty period
1)The warranty period of generator sets is 2 years or 1200 running hours (the earlier one shall prevail) from the date when the generator set have been delivered from the factory.
2)The warranty period of generators, engines, pumps, control panels and agricultural machines is 1 year or 1000 hours from the date when the goods have been delivered from the factory whichever is coming first, the warranty period will be ended.
3)Any other special stipulation according to the order.
3. Guaranty range
The user shall strictly follow the operation handbook and service statement (included all the products mentioned above) to maintain and keep the equipments, the goods has any malfunctions caused due to the manufacture quality problems in the guarantee period.
4. Limit of guaranty
1)The goods is damaged during transport, Carrier shall take charge of the amends.
2)The goods is damaged due to unsuitable setting or doesn't follow the installation manual which offered by our company.
3)The goods is damaged due to the user doesn't follow the service statement to replace the filter and lube oil in the stated period.
4)The goods is damaged due to the user doesn't use the appointed oil filter, fuel filter, air filter which mentioned in the manual book.
5)The goods is damaged due to the user make bold to replace or use the spare parts or add other equipment on it without our company approbation.
6)The goods is damaged due to disassembly parts from the equipments without our company approbation.
7)The goods is damaged due to unsuitability place, start, warm-up, stop and so on.
8)The goods is damaged due to using disqualification fuel or other substance mixed in the fuel, such as water, impurity, contamination and so on.
9)Our company shall provide free maintenance service for malfunctions caused due to the manufacture quality, but not take charge of any overhead expensed, losing and any fault analysis fee.
. AFTER-SALES SERVICE POLICY
Guangzhou Laurel & Honesty Holdings will meet the needs of consumers as possible. They can expect to enjoy our specialized service from product manufacturing, delivery and installation to the technical support and maintenance during operation process. After receive the feedback of quality problem, we answer the consumers and supply problem solve program in 24 hours. Do our best to supply satisfied service.
You can get the following services:
1. Provide complete qualified products:
Once business cooperation is established, customers will immediately be presented with detailed technical information according to products.
(1)Product information
(2)Engine information
(3)Alternator information
(4)Automatic Start-Stop Systems information
(5)Insulation Protection information
2. Provide complete technical support, including installation and commissioning services:
After the customer receive the goods, we can provide installation and commissioning advisory guidance, and also can assign engineering technologist with installation experience to the scene and guide the on-site installation if necessary.
3. Professional technology personnel training:
If the customer requirements, we will arrange technical personnel training, guidance.
4. Maintenance Service.
5. Supply technology assistance for your whole life.
