INTRODUCTION
1FC6 brushless 3 phase synchronous generators is renewal product instead of 1FC5 series generators in 1980's.We introduced the advanced patent techniques of this generators from siemens in 1989.Our company have obained quality system certificate by siemens and technological certificats and by the ministry of machinery industry and the classification Societies of china in 1990.In recent years measurement ability of the series generators are raised through technological Introdction and tfansformations.
The series generators can be used as spare power or mobile power supply applied to railway post,mile and charter,which have gone into international market.

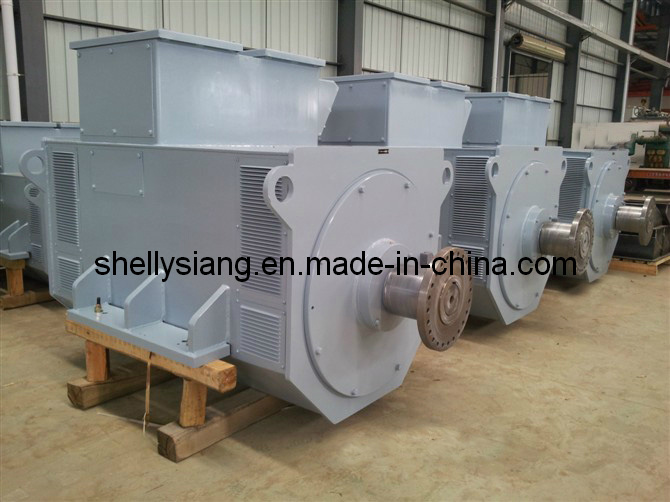

Siemens Micro Hydro Power Water Turbine Permanent Magnet Generato(IFC6 506-10 475kw/600rpm)
If you want to know more information about Siemens Micro Hydro Power Water Turbine Permanent Magnet Generato(IFC6 506-10 475kw/600rpm) , Contact with us freely .
Type |
(KW)
Rated output(KW) |
Rated Voltage(v)
(V) |
Rated FRE(Hz)
Hz |
Rated speed
(rpm) |
Power factor
COS φ |
Efficiency(%)
(%) |
Moment of inevtia
(Kg.m) |
Set weight(kg)
(kg) |
(mm)
Overall Dimensions |
|
L |
S |
L×W×H |
IFC6 502-10
IFC6 504-10
IFC6 506-10 |
440
470
530 |
400
425
475 |
400 |
50 |
600 |
0.8
()
(lagging) |
92.9
93.0
93.4 |
39.1
47.3
50.4 |
3300
3700
3900 |
1970×1310×1400
2100×1310×1400
2100×1310×1400 |
New Diesel Machinery Co., Ltd. Has more than ten years experience in complete engine, power generator set, engine pump sets and spare parts.
We are the OEM factory of China Cummins(such as B series engines, C series engines, L series engines, and N series, K series, ISBe, ISDe, ISCe, ISLe etc. ); DEUTZ/KHD(912 series, 913 series, 413/513 series, TBD series, and 1013 series, 1015series, D302 series and so on ), ISUZU(4JB1, 4JA1 etc ), PERKINS(1003, 1004 series), CATERPILLAR(3306 series ), SOFIM and so on. With years experience, we also can supply power unit for the engine, design according to customer's special needs.
Meanwhile we manufacture power generator set (marine generator set /industrial generator set ) &engine pump set for all the customer over the world.
Our Goal: Customer-oriented service and quality products.
Our Tenet: Honest, Professional, and innovation-seeking.
