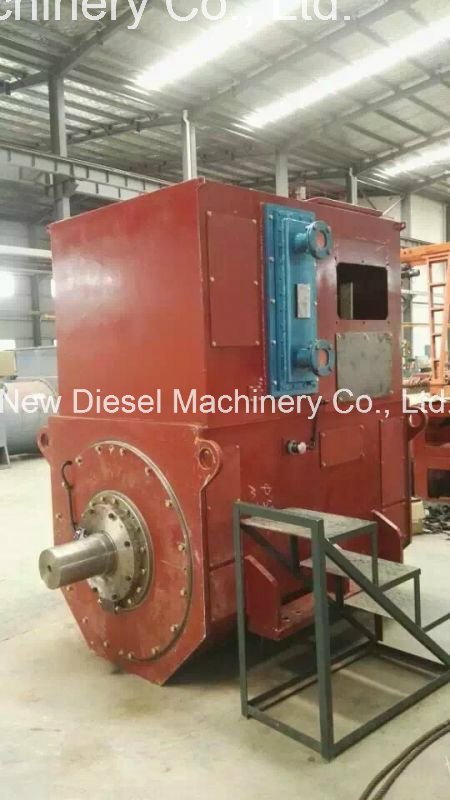

| 1 | Type of generator | JFG 1200-4/3150 | | 2 | Rated output(kVA) | 1320 kVA | | 3 | Rated voltage | 3150 V | | 4 | Rated current | 413 A | | 5 | Rated frequency | 50 Hz | | 6 | Power factor | COS¢=0.8 | | 7 | Rated speed | 1500 r/min | | 8 | Efficiency | 95.7 % | | 9 | Phases | 3 | | 10 |
Type of connection | Three-phase and 3 main connections (Y) | | 11 |
Type of excitation | Brushless excitation | | 12 | Class of insulation | H | | 13 | Degree of protection | IP44 | | 14 | Type of cooling | -(IC W87)Air - cooled
Water: 22.7 m3 / h
Water temperature: ≤32 ºC
Working pressure: 0.3 MPa
| | 15 | Type of mounting | IM B3 | | 16 | Moment of inertia | 39.5 kgm2 | | 17 | Voltage regulator | Digital voltage regulator | | 18 | Whole Weight | 6500 kg | | 19 | Bearing | Double Bearing | | 20 | /
Temperature of environment/Altitude | -15~+40ºC/≤1000m | | 21 |
Direction of rotation | ()Clockwise running when viewed from the drive end | | 22 |
The direction of cable terminals | ()right when viewed from the drive end |
|
Our company can provide siemens series alternators , marine and industiral ,high voltage , special designed alternators according tocustomer's request . If you need to know more information ,contact with us freely .
New Diesel Machinery Co., Ltd. Has more than ten years experience in complete engine, power generator set, engine pump sets and spare parts.
We are the OEM factory of China Cummins(such as B series engines, C series engines, L series engines, and N series, K series, ISBe, ISDe, ISCe, ISLe etc. ); DEUTZ/KHD(912 series, 913 series, 413/513 series, TBD series, and 1013 series, 1015series, D302 series and so on ), ISUZU(4JB1, 4JA1 etc ), PERKINS(1003, 1004 series), CATERPILLAR(3306 series ), SOFIM and so on. With years experience, we also can supply power unit for the engine, design according to customer's special needs.
Meanwhile we manufacture power generator set (marine generator set /industrial generator set ) &engine pump set for all the customer over the world.
