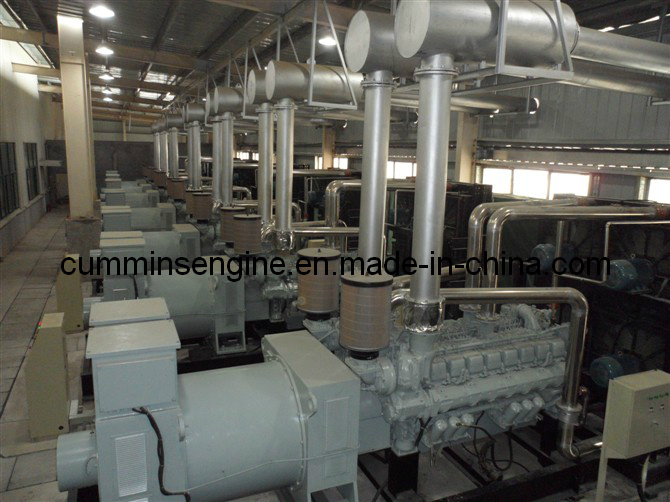

10500V AC sychronous brushless alternators(6304-4 1500kw/750rpm)
The generator comprise the main machine(revolving-field machine with cylindrical rotor and damper windings), exciter(revolving armature machine) and excitation equipment. The excitation system mainly adopts currently the world's most advanced DECS100 or UNITROL 1000 digital automatic voltage regulator which is produced by BASLER company or Switzerland ABB company, by using the permanent-magnet auxiliary (ancillary)exciter system, the main-generator, the permanent-magnet auxiliary exciter and the DECS100 digital automatic voltage regulator perfectly matched the constitutes the high-quality and excellent-performance generator, which can form the generating set with internal combustion engine, steam turbine engine, steam turbine, water turbine and motor drive, and also can be the major facility or the standby equipment for ship power station, mobile power station, stationary electric power plant, emergency standby power station, small-sized hydropower station, and other power system.
If you want to know more information about this Siemens Sychronous Brushless High Voltage Generators(6303-4 2240kw/1500rpm), the high voltage can be adjusted to 3150V; 10500V; 6300V, please contact with us freely.
|
3150V/50HZ 750RPM |
6300V/50HZ 750RPM |
10500V/50HZ 750RPM |
|
Type |
Power KW |
Current
A |
Efficiency
% |
Type |
Power KW |
Current
A |
Efficiency
% |
Type |
Power KW |
Current
A |
Efficiency
% |
|
5001-8 |
450 |
103.1 |
92.2 |
5001-8 |
450 |
51.6 |
92.2 |
5001-8 |
280 |
19.2 |
89.3 |
|
5002-8 |
500 |
114.6 |
92.3 |
5002-8 |
500 |
57.3 |
92.3 |
5002-8 |
320 |
22.0 |
89.5 |
|
5003-8 |
560 |
128.3 |
92.5 |
5003-8 |
560 |
64.2 |
92.5 |
5003-8 |
400 |
27.5 |
90.4 |
|
5004-8 |
600 |
137.5 |
92.6 |
5004-8 |
600 |
68.7 |
92.6 |
5004-8 |
500 |
34.4 |
91.3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5601-8 |
640 |
147 |
93.6 |
5601-8 |
640 |
73.3 |
93.6 |
5601-8 |
640 |
44.0 |
92.0 |
|
5602-8 |
720 |
165 |
93.7 |
5602-8 |
720 |
82.5 |
93.7 |
5602-8 |
720 |
49.5 |
92.4 |
|
5603-8 |
800 |
183 |
93.8 |
5603-8 |
800 |
91.6 |
93.8 |
5603-8 |
800 |
55.0 |
92.7 |
|
5604-8 |
900 |
206 |
93.9 |
5604-8 |
900 |
103.1 |
93.9 |
5604-8 |
900 |
62.0 |
93.0 |
|
|
|
|
|
|
|
|
|
5605-8 |
1000 |
68.7 |
93.2 |
|
6301-8 |
1000 |
230 |
94.1 |
6301-8 |
1000 |
115 |
94.1 |
6301-8 |
1120 |
77 |
93.7 |
|
6302-8 |
1120 |
257 |
94.3 |
6302-8 |
1120 |
129 |
94.3 |
6302-8 |
1200 |
82.5 |
94.0 |
|
6303-8 |
1200 |
275 |
94.6 |
6303-8 |
1200 |
138 |
94.6 |
6303-8 |
1400 |
96.0 |
94.3 |
|
|
|
|
|
|
|
|
|
6304 |
1500 |
|
|
New Diesel Machinery Co., Ltd. Has more than ten years experience in complete engine, power generator set, engine pump sets and spare parts.
We are the OEM factory of China Cummins(such as B series engines, C series engines, L series engines, and N series, K series, ISBe, ISDe, ISCe, ISLe etc. ); DEUTZ/KHD(912 series, 913 series, 413/513 series, TBD series, and 1013 series, 1015series, D302 series and so on ), ISUZU(4JB1, 4JA1 etc ), PERKINS(1003, 1004 series), CATERPILLAR(3306 series ), SOFIM and so on. With years experience, we also can supply power unit for the engine, design according to customer's special needs.
Meanwhile we manufacture power generator set (marine generator set /industrial generator set ) &engine pump set for all the customer over the world.
Our Goal: Customer-oriented service and quality products.
Our Tenet: Honest, Professional, and innovation-seeking.
