Shipbuilding Use Intelligent DG Sets Test Dummy Load Bank
1.Product Introduction
Shipbuilding Use Intelligent DG Sets Test Dummy Load Bank
It is composed of outdoor resistor-inductance AC load bank,data collection system,electric control module,thermal module,control part etc.It can accurately detect Marine generator output power and load capacity,and assist shipyard in acceptance of vessel,mooring test,sea trial,load test,static voltage characteristic test, speed characteristic test,overload protection test,reverse power and reverse current protection test,and parallel operation test etc.
2.Shipbuilding Use Intelligent DG Sets Test Dummy Load Bank Testing Application
Large generator system testing in ocean engineering, drilling facilities,ship construction etc field
Factory testing for generator, static voltage characteristic test, speed characteristic test;
Marine generator overload protection test,parallel operation test,reverse power and reverse current protection test
Assist shipyard in mooring test,sea trial test
Assist with the acceptance of the vessel generator test
Eliminate the carbon deposition of generator
As the generator loading system
Periodic running test for standby generator
UPS inspection and maintenance
Ship battery charging/discharging system testing
The acceptance of new system and testing of servicing equipment
3.Shipbuilding Use Intelligent DG Sets Test Dummy Load Bank Working Environment
Altitute:≤2500m
Temperature:-10°C~50°C
Humidity:≤95%RH
Working Mode:Continuous work(>6hours continuous long-term work per day)
4.Shipbuilding Use Intelligent DG Sets Test Dummy Load Bank Technical Specifications
System Parameters (Single set) |
Rated Voltage/
Frequency |
AC400V/50Hz, 3 phases 4 wire
|
Installer Capacity |
When 400V,1600KW |
Step Load |
200,200,300,300,300,300KW 6steps |
Power Factor (PF) |
1 |
Load Tolerance |
5% |
Display Precision |
0.5 grade |
Control Power Supply |
AC380V/50Hz, 3 phases 4 wire |
Insulation |
F |
Max Protection Grade |
IP55 |
Working Mode |
Continuous |
Cooling |
Forced air cooling, Horizontal inlet air, Vertical cooling |

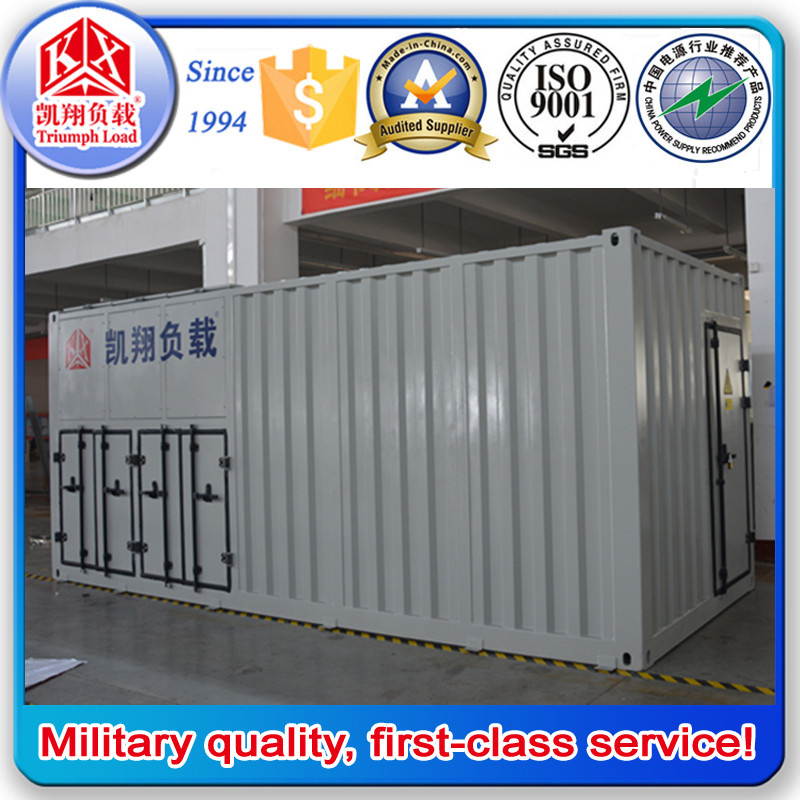

Casing Structure |
Standard 20 feet container, with a ladder to top |
Transportation |
Hoisting, there are lifting lugs in top of casing |
Dimension |
6058mm×2438 mm×2591mm |
Weight |
About 8000kg |
Working Environment Parameters |
Ambient Temperature |
-20ºC~+55ºC |
Relative Humidity |
≤95% |
Altitude |
≤2500 meters |
Atmospheric Pressure |
86~106kPa |
Working Temperature |
Temperature inside container: less than 35ºC,forced-air cooling |
5.Why choosing us
The earliest and most professional manufacturer of AC/DC Load Bank in China, dedicated to this industry for more than 20 years.
The most patent technology and scientific research awards gainer in China.
Advanced detection method and strict inspection procedure build the qualified quality.
Customized production meet the individual requirement.
Prompt delivery & excellent after sales service.
Cooperate with many well-known enterprise, offer OEM and ODM service to world famous brands.
Certified with China Classification Society (CCS) and ISO9001:2008 Quality Certificate.
Triumph Load is the first brand in the emergency power supply test & maintenance industry in China.
