1) Rated voltage: 400/230V
2) Rated output range: 50kw-440kw SHANGCHAI
3) Rated frequency: 50/60Hz
4) Rated speed: 1500r/min 1800r/min
5) Engine model : SHANGCHAI
6) Alternator: Stamford,SC(PURI LOGO); Starting method: electric motor starting
7) Cooling method: water cooling
8) 8hrs operation base tank
9) Water-cooled
10) Key start / auto start
11) Sound-proof / weather-proof canopy is optional
12) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires alternating current output

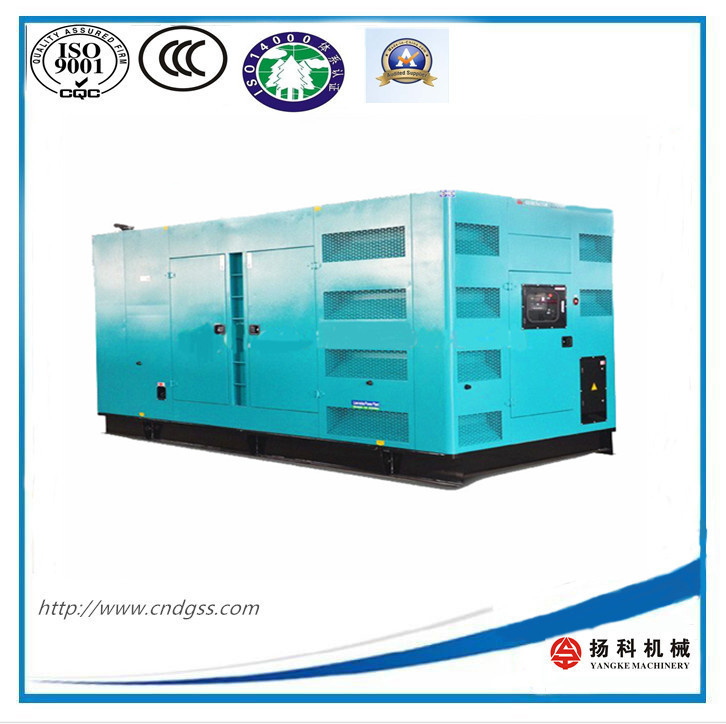

1. The main parameters of 825kva electrical silent generators |
The model of the unit: | QSS-660GF |
Power: |
660KW/825KVA |
Rated voltage: |
400V/230V |
Rated current: |
1188A(adjustable) |
Rated frequency: |
50Hz/60Hz |
The factor of rated power |
COS=0.8(lag) |
The regulating rate of steady voltage: |
≤±0.5% |
The regulating rate of instantaneous voltage: |
≤-10%/ +20% |
The time of steady voltage: |
≤1.5sec |
The waving rate of voltage: |
≤8% |
The regulating rate of steady frequency: |
≤3% |
The regulating rate of instantaneous frequency: |
≤10% |
The time of steady frequency: |
3sec |
The waving rate of frequency: |
≤0.25% |
The waste of fuel with full load: |
215g/kw/h |
size(mm): |
4465*1750*2140 |
weight: |
6500KG |
2.The main parameters of the 825kva electrical silent generators engine |
Brand: |
Shangchai |
Model: |
SC33W990D2 |
Type: |
four strokes, waste gas turbine boost,direct spurting type |
Cooling way: |
water cooling |
With Type: |
Inline type |
Bore *Trip : |
180mm*215mm |
Displacement |
32.8L |
Lubricating oil capacity: |
60L |
Cylinder: |
16cylinders |
Rotating speed: |
1500r/min or 1800r/min |
The regulation of rotating speed: |
Electronic speed |
Starting way: |
DC24V starting with electricity |
3.The main parameters of the alternator for the 825kva electrical silent generators |
Brand: |
ComAp,Stamford,Marathon |
Type: |
brushless (AVR automatic voltage regulating) |
The connecting way of the phase: |
three phases four lines |
Insulation degree: |
H degree |
Grading Protection: |
IP22/IP23 |
Packaging & Delivery
| Packaging Detail: | generator standard exporting package |
| Delivery Detail: | within 5-25working days after the deposit |
Company Information
Yangke Machinery Electric is a high-tech generator manufacturer which contains R&D, production and marketing together.
Our company not only establishes humanized modern enterprise with perfect quality management system and certification authority, but also equipped with international advanced facilities of R&D, manufacture and test. The concept of our company is to develop the best product, to provide the best service. We will spare no effect to serve our customer with products of high quality and after-sales service in a variety of ways.
With the help of the technical strength, our company has formed a structure of product series. The current main products are: QS series 8-3000KVA brushless alternators, which can be coupled with both domestic and foreign brands of diesel engines.
We only offer products using major engine brands such as Cummins, Perkins, Doosan, MTU Diesel/Mitsubishi etc. At YANGKE, we also customize the standard models to meet your unique requirements. Our Generators are also top of the line and come with base mounted fuel tanks, battery, battery rack and cables, vibration isolators between engine/diesel generator and base frame, a circuit breaker to protect the generator from overload and a two-wire auto start ready controls for automatic transfer switch operation. (Note: Automatic Transfer Switch Required for True Auto Operation).
Our products are sold to Southeast Asia, central Asia, the Middle East, Africa and South America.
Sales promises:
YANGKE power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested.
Warranty is according to our standard conditions :
a. 15months,counted on the day YANGKE sold to the first buyer;
b. one year after installation;
c.1000running hours(accumulated),subject to the earlier one.
Service and parts are available from YANGKE POWER or distributors in your location.
FAQ:
(1) Your company is factory or Trade Company?
Answer: We are professional low oil consumption diesel generator sets manufacturing factory.
(2) Your diesel generator power range?
Answer: Now we mainly produce QS series 8-3000kva brushless alternators.
(3) Which brand Electrical Generator you produce?
Answer: Now we produce USA Cummins brand Electrical Generator, Sweden Volvo Generator, Korea Doosan diesel generator, German Deutz Electrical Generator, and China local brands' generator.
(4) Where is your main market?
Answer: We mainly export Electrical Generators to southeast Asia, central Asia, the Middle East, Africa and South America
