1) Rated voltage: 400/230V
2) Rated output range: 50kw-660kw SHANGCHAI
3) Rated frequency: 50/60Hz
4) Rated speed: 1500r/min 1800r/min
5) Engine model : SHANGCHAI
6) Alternator: Stamford,SC(PURI LOGO); Starting method: electric motor starting
7) Cooling method: water cooling
8) 8hrs operation base tank
9) Water-cooled
10) Key start / auto start
11) Sound-proof / weather-proof canopy is optional
12) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires alternating current output

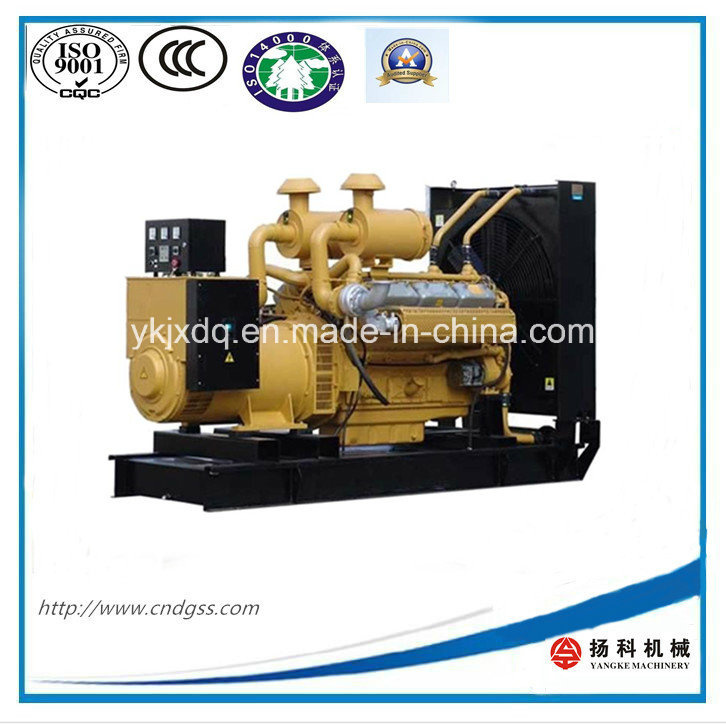

Genset Model | QSS50 |
Prime Power(50HZ) | 60KW /75KVA |
Standby Power(50HZ) | 68KW / 85KVA |
Frequency/Speed | 50Hz/1500rpm |
Voltage | 230V/400V |
Phases | Three phases, four wires |
ENGINE DATA
Engine Brand | Shanghai Diesel Engine |
Engine Model | SC4H95D2 |
Governor/Class | Mechanical |
Cylinder NO. | 4 |
Engine build | Line |
start-up method | 24V, electric |
Aspiration | Natural |
Cooling mode | Radiator cooled (enclose water) |
Bore and stroke | 105×124mm |
Compression ratio | 16.5:1 |
Displacement | 4.3L |
Engine Prime Power at 1500rpm | 58.8KWm |
Engine Standby Power at 1500rpm | 64.7KWm |
Lubricating oil consumption | 2.04g/KWh |
Exhaust air flow | 3.32m3/s |
Area of dissipation | 30.3m3 |
Filter air flow | 306m3/h |
Exhaust gas flow | 773m3/h |
Lubrication oil capacity | 22L |
Coolant capacity (without cooling equipment) | 16L |
Battery capacity | 150A/hr |
Fuel consumption rate | ≤232.5g/KWh |
Radiator model | 641B |
Steady speed regulation | 0.05 |
Instantaneous speed regulation | 0.08 |
Time required to steady speed | ≤7s |
Fuel type | #0 Diesel (Natural temperature) |
Filter system | Adopt whole changeable lubricating oil, fuel filter and air filter |
Exhaust system | Adopt industrial high efficiency silencer and flexible bellows |
Engine derating - altitude | Above the sea-level 1525m high, a fall of 4% from a rise of 300m. |
Engine derating - temperature | Above the ambient temperature 40 °C high, a fall of 2% from a rise of 11%. |
ALTERNATOR GENERAL DATA
Manufacturer / Model | Leroy-somer Electro-technique (Fuzhou) Company Ltd. |
Model | LSA43.2 S35 |
Output power | 42KW |
AVR model | R250 |
Number of phase | 3 |
Power factor (Cos Phi) | 0.8 |
Altitude | ≤ 1000 m |
Overspeed | 2250RPM |
Number of Pole | 4 |
Exciter type | Shunt |
Insulation class | H |
Voltage regulation | ±0.5% |
Sustained short circuit current | 300% (3 IN) : 10s |
Total harmonics (TGH/THC) | < 4 % |
Wave form : NEMA = TIF | < 50 |
Wave form : I.E.C. = THF | < 2% |
Bearing | single |
Coupling | Direct |
Packaging & Delivery
Packaging Detail: | generator standard exporting package |
Delivery Detail: | within 5-25working days after the deposit |
Company Information
Yangke Machinery Electric is a high-tech generator manufacturer which contains R&D, production and marketing together.
Our company not only establishes humanized modern enterprise with perfect quality management system and certification authority, but also equipped with international advanced facilities of R&D, manufacture and test. The concept of our company is to develop the best product, to provide the best service. We will spare no effect to serve our customer with products of high quality and after-sales service in a variety of ways.
With the help of the technical strength, our company has formed a structure of product series. The current main products are: QS series 8-3000KVA brushless alternators, which can be coupled with both domestic and foreign brands of diesel engines.
We only offer products using major engine brands such as Cummins, Perkins, Doosan, MTU Diesel/Mitsubishi etc. At YANGKE, we also customize the standard models to meet your unique requirements. Our Generators are also top of the line and come with base mounted fuel tanks, battery, battery rack and cables, vibration isolators between engine/diesel generator and base frame, a circuit breaker to protect the generator from overload and a two-wire auto start ready controls for automatic transfer switch operation. (Note: Automatic Transfer Switch Required for True Auto Operation).
Our products are sold to Southeast Asia, central Asia, the Middle East, Africa and South America.
Sales promises:
YANGKE power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested.
Warranty is according to our standard conditions :
a. 15months,counted on the day YANGKE sold to the first buyer;
b. one year after installation;
c.1000running hours(accumulated),subject to the earlier one.
Service and parts are available from YANGKE POWER or distributors in your location.
FAQ:
(1) Your company is factory or Trade Company?
Answer: We are professional low oil consumption diesel generator sets manufacturing factory.
(2) Your diesel generator power range?
Answer: Now we mainly produce QS series 8-3000kva brushless alternators.
(3) Which brand Electrical Generator you produce?
Answer: Now we produce USA Cummins brand Electrical Generator, Sweden Volvo Generator, Korea Doosan diesel generator, German Deutz Electrical Generator, and China local brands' generator.
(4) Where is your main market?
Answer: We mainly export Electrical Generators to southeast Asia, central Asia, the Middle East, Africa and South America
